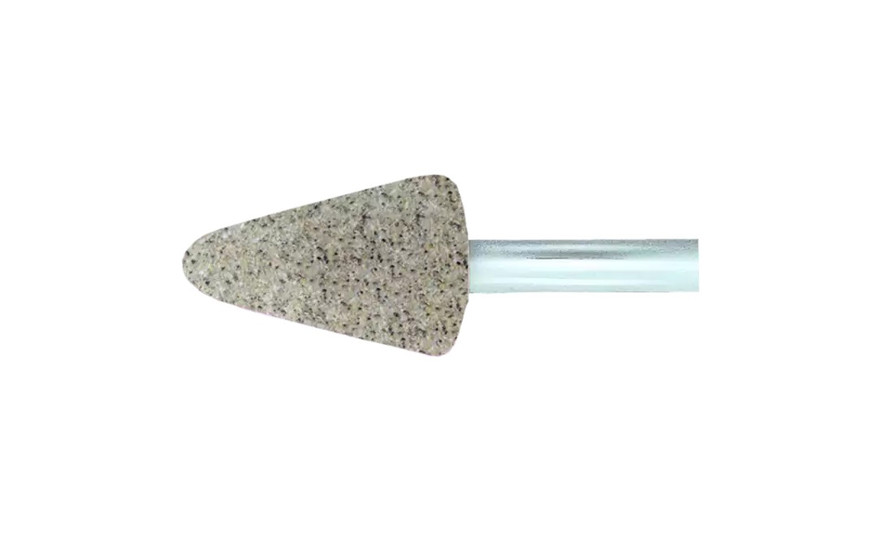

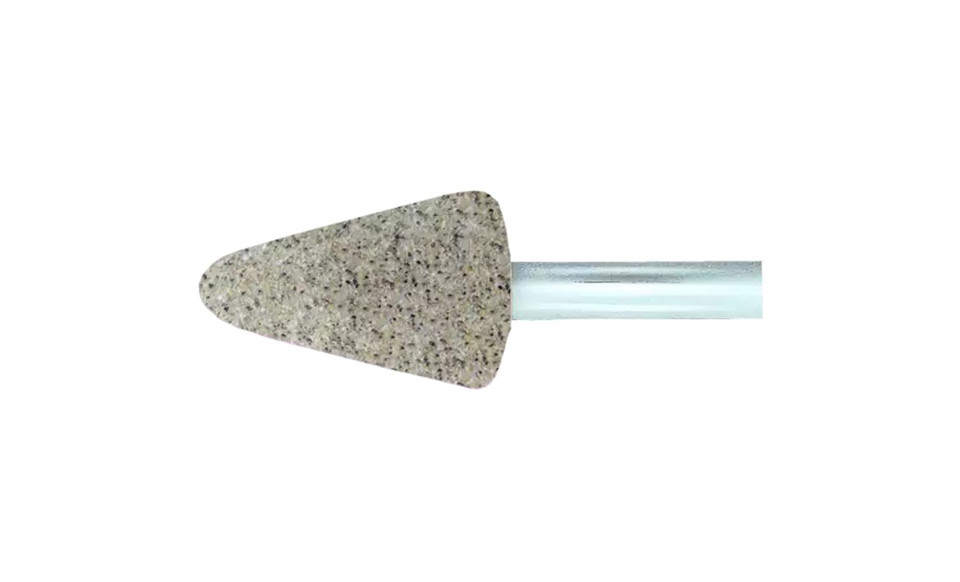

PFERD 35109 A5 Resin Mounted Point | 1/4" Shank | Aluminum Oxide 30 Grit | Inox Edge | 3/4" Point Diameter | Sold by Box of 10

PFERD provides a huge selection of mounted points that are vitrified-bonded and resinoid-bonded, in addition to various grinding instruments. These products come in a wide variety of grain types, grit sizes, hardness grades, and forms and are designed to fulfill specific grinding application needs. The Pferd 35109 A5 Vitrified Mounted Point is produced on automated, cutting-edge production lines that adhere to strict tolerances, high requirements of dimensional accuracy and stability, and consistent quality. The INOX EDGE mounted point is for edge grinding on stainless steel (INOX). Applications include weld dressing on fillet welds on stainless steel components, removing burrs on molded parts made of high-temperature-resistant alloys, removing burrs on stainless steel Castings, and grinding champers in preparation for welding stainless steel profiles. Series A mounted points are generally used on larger, stainless steel components, such as in container construction. Due to the special shapes of series A mounted points, it is possible to grind in a variety of contours. The applications range from grinding in hard-to-reach areas to machining bores and small holes as well as smoothing.

Type: Mounted Point | Material: Inox Edge | Shape: A5 | Point Outer Diameter (in.): 3/4 | Point Width (in.): 1-1/8 | Recom. RPM 1/2 Overhang: 45000 | Max. RPM 1/2 Overhang: 45000 | Max. RPM 1 Overhang: 33750 | Shank Dia. (in.): 1/4 | Shank Length (in.): 1-1/2 | Grit Size: 30 | Box of: 10

Features:

• Aluminum Oxide grain are universally recommended for many materials
• Offer maximum economic value resulting
• 30 Grit has high-performance

Looking for more information about Pferd Abrasives? Click here to view the Catalog

For help selecting the correct Abrasive for your assembly application, call (800) 608-5210 or email info@intlairtool.com
