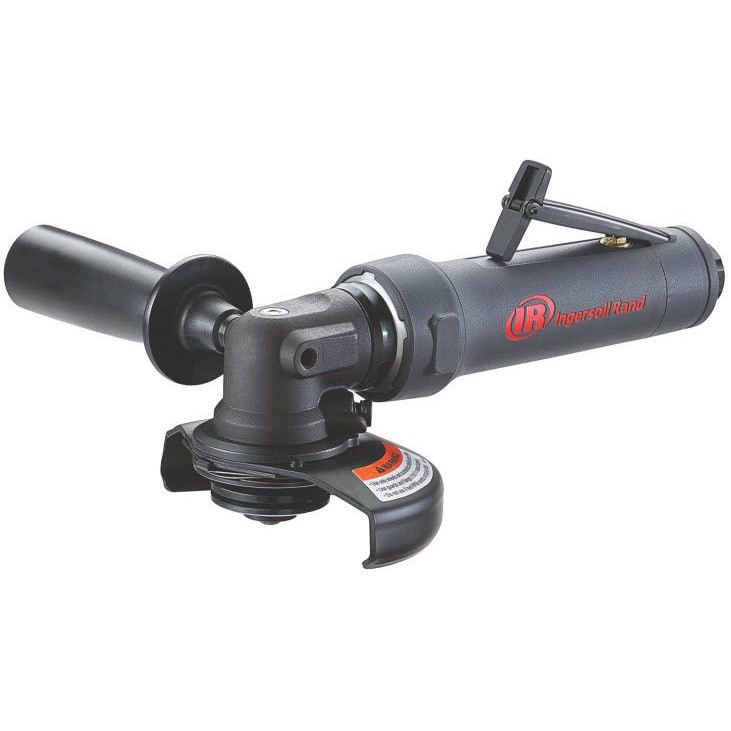

Designed for professional grinding, cutting, and surface preparation applications, the Ingersoll Rand M2A135RP64 M2 Series Angle Grinder delivers dependable pneumatic performance with a 1 HP motor, 13,500 RPM free speed, and a 3/8"-24 spindle thread for compatibility with matching abrasive wheels and accessories. Its right-angle configuration provides improved access and control during metalworking tasks, making it a practical choice for fabrication, industrial maintenance, repair, and finishing applications requiring a compact yet powerful pneumatic grinder.
The M2A135RP64 features a rear exhaust design that helps direct airflow away from the operator and work surface during operation. As part of the Ingersoll Rand M2 Series grinder lineup, this angle grinder combines a 1 HP motor with a durable pneumatic construction designed for reliable performance in demanding industrial environments.
Type: Pneumatic Angle Grinder | Series: M2 Series | Model: M2A135RP64 | Motor Power: 1 HP | Free Speed: 13,500 RPM | Spindle Thread: 3/8"-24 | Exhaust: Rear Exhaust | Configuration: Angle
Features:
- 1 HP pneumatic motor provides dependable power for grinding and finishing operations.
- Angle-head design improves accessibility and control when working on complex parts and assemblies.
- 3/8"-24 spindle thread accepts compatible abrasive wheels and accessories.
- 13,500 RPM free speed supports efficient material removal and surface preparation.
- Rear exhaust design directs airflow away from the operator and work area.
- M2 Series construction supports professional fabrication, maintenance, and industrial applications.
Applications:
- Grinding and finishing weld areas in fabrication environments.
- Surface preparation before coating, painting, or assembly.
- Industrial maintenance and repair operations requiring pneumatic grinding power.
- Metal finishing tasks involving machinery, components, and assemblies.
- General-purpose grinding applications in professional workshops.
FAQs:
- Q: What accessories fit the M2A135RP64?
A: This grinder uses a 3/8"-24 spindle thread and accepts compatible abrasive accessories designed with the matching thread specification. - Q: What is the advantage of an angle grinder configuration?
A: The right-angle design provides improved access and control when working on surfaces where a straight grinder may be difficult to position. - Q: What applications is the M2A135RP64 designed for?
A: It is designed for professional grinding, finishing, and surface preparation tasks in industrial and fabrication environments. - Q: Why is rear exhaust useful on a pneumatic grinder?
A: Rear exhaust helps direct discharged air away from the operator and work surface during operation.
| SKU | Power (hp) | Rated Speed (rpm) | Exhaust | Output | Abrasive Type | Weight lb (kg) | Overall Length in (mm) | Height Over Spindle End in (mm) | cfm (at free speed) |
|---|---|---|---|---|---|---|---|---|---|
| M2 Series Angle Grinders | |||||||||
| M2A090RP95 | 1.0 | 9,000 | Rear | M14 THD | Wire Brush – 5" Max | 3.56 (1.62) | 9.29 (236) | 3.39 (86) | 22 |
| M2A120RG4 | 1.0 | 12,000 | Rear | Collet (1/4" and 6 mm) | Burr | 3.56 (1.62) | 8.94 (227) | 3.28 (83) | 17 |
| M2A120RP945 | 1.0 | 12,000 | Rear | M14 THD | 4-1/2" X 1/4" Wheel – Type 27 | 3.76 (1.71) | 9.29 (236) | 3.39 (86) | 17 |
| M2A120RP1045 | 1.0 | 12,000 | Rear | 5/8"-11 THD | 4-1/2" X 1/4" Wheel – Type 27 | 3.76 (1.71) | 9.29 (236) | 3.39 (86) | 17 |
| M2A120RP95 | 1.0 | 12,000 | Rear | M14 THD | 5" X 1/4" Wheel – Type 27 | 3.89 (1.77) | 9.29 (236) | 3.39 (86) | 17 |
| M2A120RP105 | 1.0 | 12,000 | Rear | 5/8"-11 THD | 5" X 1/4" Wheel – Type 27 | 3.89 (1.77) | 9.29 (236) | 3.39 (86) | 17 |
| M2A135RP64 | 1.0 | 13,500 | Rear | 3/8"-24 THD | 4" X 1/4" Wheel – Type 27 | 3.72 (1.69) | 9.29 (236) | 3.39 (86) | 22 |
| M2A180RG4 | 1.0 | 18,000 | Rear | Collet (1/4" and 6 mm) | Burr | 3.56 (1.62) | 8.94 (227) | 3.28 (83) | 25 |
Looking for more information about the Ingersoll Rand Grinder? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Grinders for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Angle Grinder
- Power (hp)
- 1
- RPM
- 13500
- Output
- 3/8" - 24 Thread
- Wheel Size (in.)
- 4 x 1/4
- Exhaust
- Rear
- Length (in.)
- 9.29
- Height Over Spindle (in.)
- 3.39
- Air Consumption (CFM)
- 22
