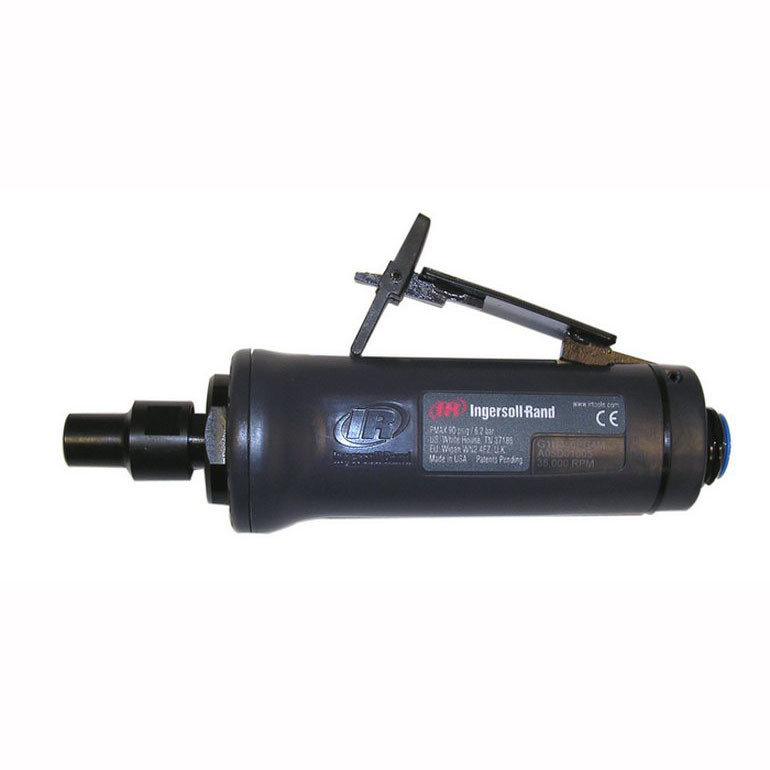

Ingersoll Rand G1H200FG4 G Series Horizontal Grinder | 0.4 HP | 20,000 RPM | 1/4" Collet | Front Exhaust

For high-speed deburring, edge cleanup, and localized material removal with straight-line accessory access, the Ingersoll Rand G1H200FG4 G Series Horizontal Grinder combines a 0.4 HP pneumatic motor with 20,000 RPM free speed and a 1/4-inch collet. The horizontal configuration keeps compatible shank-mounted accessories aligned with the tool body, supporting controlled work on openings, edges, grooves, and accessible internal surfaces where a direct approach to the workpiece is preferred.

The Ingersoll Rand G1H200FG4 uses a collet to grip compatible carbide burrs, mounted points, and other 1/4-inch shank accessories selected for the material and required finish. Its front exhaust directs discharged air toward the accessory end of the tool, making tool orientation and airflow management important when working around loose debris or contaminants. The combination of 20,000 RPM speed, compact pneumatic power, and straight-line accessory positioning supports repeated grinding and finishing work in fabrication, maintenance, repair, and production environments.

Type: Horizontal Grinder | Model: G1H200FG4 | Series: G Series | Configuration: Horizontal | Motor Power: 0.4 HP | Free Speed: 20,000 RPM | Collet Size: 1/4" | Exhaust: Front

Features:

• 0.4 HP pneumatic motor supplies power for deburring, localized grinding, edge finishing, and surface-preparation operations.
• 20,000 RPM free speed supports productive material removal with compatible shank-mounted accessories rated for the tool's operating speed.
• 1/4-inch collet accepts properly matched carbide burrs, mounted points, and other accessories with compatible shank dimensions.
• Horizontal configuration provides straight-line accessory alignment for working on openings, edges, grooves, and accessible internal surfaces.
• Front exhaust directs discharged air toward the accessory end of the grinder and should be considered when positioning the tool around debris and the workpiece.
• Collet-mounted accessory system allows tooling to be selected according to the workpiece material, geometry, and required finish.
• Compact speed-and-power configuration supports repetitive grinding, deburring, and finishing work with compatible mounted accessories.

Made in USA:

Applications:

• Metal fabrication — deburring cut edges, cleaning openings, and removing localized material from fabricated parts and assemblies.
• Foundry and casting cleanup — removing flash, parting lines, and small surface imperfections with compatible carbide burrs or mounted abrasives.
• Industrial maintenance and MRO — cleaning machinery components, preparing repair areas, and refining localized surfaces during equipment service.
• Automotive and transportation repair — finishing brackets, housings, ports, and components where straight-line grinder access suits the work area.
• General manufacturing — performing repetitive deburring, edge finishing, and localized material removal on production components.

FAQs:

• Q: What accessories can be used with the Ingersoll Rand G1H200FG4?
  A: Use compatible accessories with a 1/4-inch shank, such as properly rated carbide burrs and mounted points. Confirm the accessory dimensions, material suitability, and maximum operating-speed rating before use.
• Q: What is the advantage of the horizontal configuration?
  A: The horizontal layout keeps the mounted accessory aligned with the tool body, providing a direct approach to openings, edges, grooves, and accessible internal surfaces where straight-line tool access is useful.

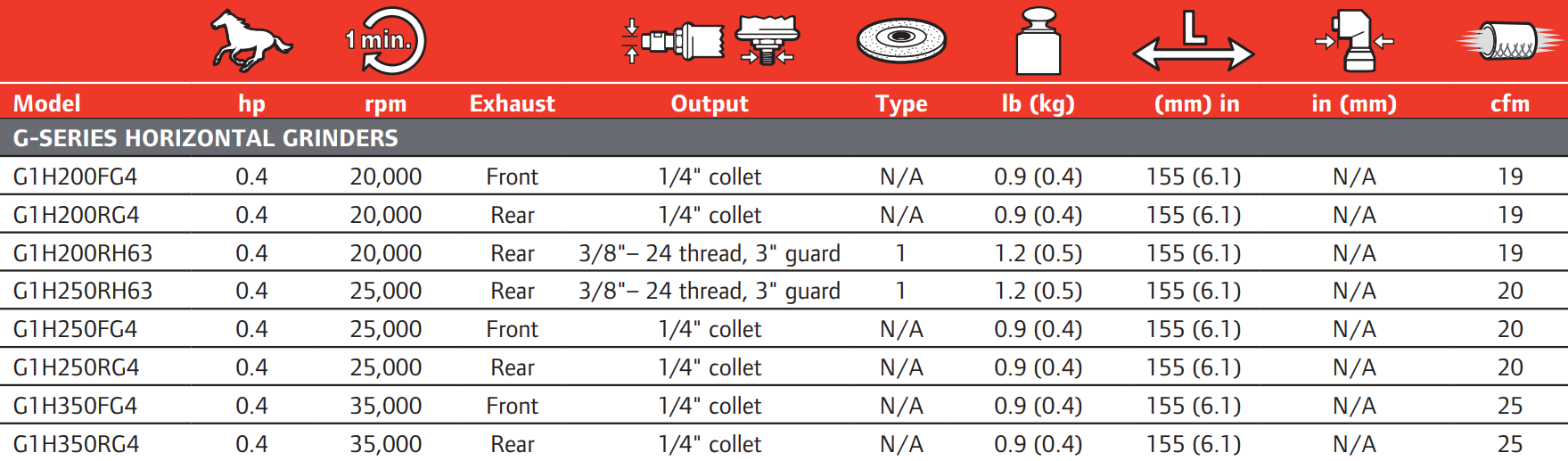

• Q: How does the G1H200FG4 differ from the G1H200RG4?
  A: Both supplied models operate at 20,000 RPM with a 0.4 HP motor, 1/4-inch collet, and horizontal configuration. The G1H200FG4 uses front exhaust, while the G1H200RG4 uses rear exhaust.
• Q: Can conventional grinding wheels be installed on this model?
  A: No. This grinder uses a 1/4-inch collet for compatible shank-mounted accessories and is not configured with a threaded spindle and guard for conventional grinding wheels.
• Q: What should be considered with the front exhaust configuration?
  A: Front exhaust directs discharged air toward the accessory end of the tool. Position the grinder and workpiece so airflow does not unnecessarily disturb loose debris or direct contaminants toward the operator or nearby personnel.
