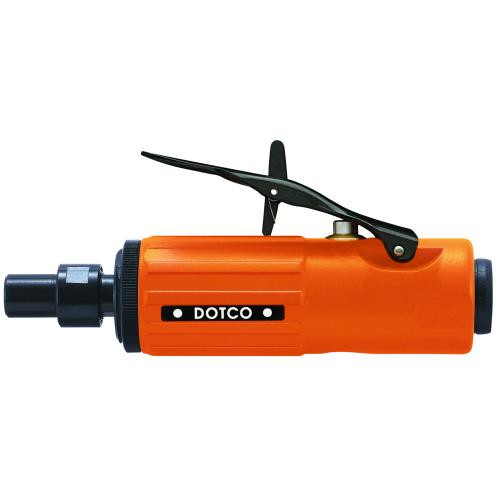

Dotco 10L2002-36 Inline Die Grinder | 10-20 Series | 0.6 HP | 18000 RPM | 1/4" Collet | Front Exhaust

When you need a compact inline grinder for die work, casting cleanup, and controlled deburring, the Dotco 10L2002-36 Inline Die Grinder provides 0.6 HP of pneumatic power with an 18,000 RPM free speed for use with compatible carbide burrs and mounted wheels. The inline body gives the operator a straight approach to the workpiece, while the 1/4" collet supports common industrial burr and mounted-wheel shanks used for shaping, blending, and edge cleanup.

This 10-20 Series model uses a front exhaust configuration, a lock-off lever throttle, and an aluminum housing to balance power, control, and handling in daily material-removal work. Its catalog-rated abrasive capacity is 3/4" carbide burr and 1-1/2" mounted wheel, giving buyers a clear accessory range for deburring, die/mold touch-up, small casting cleanup, and localized surface blending.

Type: Inline Die Grinder | Series: 10-20 Series | Model: 10L2002-36 | Power: 0.6 HP (0.45 kW) | Free Speed: 18,000 RPM | Collet Size: 1/4" | Collet Guard: 300 Series | Throttle Type: Lock-Off Lever | Exhaust: Front | Abrasive Capacity: 3/4" Carbide Burr, 1-1/2" Mounted Wheel | Housing: Aluminum | Weight: 1.4 lb (0.64 kg) | Length: 6.6" (168 mm) | Air Inlet Size: 1/4" | Air Pressure: 90 PSI (620 kPa) | Minimum Hose I.D.: 5/16" (7.9 mm) | Standard Equipment: Applicable collet, collet wrenches

Features:

• 0.6 HP motor supports controlled material removal with compatible carbide burrs and mounted wheels.
• 18,000 RPM free speed provides a balanced speed range for deburring, blending, and small-area finishing work.
• 1/4" collet accepts common die grinder accessories within the tool’s catalog-rated abrasive capacity.
• 300 Series collet guard configuration matches the -36 termination listed for this model family.
• Lock-off lever throttle helps reduce unintended starts by requiring deliberate lever engagement before operation.
• Front exhaust configuration routes exhaust at the tool front instead of through a rear exhaust hose setup.
• Aluminum housing keeps the tool compact and manageable for bench work, die/mold cleanup, and close hand control.
• Standard equipment includes the applicable collet and collet wrenches for setup and accessory changes.

Made in USA:

Applications:

• Die and mold work: Touching up tight contours, refining parting lines, and using carbide burrs for controlled stock removal.
• Machine shops and fabrication: Deburring drilled holes, easing sharp edges, and cleaning small metal parts after machining or welding.
• Foundry and casting cleanup: Removing flash, smoothing localized casting imperfections, and blending small surfaces with mounted wheels.
• Industrial maintenance and MRO: Preparing small repair areas, cleaning brackets, and reworking worn or burred components at the bench.
• Automotive, fleet, and garage repair: Detail grinding on housings, brackets, and metal repair parts when a compact 1/4" collet die grinder is appropriate.

FAQs:

• Q: What accessories can be used with the Dotco 10L2002-36?
  A: This model is listed for a 1/4" collet with an abrasive capacity of 3/4" carbide burr and 1-1/2" mounted wheel. Always confirm the accessory shank size, rated speed, and application before use.
• Q: What does front exhaust mean on this die grinder?
  A: Front exhaust means exhaust air exits at the front of the tool rather than through a rear exhaust or overhose-ready configuration. This matters when comparing tool layout, hose routing, and where exhaust air will be directed during use.
• Q: What air pressure and hose size does this grinder require?
  A: The tool performance is rated at 90 PSI (620 kPa). The catalog lists a minimum hose I.D. of 5/16" (7.9 mm) for this 10-20 Series configuration.
• Q: Does the tool include the collet and wrenches?
  A: Yes. The listed standard equipment includes the applicable collet and collet wrenches.
• Q: Can this grinder be used with cut-off wheels?
  A: This model is cataloged for carbide burrs and mounted wheels. For cut-off wheels, use a properly guarded cut-off tool rated for the wheel size and speed.
