Cleco 22M5440-50 Non-Reversible Rotary Vane Air Motor | 0.9 HP | 4,700 RPM | 4 (ft-lbs) Stall Torque | Rear Exhaust

When a machine, fixture, or automated drive needs compact pneumatic rotation without reverse operation, the Cleco 22M5440-50 provides a 22 Series non-reversible rotary vane air motor for single-direction drive applications. Its 0.9 HP output gives equipment builders useful pneumatic power in a compact motor format, while the 4,700 RPM free speed supports faster rotary motion for compatible tooling, light machine drives, and production equipment where speed is a primary requirement.

The rotary vane design uses compressed air to move internal vanes around a rotor, converting air pressure into smooth mechanical rotation with quick start/stop response. A 4 ft-lbs stall torque rating identifies the torque available at stall, helping buyers compare whether the motor can tolerate the load before it stops under resistance. Rear exhaust directs spent air away from the front of the motor, which is helpful when the unit is installed in a fixture, guarded machine, or enclosed work area.

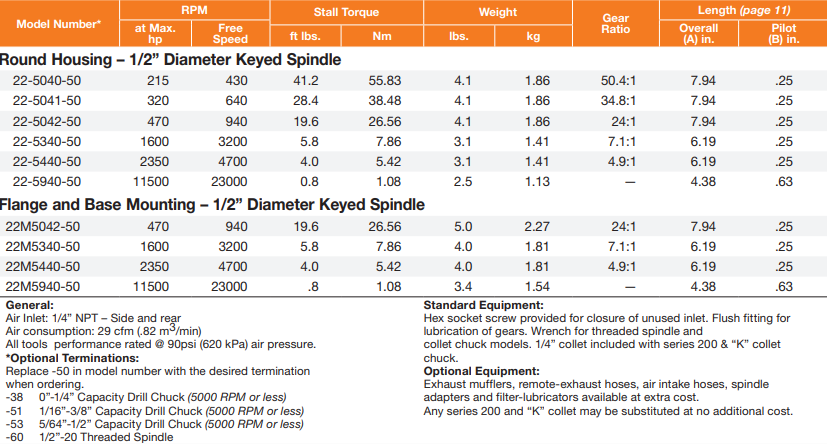

Type: Rotary Vane Air Motor | Series: 22 Series | SKU: 22M5440-50 | Configuration: Non-Reversible | Power: 0.9 HP | Free Speed: 4,700 RPM | Stall Torque: 4 ft-lbs | Exhaust: Rear

Features:

• Non-reversible rotary vane air motor configuration supports single-direction pneumatic drive applications.
• 4,700 RPM free speed provides faster rotary output for compatible machine drives, fixtures, and production equipment.
• 0.9 HP motor output gives buyers a clear power reference when comparing 22 Series air motor options.
• Rotary vane construction delivers smooth compressed-air-powered rotation with fast response to air supply control.
• Rear exhaust routes discharge air away from the working end of the motor, helping simplify installation in fixtures or enclosed machine spaces.
• Air-powered operation can stall under load without the same burnout risk associated with an overloaded electric motor, when properly applied within system limits.
• Compact 22 Series format supports integration into OEM equipment, automation projects, and maintenance replacement applications.

Made in USA:

Applications:

• OEM machinery and automation: powering single-direction rotary motion in production fixtures, indexing equipment, and custom pneumatic systems.
• Industrial maintenance and MRO: replacing compatible non-reversible air motors where speed, exhaust direction, and power rating match the original installation.
• Conveying and transfer equipment: driving light mechanical motion in systems that require continuous or intermittent pneumatic rotation.
• Packaging and assembly equipment: supporting fast rotary functions in stations where compressed air is already available.
• Test fixtures and special machines: providing compact air motor power for jigs, tooling, and process equipment built around single-direction motion.

FAQs:

• Q: What does non-reversible mean on the Cleco 22M5440-50?
  A: Non-reversible means the motor is intended to run in one direction only. Confirm the required shaft rotation direction before ordering, especially when replacing an existing air motor.
• Q: Is 4,700 RPM considered fast for an air motor?
  A: Yes, compared with many geared low-speed air motors, 4,700 RPM is a higher free-speed rating. Buyers should confirm that the driven component, coupling, guard, and process are suitable for this speed.
• Q: What does stall torque mean?
  A: Stall torque is the torque level at which the motor stops turning under load. Air motors can typically tolerate stalling better than electric motors, but the application should still be sized correctly to avoid poor performance or excessive air use.
• Q: Why choose rear exhaust?
  A: Rear exhaust sends discharge air toward the back of the motor instead of the working end. This can help keep air blast away from the driven component, operator area, or fixture face depending on how the motor is mounted.
• Q: Can this motor replace an electric motor?
  A: It may be suitable where compressed air is available and the machine requirements match the Cleco motor’s speed, power, torque, rotation, mounting, and shaft configuration. Verify all mechanical and air-system details before using it as a replacement.
