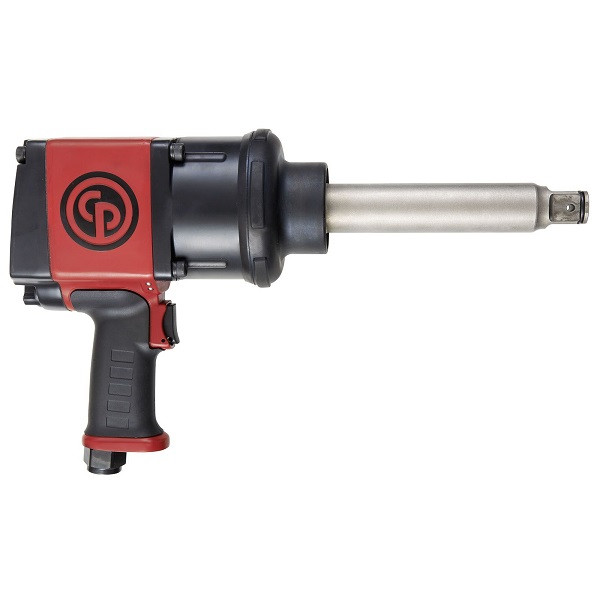

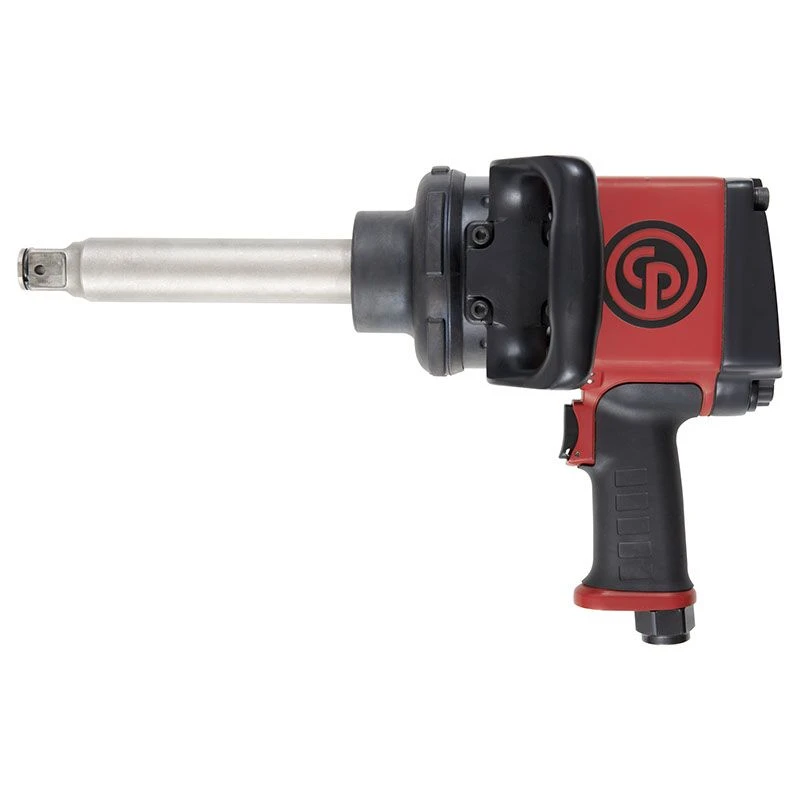

Chicago Pneumatic CP7776-6 Pistol Grip Impact Wrench delivers smooth operation and extended durability. It is a durable, high-torque, and powerful tool ideal for all maintenance applications and general repairs. It features pin pinless closed, reinforced rocking dog clutch mechanism for improved performance. The regulator is integrated in the forward/reverse knob, with 3 positions of power setting in both directions, giving the operator convenient control of the forward/reverse power. It also has and socket retainer ring combined with h hole retainer. It comes with a 6-inch (152 mm) extended anvil. The 4-position rotatable TPR handle & side handles offer ultimate operator comfort. With 1770 ft-lb- 2400 Nm of maximum torque in reverse, this impact wrench provides full power and a working torque range of 704 to 1530 ft./lbs. This product weighs 24.7 lbs, measures 11.4 inches long, and has a 1-inch output drive.

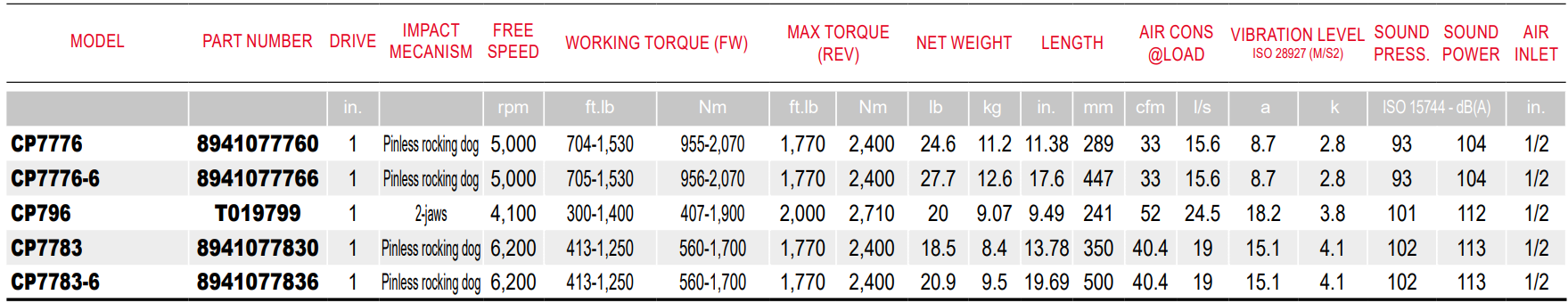

Type: Impact Wrench | Drive Size (in.): 1 | Impact Mechanism: Pinless rocking dog | Free Speed (RPM): 5000 | Working Torque Range (fwd) (ft-lbs): 705-1,530 | Working Torque Range (fwd) (Nm): 956-2,070 | Max Reverse Torque (ft-lbs): 1770 | Max Reverse Torque (Nm): 2400 | Length (in.): 17.6 | Length (mm): 447 | Air Consumption @ Load (CFM): 33 | Air Consumption @ Load (l/s): 15.6 | Vibration Level (a): 8.7 | Vibration Level (k): 2.8 | Sound Pressure (dbA): 93 | Sound Power (dbA): 104 | Air Inlet Size (in.): 1/2 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10
Features:
- 2400 Nm – 1770 ft.lbs maximum torque in reverse
- Pin-less closed, reinforced rocking dog clutch mechanism
- TPR handle & side handle - being able to rotate in 4 positions
- The regulator is integrated in the forward/reverse knob with a 3-position power setting in both directions.
- Rubber bumper protecting both applications & tool (included)
- Socket retainer ring combined with a hole retainer
- Handle being able to rotate in 4 positions for ultimate operator comfort
- Angled down exhaust blows air away from work workplace
Benefits:
- High Torque & Powerful
- Durable
- Comfort & Great Handling
- Useful
- Safe
Looking for more information about Chicago Pneumatic Wrench? Click here to view the Catalog.
For help choosing the correct Chicago Pneumatic Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com
