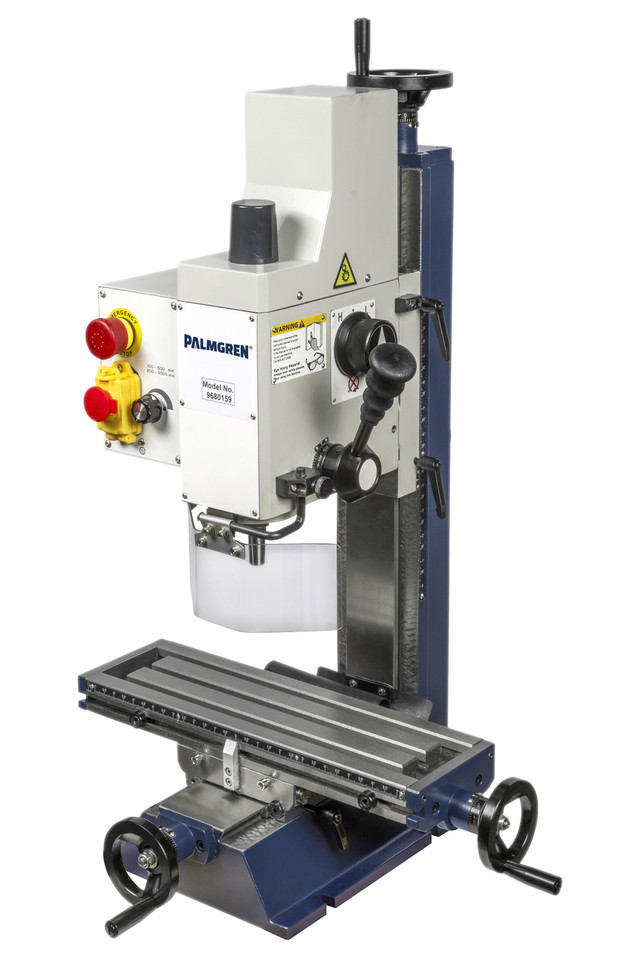

Palmgren 9680159 Variable Speed Gear Head Milling Machine | 5/8' HP | 13-1/2" Swing

Palmgren 9680159 Variable Speed Gear Head Milling Machine delivers precision, versatility, and smooth operation in a compact bench-top design. Powered by a durable 5/8 HP brushless DC motor, this machine offers a variable speed range from 100 to 3,000 RPM, providing consistent torque across all speeds for high-quality results in drilling, milling, and face milling tasks. Its 13-1/2" swing, rigid column construction, and precision-ground dovetail ways ensure stability and accuracy for even the most demanding projects. The head tilts ±90° for flexible cutting angles, while the heavy-duty spindle supported by tapered roller bearings maintains 0.0005" accuracy at the nose. Whether you're working on prototypes, small parts, or custom metalwork, this gear head mill is engineered for performance, durability, and safety. Palmgren 9680159 Milling Machine combines precision engineering and robust construction in a user-friendly design, making it a top choice for machinists who demand accuracy without sacrificing space or flexibility.

Type: Milling Machine | Cross Slide Travel (in.): 6-3/8 | End Milling Capacity (in.): 13/16 | Face Milling Capacity (in.): 2-1/2 | Head: Gear Driven | Longitudinal Travel (in.): 8-21/32 | Maximum Spindle to Table (in.): 8-1/4 | Milling Machines Type: Gear Head | Motor (HP): 5/8 | Operating Pressure (PSI): Manual | Optional Accessories: Item # 9670107 Heavy duty floor stand | Overall Dimensions (in.): 19 x 18 x 33 | Phase: Single | Speed Range (RPM): 100 - 3000 | Spindle: 2MT with 3/8-16 Draw Bar | Spindle Taper: 2MT | Spindle Travel (in.): 2 | Swing (in.): 13-1/2 | Table Dimensions (in.): 15-3/4 x 4-3/4 | Voltage: 115

Features:

• Rigid box column with hardened and ground hand scraped dovetail ways provide accurate head positioning with minimum deflection and vibration
• All gear drive transmission with 2 step gear box
• The milling head can be tilted right or left up to 90 degrees
• Precision machine tool spindle equipped with taper roller bearings and a spindle concentricity of 0 0005" at the spindle nose
• Cross slide table is precision ground with t-slots, adjustable limit stops, scale and two metal adjusting hand wheels
• Interlocking spindle safety guard
• Draw bar
• Safety electrical system with emergency stop button and 24 volts at all the switches
• Equipped with: Halogen work light, depth stop, interlocking spindle safety guard and draw bar

Looking for more information about Palmgren Milling Machines? Click here to view the Catalog.

Need help selecting the correct Palmgren Milling Machine for your application? Please call (800) 608-5210 or email info@intlairtool.com
