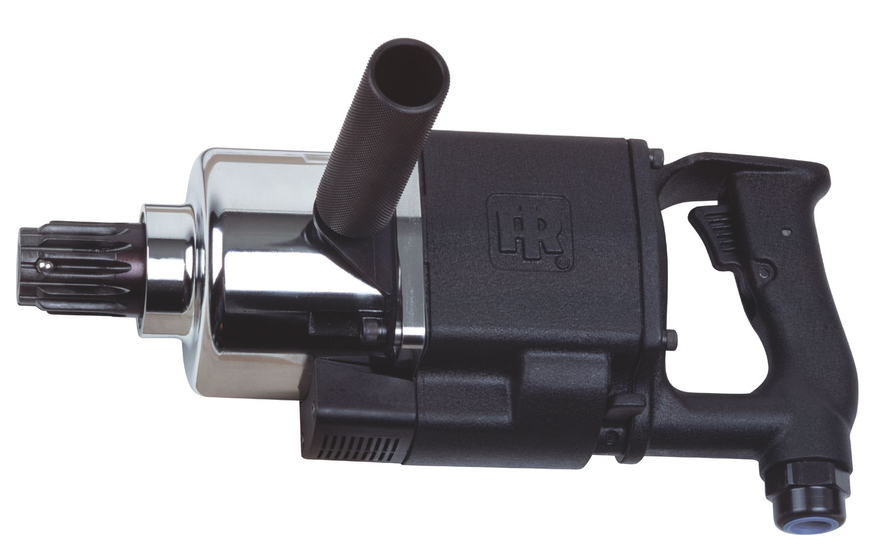

Ingersoll Rand 2940A1 Heavy Duty Air Impact Wrench | No. 5 Drive Size | 5000 RPM | 2000 (ft-lbs) Max Torque

Ingersoll Rand 2940A1 Heavy Duty Air Impact Wrench is configured with a No. 5 drive for high-torque bolting work involving large threaded fasteners and compatible drive accessories. With a 5,000 RPM free speed and up to 2,000 ft-lbs of maximum torque, this pneumatic impact wrench is suited to substantial fastening and removal tasks in industrial maintenance, heavy equipment service, and production environments.

The 2940A1 gives technicians a high-output pneumatic option for applications where smaller impact tools do not provide the required torque capacity. Its No. 5 drive configuration is a key compatibility consideration, so sockets and accessories should be selected specifically for that drive type rather than assumed to fit conventional square-drive tools. The 5,000 RPM free speed supports efficient fastener rundown, while the 2,000 ft-lbs maximum torque rating provides the force required for substantial bolted connections.

Type: Air Impact Wrench | Model: 2940A1 | Drive Size: No. 5 | Free Speed: 5,000 RPM | Maximum Torque: 2,000 ft-lbs

Features:

• No. 5 drive configuration accommodates compatible tooling for large industrial bolting applications.
• 2,000 ft-lbs maximum torque provides substantial output for tightening and removing large threaded fasteners.
• 5,000 RPM free speed supports rapid fastener rundown before increased resistance brings the impact action into play.
• Pneumatic operation suits maintenance and production environments equipped with a properly sized compressed-air system.
• Impact operation delivers repeated rotational blows to the fastener rather than applying continuous direct reaction torque.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Industrial maintenance and MRO: tightening and removing large fasteners on substantial mechanical assemblies and plant equipment.
• Heavy equipment service: working on large bolted connections that require a compatible No. 5 drive setup.
• Manufacturing operations: supporting high-torque pneumatic fastening tasks in production and assembly environments.
• Machinery repair: servicing large threaded connections on equipment and mechanical systems.
• Field maintenance: handling high-torque fastening work where an adequately sized compressed-air supply is available.

FAQs:

• Q: What drive size does the Ingersoll Rand 2940A1 use?
  A: The 2940A1 is listed with a No. 5 drive. Use sockets and accessories specifically compatible with this drive configuration.
• Q: Is a No. 5 drive the same as a 1" square drive?
  A: No. The supplied manufacturer catalog identifies this model as a No. 5 drive version, so it should not be treated as a conventional 1" square-drive tool unless separate manufacturer documentation confirms that compatibility.
• Q: What is the maximum torque of the 2940A1?
  A: The supplied product data lists a maximum torque rating of 2,000 ft-lbs.
• Q: What does 5,000 RPM mean for this impact wrench?
  A: The 5,000 RPM figure is the listed free speed, meaning the tool's rotational speed when operating without a fastening load.
• Q: What should be checked before ordering this model?
  A: Confirm that the No. 5 drive matches the sockets or accessories required for the job and that the available compressed-air system is suitable for the tool.

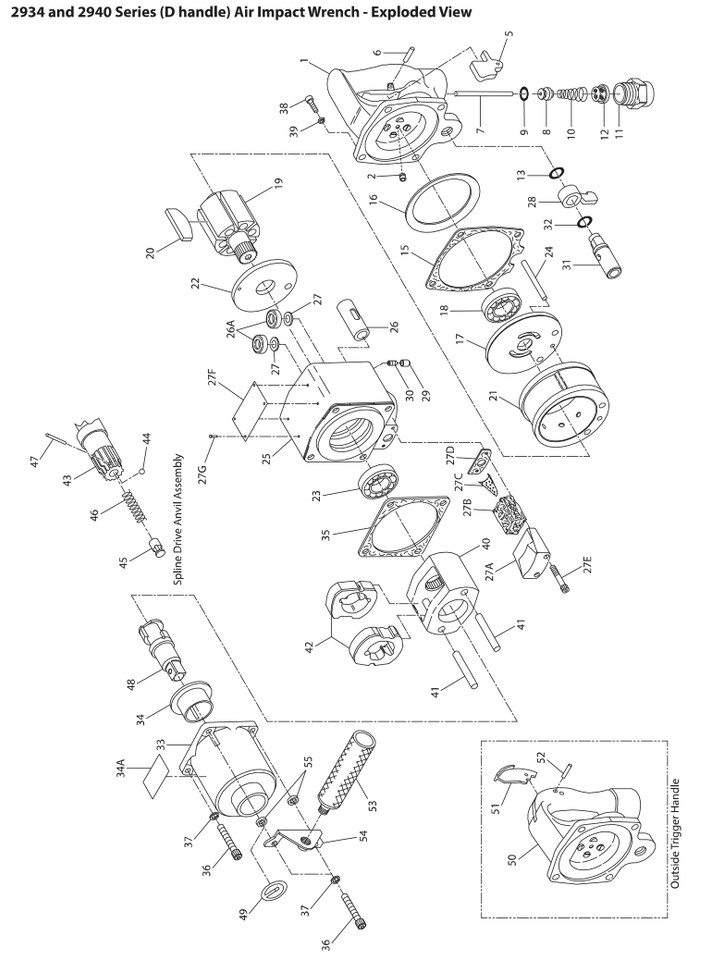

Ingersoll Rand 2940A1 Impact Wrench Parts List

Looking for more information about Ingersoll Rand Impact Wrench? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Air Impact Wrenches, please call (800) 608-5210 or email info@intlairtool.com
