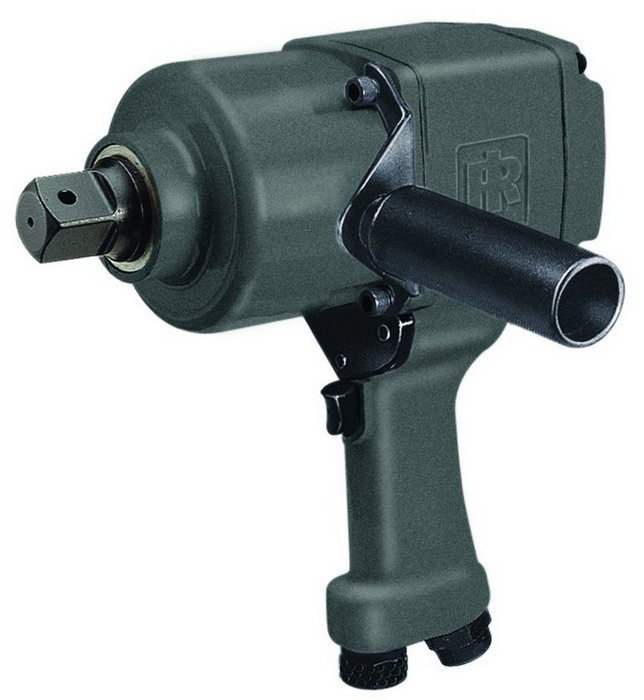

Ingersoll Rand 293 Pistol Grip Air Impact Wrench | 1" Square Drive | 2,000 (ft-lbs) Max Torque

Built for vehicle repair, heavy machinery service, fleet maintenance, and large fastener work, the Ingersoll Rand 293 Pistol Grip Air Impact Wrench delivers 2,000 ft-lbs of max torque through a 1" square drive. Its twin hammer impact mechanism provides repeated, balanced impact blows for strong torque transfer, making this tool a practical choice for removing and installing large bolts where smaller impact wrenches do not provide enough fastening power.

The 293 pairs a finely tuned motor with a durable pistol grip layout for hard shop and service environments. Its high torque output, 810 blows per minute, and 3,500 RPM free speed support fast rundown and removal work on trucks, equipment, and industrial machinery, while the 1" square drive accepts large impact sockets commonly used in heavy vehicle and equipment service.

Type: Pistol Grip Air Impact Wrench | Model: 293 | SKU: 293 | Configuration: Pistol | Actuation: Trigger | Drive Size: 1" | Drive Type: Square | Max Reverse Torque: 2,000 ft-lbs | Blows Per Minute: 810 | Free Speed: 3,500 RPM | Free Speed Sound Level: 87.3 / 98.3 dB(A) | Vibration Level: 18.1 m/s² | Weight: 22.8 lbs | Length: 11.3" | Air Inlet: 1/2" NPT | Min Hose Size: 3/4" | Air Consumption @ Load: 64 CFM | Average Air Consumption: 12 CFM | Air Pressure: 90 PSI

Features:

• Twin hammer impact mechanism delivers repeated, balanced impact energy for large fastener installation and removal.
• Finely tuned motor supports strong torque output for vehicle repair, heavy machinery, and large bolting applications.
• 1" square drive accepts large impact sockets used in truck, fleet, equipment, and industrial maintenance work.
• 2,000 ft-lbs forward and reverse torque capacity supports both rundown and breakaway work on large fasteners.
• 810 blows per minute helps transfer impact force quickly during repeated fastening and removal tasks.
• Pistol grip configuration with trigger actuation gives technicians familiar control on high-torque pneumatic fastening jobs.
• 11.3" body length provides a more compact profile than many extended-anvil 1" impact wrench configurations.

Made in USA:

Applications:

• Heavy machinery service — removing and installing large fasteners on construction equipment, machinery frames, and service components.
• Truck and fleet maintenance — handling wheel, suspension, axle, chassis, and undercarriage fasteners on commercial vehicles.
• Vehicle repair shops — using a 1" drive impact wrench for large bolts beyond the range of standard automotive impact tools.
• Agricultural equipment repair — servicing tractors, implements, trailers, and large field equipment fasteners.
• Industrial MRO — maintaining machinery, fixtures, and plant equipment where high-torque pneumatic fastening is required.
• Advanced garage use — suitable for users with a high-airflow compressor setup and large fastener applications.

FAQs:

• Q: What is the max torque rating on the Ingersoll Rand 293?
  A: The manufacturer lists 2,000 ft-lbs of forward torque and 2,000 ft-lbs of max reverse torque. Use the reverse rating for removal capability and verify final tightening with a calibrated torque tool when an exact torque value is required.
• Q: What is a twin hammer impact mechanism?
  A: A twin hammer mechanism uses two hammers to strike the anvil during operation. This helps deliver balanced impact energy and strong torque transfer on large fasteners.
• Q: What sockets should be used with this impact wrench?
  A: The 293 uses 1" square drive impact sockets. Always use sockets rated for impact tools and matched to the fastener size and drive configuration.
• Q: What air supply does the 293 require?
  A: The 293 uses a 1/2" NPT air inlet, requires a 3/4" minimum hose size, and consumes 64 CFM at load. It should be paired with a compressor and air delivery system sized for high-torque 1" drive pneumatic tools.
• Q: Is the 293 suitable for standard passenger car repair?
  A: The 293 is a large 1" drive impact wrench intended for heavy vehicle, fleet, equipment, and machinery work. For most passenger car repair, a smaller 1/2" drive impact wrench is usually more practical.
