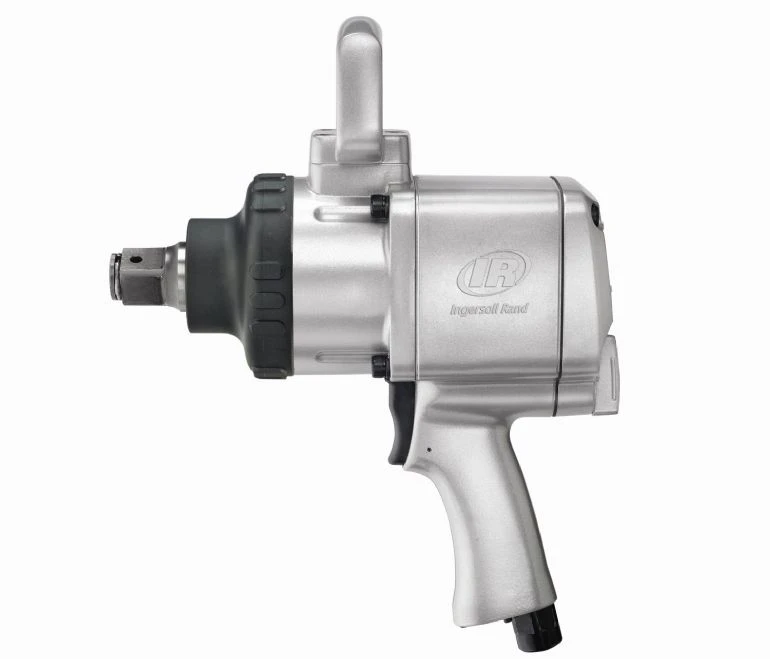

Ingersoll Rand 295A Pistol Grip Air Impact Wrench | 1" Square Drive | 5250 RPM | 1475 (ft-lbs) Max Torque | Trigger Start

Built for vehicle repair, tire service, truck maintenance, and garage work, the Ingersoll Rand 295A Pistol Grip Air Impact Wrench delivers 1,475 ft-lbs of max torque through a 1" square drive for large fasteners that smaller impact wrenches are not sized to handle. Its rocking dog impact mechanism provides strong, repeated impact blows for fast rundown work, while the variable speed trigger gives the user better control when starting, seating, or removing fasteners.

The 295A is built with multiple socket retention methods, including a hog-ring and thru-hole drive, to help keep sockets secured during vehicle repair and hard-to-reach fastening jobs. A metal housing and steel hammer case support durability in harsh shop and outdoor conditions, making this 1" air impact wrench a practical choice for garages, fleet service, and heavy vehicle maintenance.

Type: Pistol Grip Air Impact Wrench | Model: 295A | SKU: 295A | Configuration: Pistol | Actuation: Trigger | Drive Size: 1" | Drive Type: Square, Hog-Ring and Thru-Hole | Forward Torque: 1,475 ft-lbs | Max Reverse Torque: 1,475 ft-lbs | Free Speed: 5,250 RPM | Impacting Sound Level: 97.0 / 108.0 dB(A) | Free Speed Sound Level: 101.1 / 112.1 dB(A) | Vibration Level: 8.6 m/s² | Weight: 22.3 lbs | Length: 11.4" | Air Inlet: 1/2"

Features:

• Rocking dog impact mechanism delivers strong impact energy for fast rundowns on large vehicle and equipment fasteners.
• Variable speed trigger gives the user control over tool speed during fastener starting, rundown, and removal.
• Square socket retaining ring and thru-hole drive provide multiple retention methods for a strong socket connection.
• 1" square drive supports large impact sockets commonly used in truck, bus, RV, fleet, and heavy vehicle service.
• Metal housing and steel hammer case help the tool withstand repeated drops and harsh outdoor working conditions.
• Pistol grip configuration supports two-handed handling and controlled operation during high-torque fastening work.
• Compact 11.4" body length helps the tool fit into service areas where a longer 1" impact wrench may be harder to position.

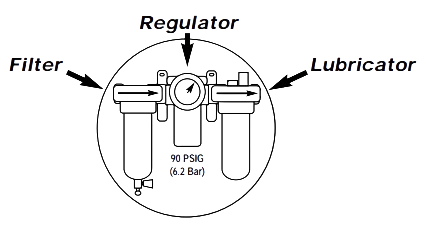

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator (FRLs)

Applications:

• Truck, bus, and RV service — removing and installing large wheel fasteners, suspension hardware, and chassis bolts.
• Fleet maintenance — servicing high-use vehicles where repeated tire, brake, and undercarriage work requires a 1" drive impact wrench.
• Vehicle repair garages — fast rundown and removal of large fasteners on commercial vehicles and heavy-duty repair jobs.
• Farm and agricultural equipment — loosening large bolts on tractors, implements, trailers, and service equipment.
• Construction and heavy equipment maintenance — working on machinery fasteners where 1" square drive socket compatibility is required.
• Advanced garage use — suitable for users with a high-airflow compressor setup and large fastener applications beyond standard automotive work.

FAQs:

• Q: What type of sockets does the Ingersoll Rand 295A use?
  A: The 295A uses 1" square drive impact sockets. The drive includes a hog-ring and thru-hole retention setup, so sockets should be compatible with the tool’s retention method and rated for impact use.
• Q: What is a rocking dog impact mechanism?
  A: A rocking dog impact mechanism is an impact wrench hammer design that delivers repeated striking force to the anvil. It is commonly used on larger impact wrenches where fast rundown and strong impact output are needed.
• Q: Is the 1,475 ft-lbs rating forward torque or reverse torque?
  A: The manufacturer lists 1,475 ft-lbs for both forward torque and max reverse torque on the 295A. Use proper torque verification when final tightening requires an exact torque value.
• Q: What air supply is required for the 295A?
  A: The 295A uses a 1/2" air inlet, requires a 3/4" minimum hose size, and consumes 46 CFM at load. It should be paired with a compressor and air delivery system capable of supporting large 1" drive pneumatic tools.
• Q: Is this impact wrench suitable for normal passenger car work?
  A: The 295A is a large 1" drive impact wrench and is generally better suited to trucks, fleets, buses, RVs, agricultural equipment, and other heavy vehicle jobs. For most passenger car repair, a 1/2" drive impact wrench is usually more appropriate.

Looking for more information about Ingersoll Rand Air Impact Wrench? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Air Impact Wrenches, please call (800) 608-5210 or email info@intlairtool.com
