Ingersoll Rand 2115PTiMAX Maintenance-Duty Impact Wrench combines a compact 3/8" square drive configuration with 15,000 RPM free speed and up to 300 ft-lbs maximum torque for pneumatic fastening and removal work. Its trigger-operated design gives the user direct control during socket-driven tasks, while the 3/8-inch drive makes the tool suitable for compatible sockets and fasteners where a smaller drive format is preferred.
With its high free speed and 300 ft-lbs maximum torque rating, the 2115PTiMAX is configured for maintenance and repair tasks that require a practical balance of fastening capability and maneuverability. The tool is suited to automotive service, equipment maintenance, and general MRO fastening applications where pneumatic impact performance and a 3/8-inch square drive match the job requirements.
Type: Maintenance-Duty Impact Wrench | Model: 2115PTiMAX | Drive Size: 3/8" Square | Free Speed: 15,000 RPM | Maximum Torque: 300 ft-lbs | Control: Trigger
Features:
- 3/8-inch square drive accommodates compatible impact sockets for fastening and removal tasks.
- 15,000 RPM free speed supports rapid rundown and removal during maintenance operations.
- Maximum torque rating of 300 ft-lbs provides substantial fastening and loosening capability in a compact drive size.
- Trigger control provides straightforward tool activation during repetitive service and repair work.
- Pneumatic operation makes the tool suitable for work areas supplied by a compatible compressed-air system.
- Configured for maintenance applications where socket access, speed, and fastening capability are important selection factors.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Applications:
- Automotive maintenance and mechanical repair.
- Equipment service and MRO fastening tasks.
- Machinery maintenance requiring compatible 3/8-inch drive impact sockets.
- Fastener installation and removal within the tool's specified capability.
- Shop and service environments equipped with an appropriate compressed-air supply.
FAQs:
- Q: What size square drive does the 2115PTiMAX use?
A: The 2115PTiMAX uses a 3/8-inch square drive and should be paired with compatible impact-rated sockets. - Q: What is the maximum torque of this impact wrench?
A: The provided product information specifies a maximum torque rating of 300 ft-lbs. - Q: What is the free speed of the 2115PTiMAX?
A: The tool is rated at 15,000 RPM free speed. - Q: Is the 2115PTiMAX intended for maintenance work?
A: Yes. The provided product information identifies the 2115PTiMAX as a maintenance-duty impact wrench. - Q: Is the air inlet size or air consumption specified?
A: Those specifications were not confirmed in the provided product information and have therefore not been added.
| SKU | Description | Actuation | Details | Handle | Free Speed | Impact Rate | Maximum Torque | Torque Range | Weight | Overall Length | Side to Center | Air Consumption | Vibration Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| rpm | bpm | ft-lb (Nm) | ft-lb (Nm) | lb (kg) | in (mm) | in (mm) | cfm (L/min) | m/s² (K) | |||||
| 3/8" - 1/2" | |||||||||||||
| 2115PTiMAX | 3/8" Square | Trigger | Pin | Pistol | 15000 | 1500 | 300 (407) | 25-230 (34-312) | 2.48 (1.12) | 5.9 (151) | 1.1 (28) | 17 (481) | 7.5 (1.8) |
| 2115QPTIMAX | 3/8" Square | Trigger | Pin, Quiet | Pistol | 15000 | 1500 | 300 (407) | 25-230 (34-312) | 2.48 (1.12) | 5.9 (151) | 1.1 (28) | 17 (481) | 7.5 (1.8) |
| 2125PTiMAX | 1/2" Square | Trigger | Pin | Pistol | 15000 | 1500 | 332 (450) | 25-251 (34-340) | 2.51 (1.14) | 6.1 (155) | 1.1 (28) | 17 (481) | 7.5 (1.8) |
| 2135PQXPA | 1/2" Square | Trigger | Pin, Quiet | Pistol | 11000 | 1250 | 780 (1057) | 200-900 (272-1220) | 4 (1.8) | 7.4 (189) | 1.38 (35) | 24 (680) | 13.3 (NA) |
| 2135PTiMAX | 1/2" Square | Trigger | Pin | Pistol | 11000 | 1250 | 780 (1057) | 200-900 (272-1220) | 3.95 (1.79) | 7.5 (190) | 1.38 (35) | 24 (680) | 13.3 (4.6) |
| 2135QPTIMAX | 1/2" Square | Trigger | Square, Pin | Pistol | 11000 | 1250 | 780 (1057) | 200-900 (272-1220) | 3.95 (1.79) | 7.5 (190) | 1.38 (35) | 24 (680) | 13.3 (4.6) |
| 1/2" | |||||||||||||
| 2235PTIMAX | 1/2" Square | Trigger | Pin | Pistol | 8500 | 1220 | 1350 (1830) | 200-900 (272-1220) | 4.7 (2.1) | 7.6 (193) | 1.36 (30) | 24 (680) | 9.0 (2.8) |
| 2235QPTIMAX | 1/2" Square | Trigger | Pin, Quiet | Pistol | 8500 | 1220 | 1350 (1830) | 200-900 (272-1220) | 4.7 (2.1) | 7.6 (193) | 1.36 (30) | 24 (680) | 9.0 (2.8) |
| 2145QIMAX | 3/4" Square | Trigger | Hog-ring, Thru-hole Quiet | Pistol | 7000 | 1150 | 1350 (1830) | 200-900 (272-1220) | 7.4 (3.4) | 8.5 (217) | 1.6 (41.5) | 32 (906) | 8.7 (0.8) |
| 1" | |||||||||||||
| 2175MAX | 1" Square | Trigger | Thru-Hole | Pistol | 4500 | 740 | 1900 (2580) | 300-1600 (407-2169) | 18.0 (8.2) | 10.0 (254) | 14.2 (402) | 11.8 (3.6) | 9.0 (2.8) |
| 2850MAX | 1" Square | Inside Trigger | Thru-Hole | D-Handle | 5500 | 770 | 2100 (2850) | 300-1600 (407-2169) | 19.4 (8.8) | 13.1 (334) | 14.0 (397) | 10.3 (1.9) | 12.6 (3.6) |

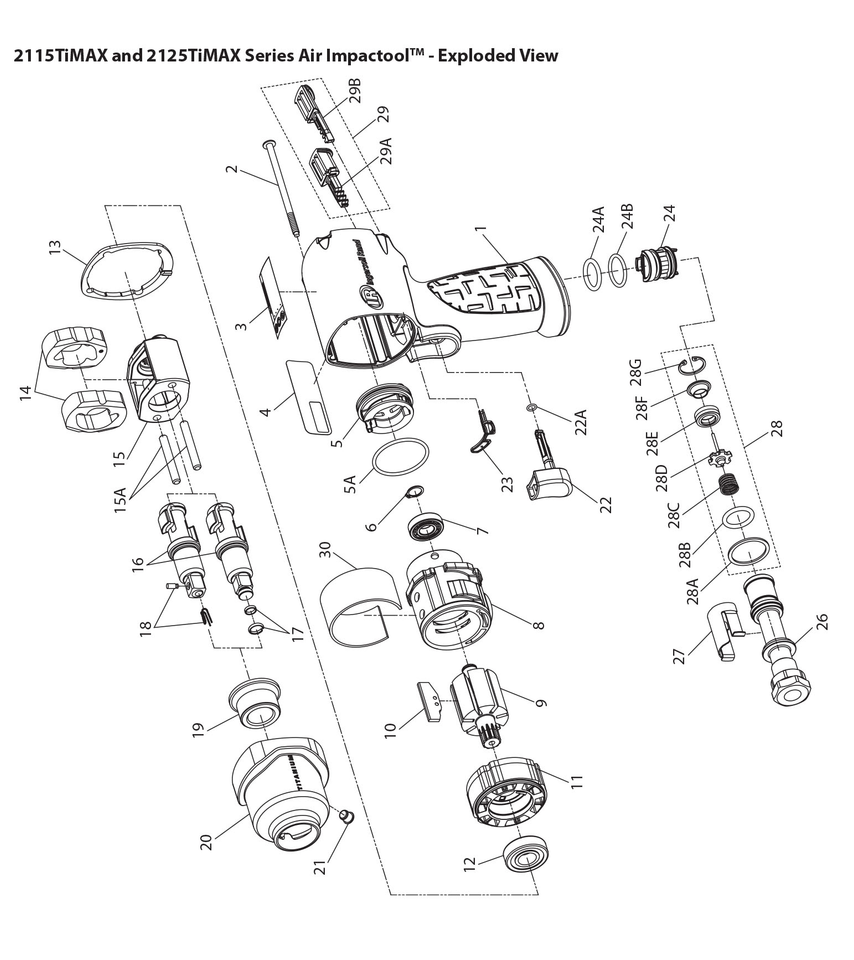

Ingersoll Rand 2115PTiMAX Impact Wrench Parts List
