Cleco 22M5071-50 22 Series Reversible Rotary Vane Air Motor | 0.7 HP | 500 RPM | 19.6 (ft-lbs) Stall Torque | Side Exhaust

Cleco 22M5071-50 is a robust and versatile 22 Series Reversible Rotary Vane Air Motor designed for a variety of industrial applications. Delivering 0.7 horsepower, it operates at a controlled speed of 500 RPM, making it suitable for tasks requiring steady, reliable power rather than high-speed rotation. Its impressive stall torque of 19.6 ft-lbs indicates strong turning power even under heavy load, preventing slowdowns or stoppages. The side exhaust design helps to direct air away from the workpiece or operator, contributing to a cleaner and safer working environment. This motor's reversible functionality further enhances its utility, allowing for flexible operation in both clockwise and counter-clockwise directions.

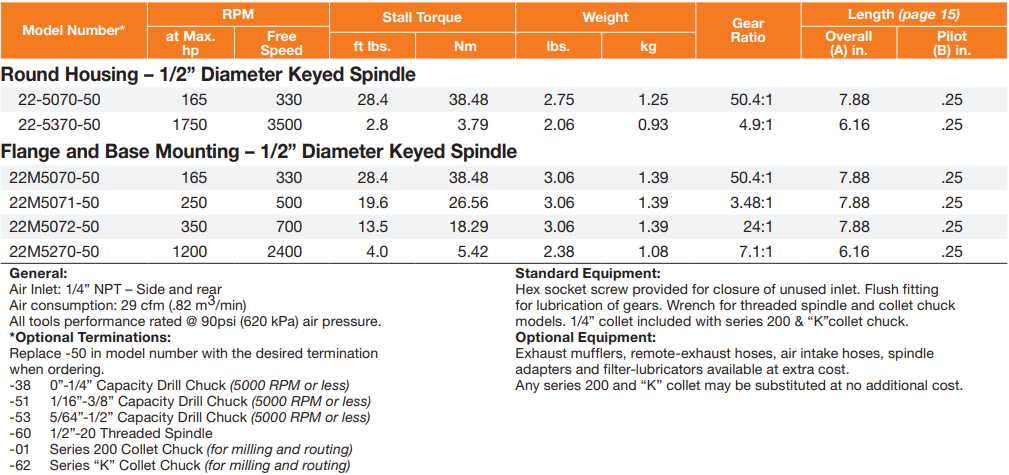

Type: Air Motor | Series: 22 Series | Spindle Type: Keyed Spindle | Spindle Size (in.): 1/2 | RPM at Max HP (1/min ): 250 | Free Speed (RPM): 500 | Torque Stall (ft-lbs): 19.6 | Gear Ratio: 34.8-1 | Air Consumption (SCFM): 29 | Control: Reversible | Exhaust: Side | Power (HP): 0.7 | Length Pilot (in.): 0.25 | Motor Configuration: Rotary Vane | Mount: Flange and Base Mounting

Features:

• Delivers strong, efficient power for demanding tasks
• Operates across a wide torque range for versatility
• Reversible rotation for flexible usage in various applications
• Side exhaust improves comfort and keeps the work area clean
• Compact size fits easily into tight spaces or equipment

Made in USA:

Looking for more information about Cleco Air Motors? Click here to view the Catalog.

Need help selecting the correct Cleco Air Motor for your application? Please call (800) 608-5210 or email info@intlairtool.com
