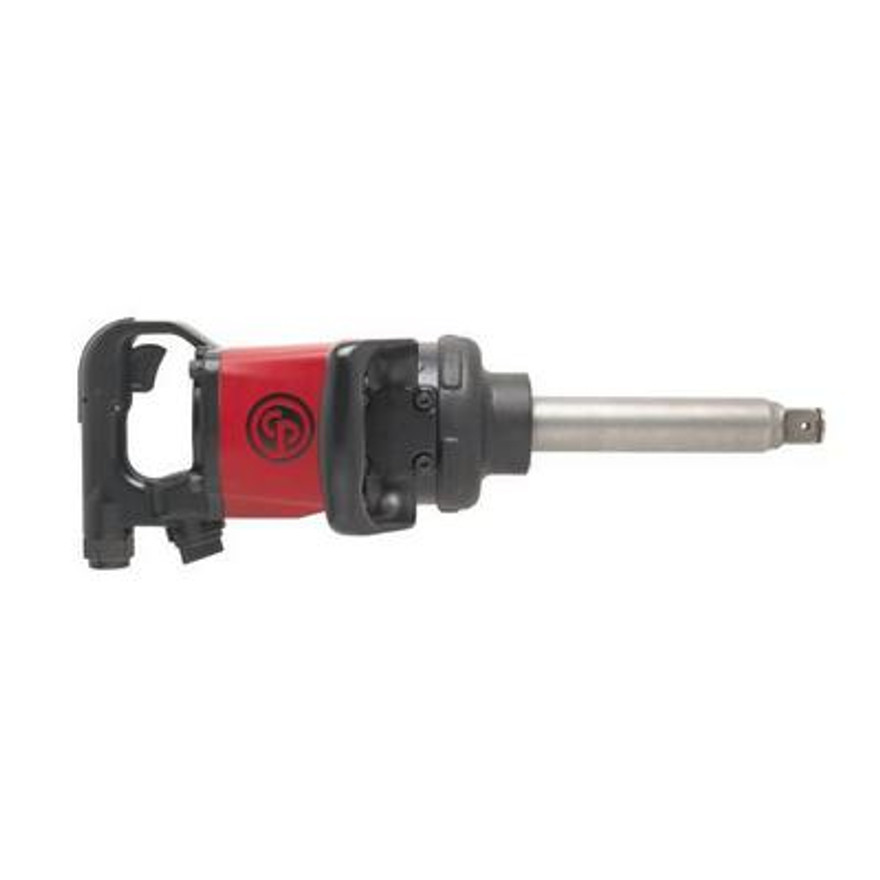

The Chicago Pneumatic CP7782-6 Impact Wrench delivers easy operation and extended durability. It is a Durable impact wrench with great power for the toughest jobs on heavy vehicles, it has a high efficiency motor, yet it is economical with durable reinforced clutch mechanism. It features pinless closed reinforced rocking dog impact mechanism for improved performance. It is a 1" straight impact wrench with 6" extended anvil. The Regulator is integrated with forward/reverse with 3-position power settings in both directions. It also has dual socket retention, hole and friction ring. The ergonomic side handle offers a durable and comfortable grip and superior operator comfort. With 1920 ft. lbs - 2600 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 369 to 1480 ft./lbs. This product weighs 25.6 lbs, measures 20.47 inches long, and has a 1-inch output drive.
Type: Impact Wrench | Drive Size (in.): 1 | Impact Mecanism: Pinless rocking dog | Blows Per Minute (BPM): 500 | Free Speed (RPM): 5200 | Working Torque Range (ft-lbs): 369-1,480 | Working Torque Range (fwd) (Nm): 500-2000 | Max Reverse Torque (ft-lbs): 1920 | Max Reverse Torque (Nm): 2600 | Length (in.): 20.47 | Length (mm): 520 | Air Consumption @ Load (CFM): 40.7 | Air Consumption @ Load (l/s): 19.2 | Vibration Level (a): 7.8 | Vibration Level (k): 1.8 | Sound Pressure (dbA): 100 | Sound Power (dbA): 111 | Air Inlet Size (in.): 1/2 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10
Features:
- #5 spline straight impact wrench with 6" extended anvil
- 1920 ft. lbs - 2600 Nm of maximum torque in reverse
- Pinless closed reinforced rocking dog impact mechanism
- Socket retainer ring combined with hole retainer
- Ergonomic side handle
- Full teasing trigger
- Regulator with integrated forward/reverse with 3-position power settings in both directions
Benefits:
- High efficiency motor, yet economical with durable reinforced clutch mechanism
- Durable impact wrench with great power for the toughest jobs on heavy vehicles
