Chicago Pneumatic CP6773-D18D Impact Wrench | 1" Drive | 1300 (ft.-lb.) Max Torque | 6600 RPM

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Chicago Pneumatic

Chicago Pneumatic CP6773-D18D Impact Wrench | 1" Drive | Max Torque 1300 Ft. Lbs | 6600 RPM

List Price: $1,039.68
$831.74
(You save $207.94 )
Availability:
Usually Ships Within 4 to 6 Weeks of Order | Contact Customer Service for Details
SKU:
6151590650
Shipping:
Calculated at Checkout
Weight:
14.70 LBS
Condition:
New
Adding to cart… The item has been added
Description


The Chicago Pneumatic CP6773-D18D Impact Wrench with hole and ring retaining system delivers easy operation and extended durability. It is a versatile, compact, lightweight and powerful D-handle Impact Wrench, ideal for many industrial Maintenance and MRO applications. It features powerful twin hammer clutch for great performance. It is a robust tool featuring steel clutch housing and aluminum motor housing. The ergonomic D-handle offers a durable and comfortable grip and superior operator comfort. With 1300 ft. lbs - 1760 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 251 to 1070 ft./lbs. This product weighs 14.7 lbs, measures 11.4 inches long, and has a 1-inch output drive.

Type: Impact Wrench | Drive Size (in.): 1 | Impact Mecanism: Twin hammer | Blows Per Minute (BPM): 730 | Free Speed (RPM): 6600 | Working Torque Range (ft-lbs): 251-1,070 | Working Torque Range (fwd) (Nm): 340-1450 | Max Reverse Torque (ft-lbs): 1300 | Max Reverse Torque (Nm): 1760 | Length (in.): 11.42 | Length (mm): 290 | Air Consumption @ Load (CFM): 41 | Air Consumption @ Load (l/s): 19.3 | Vibration Level (a): 11.4 | Vibration Level (k): 2.9 | Sound Pressure (dbA): 98 | Sound Power (dbA): 109 | Air Inlet Size (in.): 1/2 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10

Features:

  • Suited for many industrial MRO
  • Good ergonomics giving less operator's fatigue
  • Hole and ring retaining system

Benefits:

  • Only 6,7 kg
  • Robust with steel clutch housing and aluminum motor housing
  • Powerful, untightening torque 1300 ft.lb (1760 Nm)

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Grinder? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Grinders for your assembly application, call (800) 608-5210 or email info@intlairtool.com

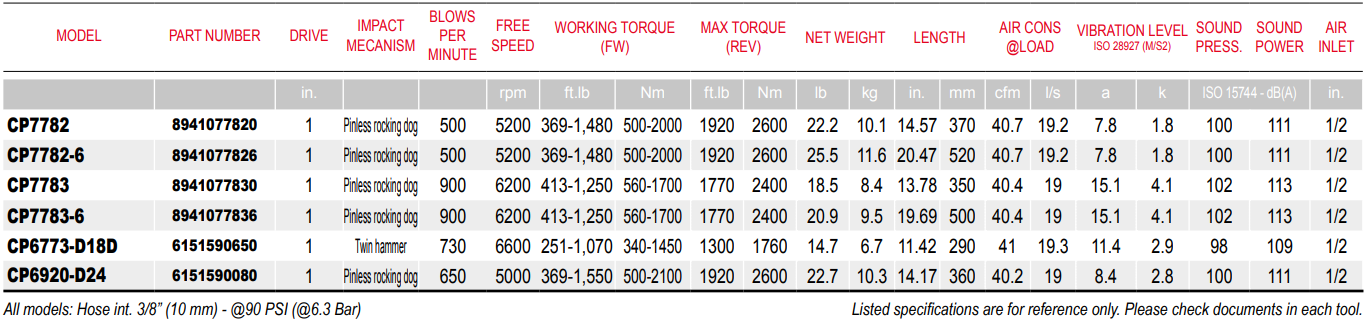

Specifications
Type:
Impact Wrench
Drive Size (in.):
1
Impact Mecanism:
Twin hammer
Blows Per Minute (BPM):
730
Free Speed (RPM):
6600
Working Torque Range (ft-lbs):
251-1,070
Working Torque Range (fwd) (Nm):
340-1450
Max Reverse Torque (ft-lbs):
1300
Max Reverse Torque (Nm):
1760
Length (in.):
11.42
Length (mm):
290
Air Consumption @ Load (CFM):
41
Air Consumption @ Load (l/s):
19.3
Vibration Level (a):
11.4
Vibration Level (k):
2.9
Sound Pressure (dbA):
98
Sound Power (dbA):
109
Air Inlet Size (in.):
1/2
Min Hose Size (in.):
3/8
Min Hose Size (mm):
10
Warranty Information
Chicago Pneumatic Impact Wrench Feature a One Year Warranty Against Defects in Materials and Workmanship.
