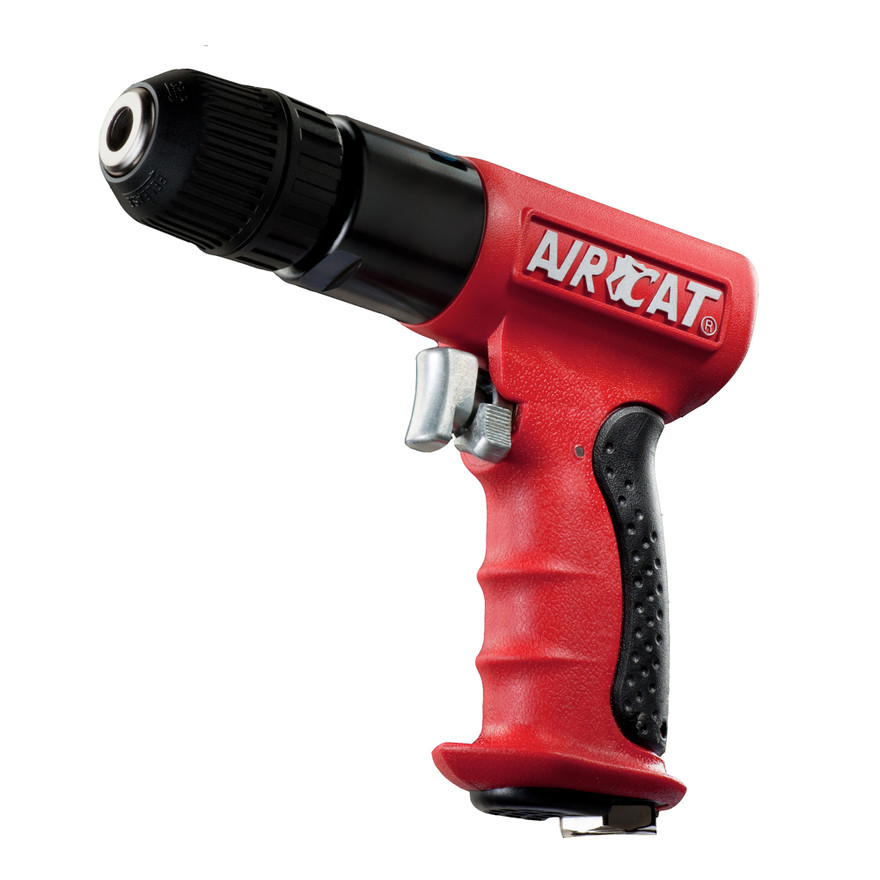

Built for drilling and fastening applications in automotive repair, fabrication, and maintenance environments, the AIRCAT 4338 Composite Reversible Drill delivers 0.6 HP pneumatic power with a 1,800 RPM free speed for controlled drilling performance. The 3/8" chuck size accepts common drill bits, while the reversible motor allows operators to switch between forward and reverse rotation for drilling, fastening, and removal tasks.
The AIRCAT 4338 features a lightweight composite housing designed to reduce tool weight while maintaining a practical configuration for everyday shop use. With a 3/8" x 24 spindle thread and reversible operation, this drill provides flexibility for technicians who need a compact pneumatic tool for general-purpose drilling and assembly work.
Type: Composite Reversible Drill | Model: 4338 | Power: 0.6 HP | Free Speed: 1,800 RPM | Chuck Size: 3/8" | Spindle Thread: 3/8" x 24
Features:
- Composite housing construction provides a lightweight drill configuration for shop and service applications.
- 0.6 HP pneumatic motor delivers consistent drilling power for general maintenance and fabrication tasks.
- 1,800 RPM free speed provides controlled rotation for drilling and fastening applications.
- Reversible motor allows quick switching between forward and reverse operation for installation and removal work.
- 3/8" chuck accommodates compatible drill bits for common drilling requirements.
- 3/8" x 24 spindle thread supports compatible accessories and tooling.
Applications:
- Automotive repair and service: drilling holes, installing fasteners, and performing repair tasks on vehicle components.
- Metal fabrication: preparing assemblies, drilling sheet metal, and modifying fabricated parts.
- Industrial maintenance and MRO: supporting equipment repair, installation, and general shop maintenance work.
- Assembly operations: handling drilling and fastening tasks where reversible operation improves workflow flexibility.
- Garage and workshop projects: providing pneumatic drilling capability for repair, restoration, and general fabrication work.
FAQs:
- Q: What is the advantage of a reversible pneumatic drill?
A: A reversible drill allows the operator to change rotation direction, making it useful for both drilling operations and removing or adjusting fasteners. - Q: What drill bits fit the AIRCAT 4338?
A: The AIRCAT 4338 uses a 3/8" chuck, so it accepts compatible drill bits within that chuck capacity range. - Q: What does the 0.6 HP rating mean?
A: The horsepower rating indicates the output capability of the pneumatic motor. A 0.6 HP motor provides power for general drilling and maintenance applications. - Q: Is this drill suitable for professional shop use?
A: Yes, the AIRCAT 4338 is suited for professional repair, fabrication, and maintenance environments where a compact pneumatic drill is required.
| SKU | Free Speed (BPM) |
Motor (HP) |
Chuck Size |
Gears | Spindle Tread Size |
Weight (lbs.) |
Length (in) |
Air Cons. (CFM) |
Rec. Hose Size (in.) |
Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4337 | 1,600 | .75 | 3/8 | Spiral Bevel | 3/8 x 24 | 2.40 | 8.30 | 6 | 3/8 | 1/4 |
| 4338 | 1,800 | .6 | 3/8 | Planetary | 3/8 x 24 | 2.50 | 7.00 | 6 | 3/8 | 1/4 |
| 4450 | 400 | .6 | 1/2 | Planetary | 3/8 x 24 | 3.00 | 8.00 | 6 | 3/8 | 1/4 |
Looking for more information about the Aircat Pneumatic Drills? Click here to view the Catalog.
For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
