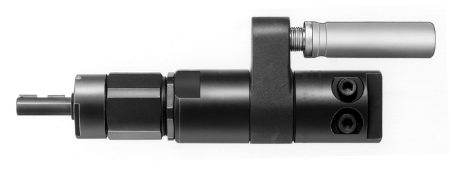

Ingersoll Rand 7805-1B Non-Reversible Air Power Motor is engineered to deliver dependable pneumatic rotary power for industrial applications requiring maximum output torque with controlled low-speed operation. Producing 0.85 HP and a free speed of 350 RPM, this air motor incorporates a double gear reduction that efficiently multiplies torque while reducing output speed. It is an excellent choice for OEM machinery, material handling equipment, industrial processing systems, automated production machinery, and other compressed-air powered applications where high rotary force and reliable single-direction operation are essential.
The 7805-1B develops a 55.00 lb-ft stall torque, representing the maximum torque produced when the output shaft is prevented from rotating. Its non-reversible configuration provides consistent one-direction operation, while the double-stage gear reduction delivers substantial torque for demanding industrial equipment requiring slow, controlled rotary motion.
Type: Air Power Motor | Model: 7805-1B | Rotation: Non-Reversible | Gear Reduction: Double Gear Reduction | Power: 0.85 HP | Free Speed: 350 RPM | Stall Torque: 55.00 lb-ft
Features:
- Non-reversible air motor provides dependable single-direction pneumatic rotary power.
- Double gear reduction significantly increases output torque while reducing operating speed.
- 0.85 HP output supports demanding pneumatic drive applications.
- 350 RPM free speed is ideal for equipment requiring slow, controlled rotary motion with substantial torque.
- 55.00 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum torque capability.
- Compact pneumatic motor design integrates easily into OEM machinery and industrial equipment.
- Compressed-air operation eliminates the need for electrical power at the motor, making it suitable for facilities utilizing centralized pneumatic systems.
Made in USA:
Applications:
- OEM machinery requiring dependable single-direction pneumatic rotary power.
- Automated manufacturing and production equipment.
- Industrial processing and assembly systems.
- Material handling, conveyor, indexing, and drive applications requiring high output torque.
- Replacement applications where the published motor specifications match the original equipment.
FAQs:
- Q: Is the Ingersoll Rand 7805-1B reversible?
A: No. This model is a non-reversible air motor designed for continuous rotation in one direction. - Q: What is the advantage of double gear reduction?
A: Double gear reduction uses two reduction stages to substantially decrease output speed while increasing available torque, making it well suited for demanding industrial applications requiring high rotary force. - Q: What is the rated free speed?
A: The manufacturer specifies a free speed of 350 RPM. - Q: What does the stall torque rating represent?
A: Stall torque is the maximum torque the motor develops when the output shaft is prevented from rotating under load. - Q: What should be verified before installation?
A: Confirm horsepower, free speed, rotation direction, gear reduction, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.
| SKU | Spindle | R.P.M. | Torque | Air Consumption at Free Speed | Sound Level at Free Speed | Weight | Gear Reduction | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Free Speed | Load Speed at Max. Hp | Stall | Output | SCFM | L/s | lbs | kg | ||||||
| (ft-lbs) | Nm | (ft-lbs) | Nm | dB(A) | |||||||||
| Non-Reversible - 0.85 HP | |||||||||||||
| 7800-1B | 1/2" Keyed | 18,000 | 9,000 | 1.00 | 1.4 | 0.50 | 0.68 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | Single |
| 7801-1B | 1/2" Keyed | 4,600 | 2,400 | 4.00 | 5.5 | 1.86 | 2.5 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | Single |
| 7802-1B | 1/2" Keyed | 2,500 | 1,300 | 7.50 | 10.3 | 3.43 | 4.7 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | Single |
| 7803-1B | 1/2" Keyed | 1,200 | 600 | 16.00 | 21.9 | 7.44 | 10.2 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | Double |
| 7804-1B | 1/2" Keyed | 650 | 320 | 30.00 | 41.2 | 13.95 | 19.1 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | Double |
| 7805-1B | 1/2" Keyed | 350 | 170 | 55.00 | 75.5 | 26.25 | 36.0 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | Double |
| 7812-1B | 1/2"-20 Th’d. | 350 | 170 | 55.00 | 75.5 | 26.25 | 36.0 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | Double |
| 7813-1B | 1/2"-20 Th’d. | 650 | 320 | 30.00 | 41.2 | 13.95 | 19.1 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | Double |
| 7814-1B | 1/2"-20 Th’d. | 18,000 | 9,000 | 1.00 | 1.4 | 0.50 | 0.68 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | Single |
| 7815-1B | 1/2"-20 Th’d. | 1,200 | 600 | 16.00 | 21.9 | 7.44 | 10.2 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | Double |
| 7816-1B | 1/2"-20 Th’d. | 4,600 | 2,400 | 4.00 | 5.5 | 1.86 | 2.5 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | Single |
| 7817-1B | 1/2"-20 Th’d. | 2,500 | 1,300 | 7.50 | 10.3 | 3.43 | 4.7 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | Single |
| Reversible - 0.70 HP | |||||||||||||
| 7806-1B | 1/2" Keyed | 13,500 | 7,000 | 1.00 | 1.4 | 0.52 | 0.71 | 37.3 | 17.6 | 85* | 4.36 | 1.96 | Single |
| 7807-1B | 1/2" Keyed | 3,400 | 1,800 | 4.00 | 5.5 | 2.04 | 2.8 | 37.3 | 17.6 | 85* | 4.36 | 1.96 | Single |
| 7808-1B | 1/2" Keyed | 1,800 | 1,000 | 7.40 | 10.2 | 3.67 | 5.0 | 37.3 | 17.6 | 85* | 4.36 | 1.96 | Single |
| 7809-1B | 1/2" Keyed | 850 | 450 | 15.50 | 21.3 | 8.16 | 11.2 | 37.3 | 17.6 | 85* | 5.67 | 2.55 | Double |
| 7810-1B | 1/2" Keyed | 450 | 240 | 29.00 | 39.8 | 15.30 | 21.0 | 37.3 | 17.6 | 85* | 5.67 | 2.55 | Double |
| 7811-1B | 1/2" Keyed | 250 | 130 | 54.00 | 74.0 | 28.20 | 38.7 | 37.3 | 17.6 | 85* | 5.67 | 2.55 | Double |
Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Air Power Motor
- Motor Type
- Non-Reversible
- Power (hp)
- 0.85
- Spindle Keyed (in.)
- 1/2
- RPM
- 350
- Load Speed @ Max HP (RPM)
- 170
- Stall Torque (ft-lbs)
- 55
- Stall Torque (Nm)
- 75.5
- Torque Output @ Max HP (ft-lbs)
- 26.25
