Ingersoll Rand 7801-1B Non-Reversible Air Power Motor is designed to deliver reliable pneumatic rotary power for industrial equipment requiring a balance of operating speed and output torque. Producing 0.85 HP with a free speed of 4,600 RPM, this air motor features a single gear reduction that efficiently transfers power while maintaining moderate rotational speed. It is well suited for OEM machinery, automated manufacturing systems, industrial processing equipment, conveyors, and other compressed-air powered applications requiring dependable single-direction operation.
The 7801-1B develops a 4.00 lb-ft stall torque, representing the maximum torque produced when the output shaft is prevented from rotating. Its non-reversible configuration provides consistent one-direction operation, while the single-stage gear reduction offers an effective combination of speed and usable torque for a broad range of industrial drive applications.
Type: Air Power Motor | Model: 7801-1B | Rotation: Non-Reversible | Gear Reduction: Single Gear Reduction | Power: 0.85 HP | Free Speed: 4,600 RPM | Stall Torque: 4.00 lb-ft
Features:
- Non-reversible air motor provides dependable single-direction pneumatic rotary power.
- Single gear reduction offers an efficient balance between operating speed and output torque.
- 0.85 HP output supports demanding pneumatic drive applications.
- 4,600 RPM free speed is suitable for industrial equipment requiring moderate-speed rotary performance.
- 4.00 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum torque capability.
- Compact pneumatic motor design integrates easily into OEM machinery and industrial equipment.
- Compressed-air operation eliminates the need for electrical power at the motor, making it suitable for facilities utilizing centralized pneumatic systems.
Made in USA:
Applications:
- OEM machinery requiring dependable single-direction pneumatic rotary power.
- Automated manufacturing and production equipment.
- Industrial processing and assembly systems.
- Material handling and conveyor drive applications.
- Replacement applications where the published motor specifications match the original equipment.
FAQs:
- Q: Is the Ingersoll Rand 7801-1B reversible?
A: No. This model is a non-reversible air motor designed for continuous rotation in one direction. - Q: What is the advantage of single gear reduction?
A: Single gear reduction uses one reduction stage to provide an effective balance between rotational speed and output torque while maintaining a compact motor design. - Q: What is the rated free speed?
A: The manufacturer specifies a free speed of 4,600 RPM. - Q: What does the stall torque rating represent?
A: Stall torque is the maximum torque the motor develops when the output shaft is prevented from rotating under load. - Q: What should be verified before installation?
A: Confirm horsepower, free speed, rotation direction, gear reduction, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.

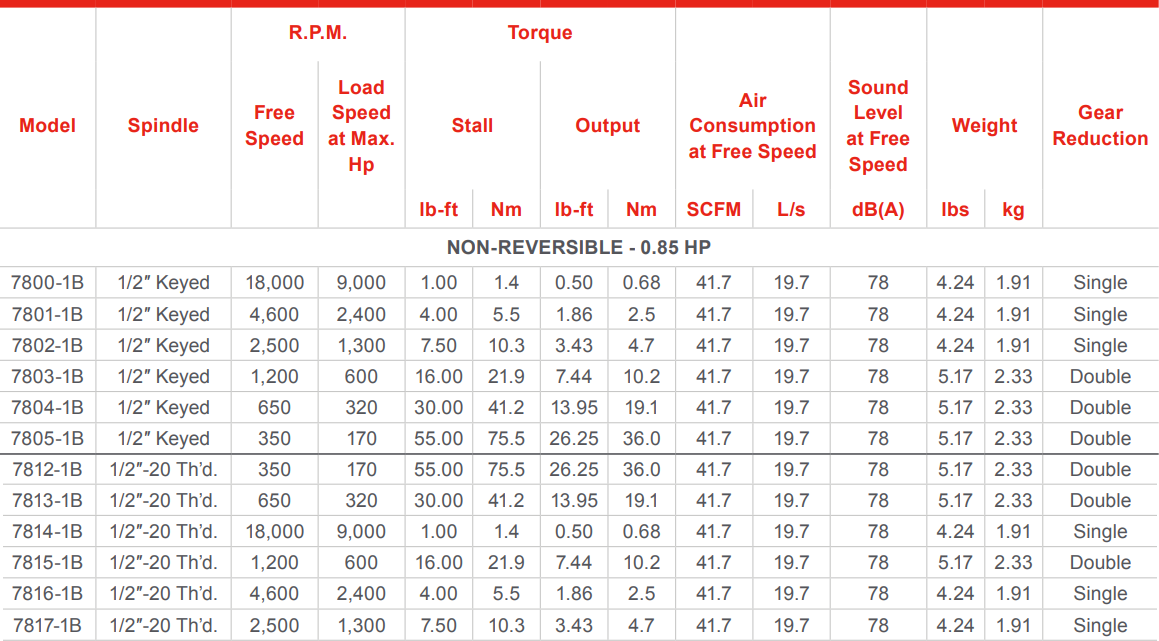

| SKU | Spindle | R.P.M. | Torque | Air Consumption at Free Speed | Sound Level at Free Speed | Weight | Gear Reduction | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Free Speed | Load Speed at Max. Hp | Stall | Output | SCFM | L/s | lbs | kg | ||||||
| (ft-lbs) | Nm | (ft-lbs) | Nm | dB(A) | |||||||||
| Non-Reversible - 0.85 HP | |||||||||||||
| 7800-1B | 1/2" Keyed | 18,000 | 9,000 | 1.00 | 1.4 | 0.50 | 0.68 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | Single |
| 7801-1B | 1/2" Keyed | 4,600 | 2,400 | 4.00 | 5.5 | 1.86 | 2.5 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | Single |
| 7802-1B | 1/2" Keyed | 2,500 | 1,300 | 7.50 | 10.3 | 3.43 | 4.7 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | Single |
| 7803-1B | 1/2" Keyed | 1,200 | 600 | 16.00 | 21.9 | 7.44 | 10.2 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | Double |
| 7804-1B | 1/2" Keyed | 650 | 320 | 30.00 | 41.2 | 13.95 | 19.1 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | Double |
| 7805-1B | 1/2" Keyed | 350 | 170 | 55.00 | 75.5 | 26.25 | 36.0 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | Double |
| 7812-1B | 1/2"-20 Th’d. | 350 | 170 | 55.00 | 75.5 | 26.25 | 36.0 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | Double |
| 7813-1B | 1/2"-20 Th’d. | 650 | 320 | 30.00 | 41.2 | 13.95 | 19.1 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | Double |
| 7814-1B | 1/2"-20 Th’d. | 18,000 | 9,000 | 1.00 | 1.4 | 0.50 | 0.68 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | Single |
| 7815-1B | 1/2"-20 Th’d. | 1,200 | 600 | 16.00 | 21.9 | 7.44 | 10.2 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | Double |
| 7816-1B | 1/2"-20 Th’d. | 4,600 | 2,400 | 4.00 | 5.5 | 1.86 | 2.5 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | Single |
| 7817-1B | 1/2"-20 Th’d. | 2,500 | 1,300 | 7.50 | 10.3 | 3.43 | 4.7 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | Single |
| Reversible - 0.70 HP | |||||||||||||
| 7806-1B | 1/2" Keyed | 13,500 | 7,000 | 1.00 | 1.4 | 0.52 | 0.71 | 37.3 | 17.6 | 85* | 4.36 | 1.96 | Single |
| 7807-1B | 1/2" Keyed | 3,400 | 1,800 | 4.00 | 5.5 | 2.04 | 2.8 | 37.3 | 17.6 | 85* | 4.36 | 1.96 | Single |
| 7808-1B | 1/2" Keyed | 1,800 | 1,000 | 7.40 | 10.2 | 3.67 | 5.0 | 37.3 | 17.6 | 85* | 4.36 | 1.96 | Single |
| 7809-1B | 1/2" Keyed | 850 | 450 | 15.50 | 21.3 | 8.16 | 11.2 | 37.3 | 17.6 | 85* | 5.67 | 2.55 | Double |
| 7810-1B | 1/2" Keyed | 450 | 240 | 29.00 | 39.8 | 15.30 | 21.0 | 37.3 | 17.6 | 85* | 5.67 | 2.55 | Double |
| 7811-1B | 1/2" Keyed | 250 | 130 | 54.00 | 74.0 | 28.20 | 38.7 | 37.3 | 17.6 | 85* | 5.67 | 2.55 | Double |
Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Air Power Motor
- Motor Type
- Non-Reversible
- Power (hp)
- 0.85
- Spindle Keyed (in.)
- 1/2
- RPM
- 4600
- Load Speed @ Max HP (RPM)
- 2400
- Stall Torque (ft-lbs)
- 4
- Stall Torque (Nm)
- 5.5
- Torque Output @ Max HP (ft-lbs)
- 1.86
