Palmgren 9680227 Variable Speed Belt Drive Drill Press is a powerful and versatile machine designed for precision drilling across a range of materials. With a 20" swing and a strong 2 HP motor, it’s built to handle medium to heavy-duty drilling tasks in professional workshops and industrial settings. Its variable speed belt drive system allows smooth and easy adjustments between 300 to 2,000 RPM, giving you full control to match the speed perfectly with your material and application.
Palmgren’s 20" Variable Speed Drill Presses allow the user to dial into the optimal spindle RPM for any material or tooling combination. While the machine is running, the simple hand wheel adjustments and digital RPM readout makes speed changes a breeze. The heavy-duty cast-iron construction increases the machines’ accuracy and rigidity in any drilling application.

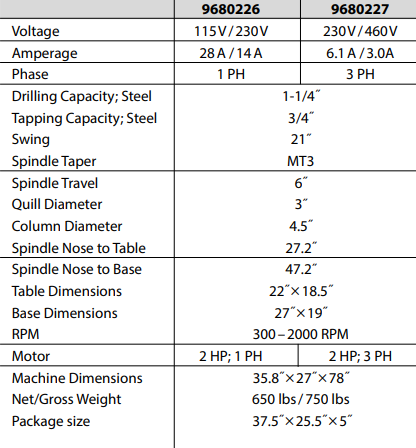

Type: Belt Drive Drill Press | Base Dimension (in.): 27.4 x 19.5 x 6.1 | Chuck Size (in.): 1-1/4 | Column Diameter (in.): 4.5 | Max. Distance Spindle Base (in.): 46.5 | Distance Spindle Column (in.): 11 | Max. Distance Spindle Table (in.): 33.5 | Drill Press Model: Floor Model | Drill Press Type: Variable Speed | Drilling Capacity Cast Iron (in.): 1-1/4 | Maximum Spindle to Table (in.): 47 | Motor HP: 2 | Number of Spindle Speeds: Variable | Number of Table Slots: 2 | Overall Dimensions (in.): 36 x 27 x 78 | Phase: Three | RPM: 300-2,000 | Spindle Taper: MT3 | Spindle Travel (in.): 6 | Swing (in.): 20 | Voltage: 230/460
Features:
- Front mounted positive control depth stop, Oversized head construction provides for an extended quill travel of 4-1/2"
- Large, ergonomic down feed hand grips designed for end user comfort during operation
- Oversized 3" quill diameter
- Front face LED spindle speed readout
- Worktable can rotate 360° around the machine column
- Precision ground base work surface with t-slots for large workpieces
- Side mounted hand wheel for instant speed changes
Looking for more information about Palmgren Belt Drive Drill Presses? Need help selecting the correct Palmgren Belt Drive Drill Press for your application? Please call (800) 608-5210 or email info@intlairtool.com
