Palmgren

Palmgren 9680217 Variable Speed Floor Drill Press | 16" Swing | 230 Voltage | 2 HP

$8,417.33
SKU:
9680217
Shipping:
Calculated at Checkout
Weight:
450.00 LBS
UPC:
726896802176
Adding to cart… The item has been added
Description


Palmgren 9680217 Variable Speed Floor Drill Press is a high-performance machine built for precision, power, and durability. With a 16" swing and a heavy-duty 2 HP motor, it’s designed to tackle demanding drilling applications in metal, wood, plastic, and composite materials. Equipped with variable speed control, this drill press allows you to fine-tune the RPM for the exact material and drilling condition—delivering smooth, accurate results every time. The 230V motor ensures consistent torque and power, even during extended use or under heavy load. Built from durable cast iron, this drill press stays stable during use, reducing vibration for smoother operation. The spacious worktable is adjustable and tilts, making it easy to drill at different angles.

Type: Floor Drill Press | Chuck Size (in.): 1/32-5/8 | Column Diameter (in.): 3.622 | Max. Distance Spindle Base (in.): 50.197 | Max. Distance Spindle Table (in.): 33.858 | Drill Press Model: Floor Model | Drill Press Type: Variable Speed | Motor HP: 2 | Phase: Single | Spindle Taper: MT3/JT3 | Swing (in.): 16 | Table Dimensions (in.): 13.386 x 14.173 | Voltage: 230

Features:

  • Built in halogen work light
  • Forward and reverse switch
  • Tapping mode
  • Coolant
  • Digital spindle rpm readout
  • Interlocking spindle safety guard
  • Electric interlock on pulley cover
  • Magnetic overload protection
  • Built in tool ejector
  • Chuck and arbor

industrial-tools-parts-breakdown.pngLooking for more information about Palmgren Floor Drill PressesClick here to view the Catalog.

Need help selecting the correct Palmgren Floor Drill Press for your application? Please call (800) 608-5210 or email info@intlairtool.com

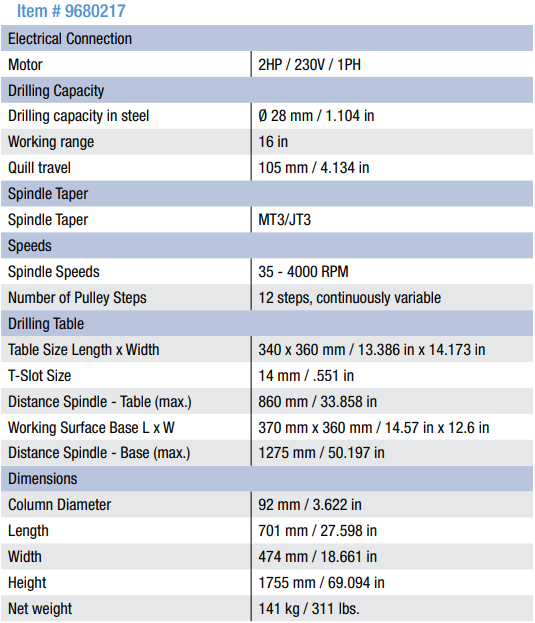

Specifications
Type:
Floor Drill Press
Chuck Size (in.):
1/32-5/8
Column Diameter (in.):
3.622
Max. Distance Spindle Base (in.):
50.197
Max. Distance Spindle Table (in.):
33.858
Drill Press Model:
Floor Model
Drill Press Type:
Variable Speed
Motor HP:
2
Phase:
Single
Spindle Taper:
MT3/JT3
Swing (in.):
16
Table Dimensions (in.):
13.386 x 14.173
Voltage:
230
Warranty Information
3 Year warranty against defects in materials and workmanship.
