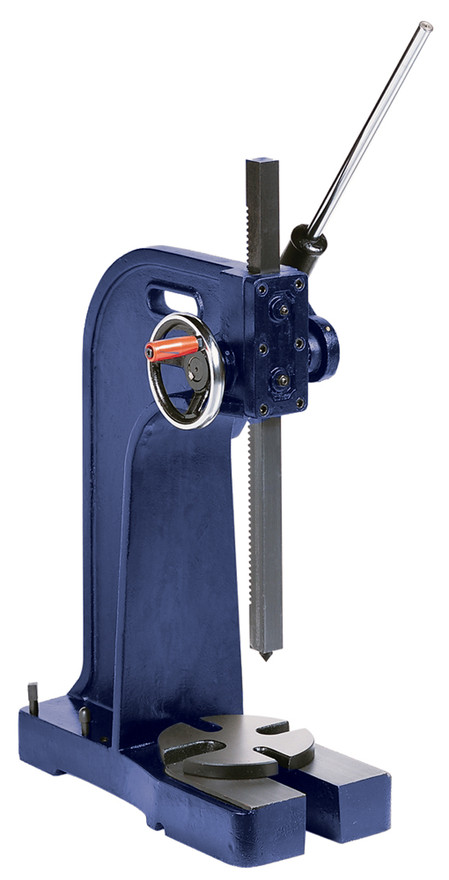

Palmgren 9661302 3 Ton Ratcheting Arbor Press is a robust, industrial-grade tool designed for precision pressing, broaching, staking, and assembly operations. Built from heavy-duty cast iron, it delivers a full 3 tons of force while maintaining stability and accuracy under load. Its ratcheting mechanism with counterweighted return ensures controlled, repeatable operation with less operator fatigue, making it ideal for high-volume or repetitive tasks. The press features a 1-1/4" square reversible steel ram—one end solid and the other bored and magnetized to hold tooling—and an 8" diameter machined anvil with four slot positions for versatile workpiece support. With a generous 13-1/2" swing and a 17-3/4" maximum work height, it accommodates a wide range of applications. A side-mounted handwheel enables quick ram adjustment, while the included set of pressing tips and integrated tool storage enhance convenience. Perfect for workshops and production floors alike, this arbor press combines strength, precision, and ease of use in one dependable machine.
Type: Arbor Press | Anvil Diameter (in.): 7-7/8 | Base Dimension (in.): 10 x 21-1/2 | Capacity over Table (in.): 17.75 | Diameter of Work (in.): 13.75 | Lever Ratio: 38.6:1 | Max. Work Height (in.): 16-1/8 | Press Type: Arbor Presses | Pressure (Tons): 3 | Ram Dimensions (in.): 1-1/4 x 1-1/4 | Ram Hole Dia. (in.): 1/2 | Size of Ram Face (in.): 1.25 x 1.25 | Swing (in.): 13-1/2 | Table Dimensions (in.): 7.87 | Throat Capacity (in.): 6-7/8
Features:
- Sturdy, cast-iron construction
- Rugged steel ram is driven by a machined pinion
- Base drilled for mounting on a bench or pedestal
- Includes three piece bit set - 1 pointed, 1 round and 1 square end bit, and a removable steel anvil
- The base is machine to hold the three bit set
Looking for more information about Palmgren Arbor Presss? Click here to view the Catalog.
Need help selecting the correct Palmgren Arbor Press for your application? Please call (800) 608-5210 or email info@intlairtool.com
