Palmgren 9632804 8" Rotary Tilting Cross Slide Angle Table is a versatile, precision workholding solution combining X–Y translation, 360° rotary indexing, and adjustable tilt from horizontal to vertical (0°–90°), all in one compact unit. Its 8" precision?ground table provides repeatable positioning with 0.001" accuracy on the cross slides, and the rotary dial features 3?minute graduations with a 1?minute vernier for fine angular control, while angle locks engage in 1° increments via four bolts and side plates. The worm?gear drive ensures smooth, reliable rotation, and a cast?iron base (9" × 5") with bolt lugs and a 5/8" keyway delivers secure mounting and alignment. Engineered for demanding tasks on drill presses, mills, grinders, or layout tables, it weighs about 44–45-lb and has a centerline height of roughly 5", making it both robust and portable for shop environments.

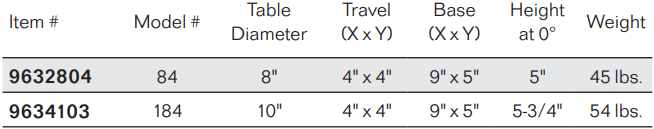

Type: Rotary Tilting Angle Table | Base Dimension (in.): 9 x 5 | Height at 0° (in.): 5 | Positioning Table Type: Cross Slide | Table Diameter (in.): 8 | Travel X x Y (in.): 4 x 4
Features:
- Accurately position work on the "X" and "Y" axis, as well as 360° table rotation
- Precision ground table top to 0 001" total indicator reading
- A 5/8" keyway and mounting lugs are provided for locating and accurate, secure mounting
- Smooth worm gear drive provides positive rotary feed
- Balanced ball crank feed handles do not exceed below the base to eliminate interference with the machine table
- 4" cross slide travel
- Cross slide dials are calibrated in 0 001" increments
- Rotary dials are graduated in 3 minute increments and 1 minute increment on the vernier
- Angular inclination from 0° horizontal to 90° vertical
- Angular position is indicated in 1° increments and locked via 4 bolts and 2 side plates
