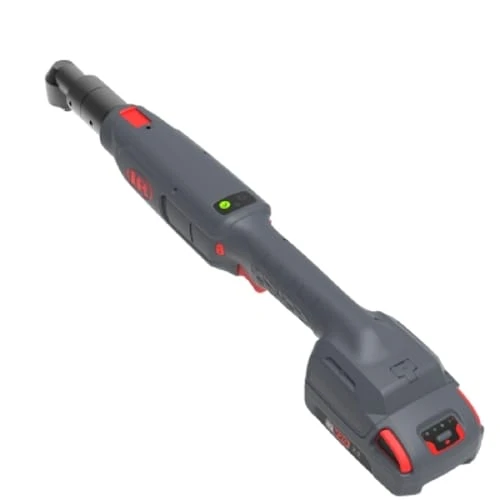

Ingersoll Rand Non-Programmable Cordless Clutch Nutrunner | QCN2A45S6 | 20 Voltage | 20 - 45 (Nm) Torque Range

Ingersoll Rand QCN2A45S6 Non-Programmable Cordless Clutch Nutrunner provides controlled tightening through a compact angle-head drive arrangement. Part of the QC Series, this 20V cordless angle nutrunner features an adjustable 20–45 Nm torque range for fastening nuts and bolts on machinery components, automotive assemblies, and industrial equipment. Its 3/8" square drive accepts matching sockets, while the angle configuration positions the drive perpendicular to the tool body, allowing access to fasteners where a straight or pistol-grip tool may be difficult to use. With a 50–200 RPM speed range, the QCN2A45S6 supports controlled fastening at higher torque settings. An auto shut-off clutch stops the tightening operation when the selected torque is reached, helping maintain consistency throughout repetitive assembly cycles.

The QCN2A45S6 operates on the Ingersoll Rand IQV20 battery platform, providing cordless movement between assembly positions without requiring an air supply. Its clutch system is rated at Cmk > 1.67 with ±10% accuracy under manufacturer-specified conditions. Cmk is a machine capability index used to assess how consistently a fastening process meets defined torque requirements. A configurable multi-color LED ring light communicates tightening status through red NOK (not OK), green OK, and white task-light indications. The Cycle Status Indicator provides additional PASS/FAIL feedback for quick verification. A brushless DC motor, locking clutch adjustment door, and dual-speed non-contact trigger support repeated fastening operations. With a weight of 3.7 lbs without battery, the tool offers a cordless angle configuration for production environments requiring controlled torque and access to confined fastening locations.

Type: Non-Programmable Cordless Clutch Nutrunner | Model: QCN2A45S6 | Series: QC Series | Tool Configuration: Angle | Voltage: 20V | Battery Platform: IQV20 | Drive: 3/8" Square | Torque Range: 20–45 Nm | Speed: 50–200 RPM | Weight Without Battery: 3.7 lbs | Length Without Battery: 510 mm | Height Without Battery: 66.3 mm | Motor: Brushless DC | Clutch: Auto Shut-Off | Setup: Non-Programmable

Features:

• Adjustable auto shut-off clutch provides controlled fastening within the 20–45 Nm torque range, supporting repeatable tightening results during assembly.
• Angle-head configuration helps operators reach nuts and bolts positioned near surrounding components or within restricted assembly spaces.
• 3/8" square drive accepts matching sockets for fastening threaded mechanical connections.
• Clutch design delivers Cmk > 1.67 at ±10% accuracy under manufacturer-specified conditions, supporting fastening process consistency.
• Lockable, tamper-proof clutch adjustment door helps prevent unintended changes to the selected torque setting.
• Non-programmable operation allows mechanical clutch adjustment without electronic fastening program setup.
• Brushless DC motor provides enhanced durability for repeated production fastening.
• Dual-speed, non-contact trigger is designed for more than one million operating cycles.
• Configurable multi-color LED ring light provides red NOK, green OK, and white task-light indications for fastening feedback and work-area visibility.
• Cycle Status Indicator provides PASS/FAIL feedback to help operators recognize tightening results.
• QC Series clutch tools are designed to withstand more than 500,000 cycles in demanding production environments.
• IQV20 battery platform compatibility allows operation with manufacturer-listed BL20212 and BL2022 batteries and the BC1121 charger.

Applications:

• Industrial machinery assembly – tightening mounting bolts, mechanical brackets, and threaded connections requiring controlled torque between 20 and 45 Nm.
• Automotive component manufacturing – fastening structural brackets, mechanical subassemblies, and equipment components where an angle-head tool improves access.
• Production equipment assembly – installing bolts on machinery frames, support structures, and mechanical assemblies with specified tightening requirements.
• Confined-space fastening operations – reaching recessed nuts and bolts or fasteners positioned close to surrounding machinery components.
• Manufacturing assembly workstations – performing repetitive nut and bolt tightening where automatic clutch shut-off and visual cycle feedback support consistent production procedures.

FAQs:

• Q: What is the torque capacity of the Ingersoll Rand QCN2A45S6?
  A: The QCN2A45S6 provides an adjustable torque range of 20–45 Nm. Its auto shut-off clutch stops the fastening operation when the selected torque is reached, making it suitable for assembly tasks requiring controlled tightening within that range.
• Q: How does the QCN2A45S6 differ from the QCN2A30S6?
  A: The QCN2A45S6 provides a 20–45 Nm torque range and operates at 50–200 RPM, while the QCN2A30S6 offers 15–30 Nm and operates at 60–300 RPM. Both models use an angle configuration and a 3/8" square drive. The QCN2A45S6 accommodates higher-torque fastening requirements.
• Q: Why choose an angle-head cordless nutrunner for assembly work?
  A: An angle-head nutrunner allows sockets to engage fasteners in locations where the surrounding equipment limits direct tool access. This configuration is particularly useful when tightening bolts on mechanical assemblies, machinery frames, and components positioned near obstructions.
• Q: Does the QCN2A45S6 require software to adjust tightening torque?
  A: No. The QCN2A45S6 uses a non-programmable, mechanically adjustable clutch. Its locking clutch adjustment door helps protect the established torque setting during repetitive operations.
• Q: What batteries are compatible with the QCN2A45S6, and is a kit available?
  A: The nutrunner uses the Ingersoll Rand IQV20 battery platform. Manufacturer-listed compatible batteries include BL20212 and BL2022, with BC1121 listed as a compatible charger. Ingersoll Rand also lists the separate QCN2A45S6-K2 battery kit. Confirm the included components for the selected SKU before ordering.
