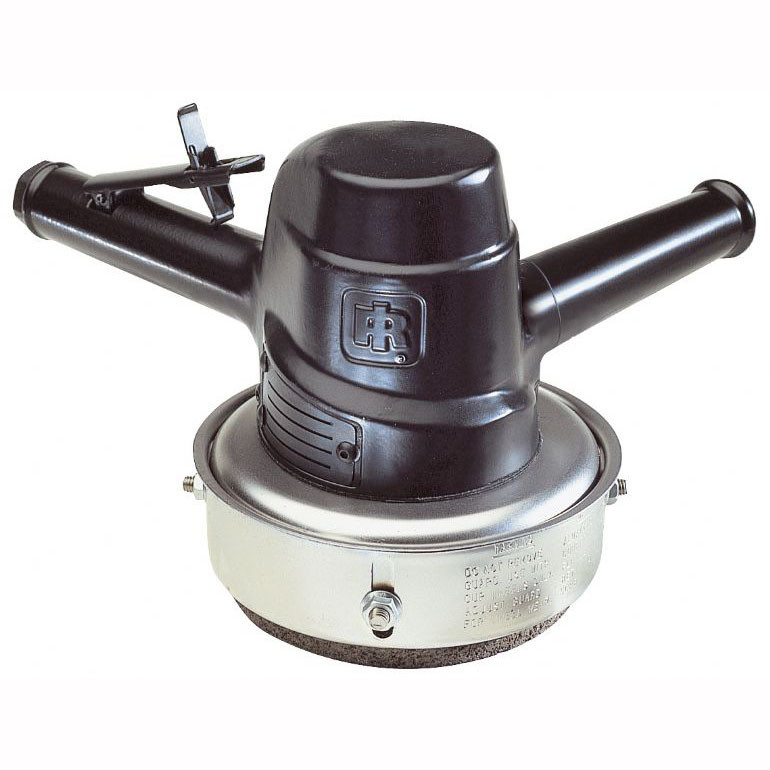

Ingersoll Rand 99V60S106 Vertical Grinder is built to deliver high material removal rates and dependable performance for demanding industrial grinding applications. Powered by a 3 HP air motor and operating at a free speed of 6,000 RPM, this vertical grinder is designed for use with compatible abrasive wheels protected by a 6-inch wheel guard. Featuring a 5/8"-11 spindle thread, the tool accommodates a wide range of grinding accessories, while the side exhaust directs discharged air away from the operator and work surface to help improve visibility and comfort during extended operation.
Engineered for heavy-duty metalworking and industrial maintenance, the 99V60S106 combines high power with durable construction for demanding fabrication, weld preparation, casting cleanup, and general grinding operations. Its vertical design offers excellent control for larger grinding wheels, making it well suited for continuous production environments.
Tool Type: Vertical Grinder | Motor Power: 3 HP | Free Speed: 6,000 RPM | Spindle Thread: 5/8"-11 | Wheel Guard: 6" | Exhaust: Side
Features:
- High-performance 3 HP air motor delivers dependable power for demanding grinding applications.
- 6,000 RPM free speed provides efficient material removal and smooth grinding performance.
- 5/8"-11 threaded spindle accepts compatible grinding wheels and abrasive accessories.
- 6-inch wheel guard helps provide protection when using approved grinding wheels.
- Side exhaust directs discharged air away from the operator and workpiece for improved comfort and visibility.
- Vertical grinder configuration provides excellent control for heavy-duty grinding and surface preparation tasks.
Applications:
- Heavy-duty metal grinding and material removal.
- Weld blending, beveling, and surface preparation.
- Foundry and casting cleanup operations.
- Industrial fabrication and steel processing.
- Maintenance, repair, and general-purpose grinding applications.
FAQs:
- Q: What size grinding wheels can this tool accommodate?
A: The 99V60S106 is supplied with a 6-inch wheel guard and is intended for use with compatible grinding wheels that match the guard size and spindle specifications. - Q: What does the 5/8"-11 spindle thread mean?
A: The 5/8"-11 threaded spindle is a common mounting size that accepts compatible grinding wheels and abrasive accessories designed for that thread specification. - Q: What is the advantage of the side exhaust?
A: The side exhaust helps direct discharged air away from the operator and work surface, improving comfort and helping keep debris from the immediate work area. - Q: What types of applications is this vertical grinder designed for?
A: It is intended for heavy-duty grinding, weld preparation, fabrication, foundry work, casting cleanup, and other industrial material removal applications.
| SKU | Horsepower - HP | Free Speed - RPM | Exhaust | Output | Weight - LB (KG) | Length - IN (MM) | Side to Center - IN (MM) | Wheel Size - IN (MM) | Vibration - M/S² | Air Consumption - CFM |
|---|---|---|---|---|---|---|---|---|---|---|
| 88V60S106 | 2.1 | 6,000 | Side | 5/8"-11 spindle, 6" guard |
8.4 (3.8) |
6.1" (155) |
2.1" (53) |
5" or 6" (127 or 152) |
0.8 | 61 |
| 99V45S106 | 2.5 | 4,500 | Side | 5/8"-11 spindle, 6" guard |
10.8 (4.9) |
6.9" (175) |
2.9" (74) |
5" or 6" (127 or 152) |
1.1 | 70 |
| 99V60S106 | 3.0 | 6,000 | Side | 5/8"-11 spindle, 6" guard |
10.8 (4.9) |
6.9" (175) |
2.9" (74) |
5" or 6" (127 or 152) |
0.6 | 84 |
Looking for more information about the Ingersoll Rand Grinder? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Grinders for your application, please call (800) 608-5210 or email info@intlairtool.com
