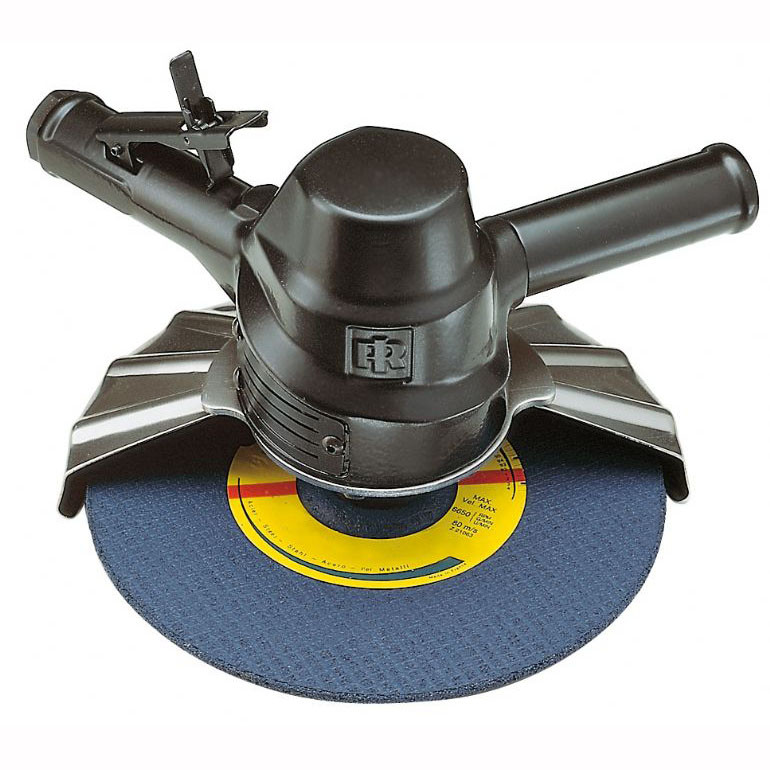

Ingersoll Rand 88V60P107 Vertical Air Grinder | 2.1 HP | 6,000 RPM | 5/8" - 11 Thread, 7" Guard | Side Exhaust

Ingersoll Rand 88V60P107 Vertical Air Grinder is designed for industrial grinding and surface preparation applications requiring a vertical tool configuration and increased motor power. Featuring a 2.1 HP motor, 6,000 RPM free speed, and a 7" guard with 5/8"-11 spindle thread, this vertical grinder provides the power and configuration needed for compatible abrasive wheel applications involving material removal, blending, and surface finishing.

Ingersoll Rand 88V60P107 uses a vertical design to provide a different operating orientation than angle grinders, helping operators position the tool for specific grinding tasks. Its side exhaust design directs discharged air away from the rear of the tool, while the 6,000 RPM operating speed supports compatible larger abrasive wheel applications where controlled grinding performance is required.

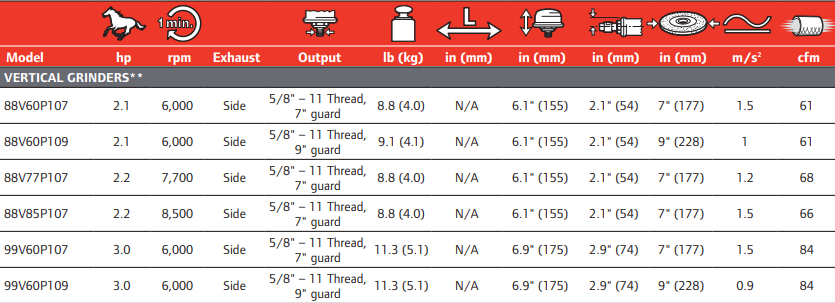

Type: Vertical Air Grinder | Series: 88V Series | Motor Power: 2.1 HP | Free Speed: 6,000 RPM | Spindle Thread: 5/8"-11 | Guard Size: 7" | Exhaust: Side Exhaust

Features:

• 2.1 HP pneumatic motor provides power for compatible grinding and surface preparation operations.
• 6,000 RPM free speed supports controlled grinding with compatible abrasive wheels.
• 5/8"-11 spindle thread allows use with abrasive accessories designed for this mounting configuration.
• 7" guard accommodates compatible grinding wheel sizes.
• Vertical configuration provides an alternative tool orientation for specific grinding applications and operator positioning requirements.
• Side exhaust directs discharged air away from the rear of the tool during operation.
• Pneumatic operation supports industrial grinding environments where compressed air power is available.

Applications:

• Metal fabrication — grinding welds, removing excess material, and preparing metal surfaces with compatible abrasives.
• Heavy equipment maintenance — supporting material removal and surface cleanup on industrial machinery and components.
• Manufacturing operations — performing grinding and finishing work where a vertical grinder configuration is preferred.
• Foundry and industrial processing environments — handling surface preparation tasks requiring pneumatic grinding power.
• General metalworking — blending, smoothing, and preparing surfaces before additional fabrication or finishing processes.

FAQs:

• Q: What grinding wheel size is the Ingersoll Rand 88V60P107 designed for?
  A: The tool is specified with a 7" guard and 5/8"-11 spindle thread. Use only compatible abrasive accessories that match the grinder specifications and rated operating speed.
• Q: What is the advantage of a vertical air grinder configuration?
  A: A vertical grinder provides a different operating orientation than angle-style grinders and can be beneficial for applications where this tool position improves access, control, or operator positioning.
• Q: How does the 88V60P107 differ from the 77A60P107 angle grinder?
  A: Both models are specified with a 1.5 HP or higher industrial grinding configuration, 6,000 RPM speed, 5/8"-11 spindle thread, 7" guard, and side exhaust. The 88V60P107 is a vertical grinder with a 2.1 HP motor, while the 77A60P107 is an angle grinder with a 1.5 HP motor.
• Q: What is the purpose of the side exhaust design?
  A: Side exhaust directs discharged air away from the rear of the tool, which can help support operator comfort depending on the work position and application setup.
• Q: What should be checked before using this vertical air grinder?
  A: Inspect the abrasive accessory, guard, spindle connection, air supply condition, and overall tool condition before operation. Always use accessories compatible with the grinder specifications and follow applicable safety procedures.

Looking for more information about the Ingersoll Rand Grinder? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Grinders for your application, please call (800) 608-5210 or email info@intlairtool.com
