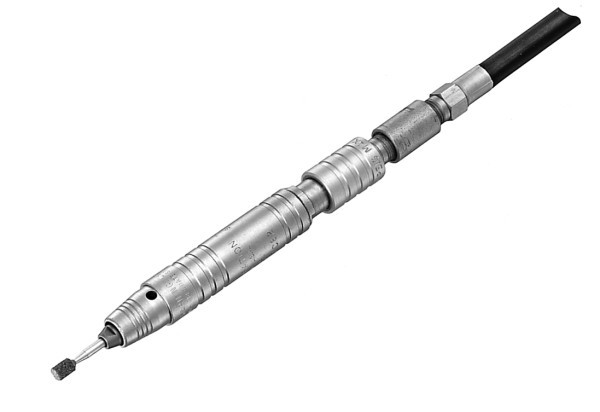

Ingersoll Rand 7978 Pencil Grinder | 0.10 HP | 60,000 RPM | 1/8" Collet Size | Front Exhaust

Ingersoll Rand 7978 Pencil Grinder is designed for precision grinding, deburring, polishing, and finishing applications where a compact pneumatic tool and high rotational speed are required. Featuring a 0.10 HP motor, 60,000 RPM free speed, and a 1/8" collet size, this pencil-style grinder provides a lightweight solution for detailed surface preparation work using compatible mounted abrasive accessories.

Ingersoll Rand 7978 combines high-speed operation with a slim pencil grinder design to help operators access smaller or detailed work areas. Its front exhaust configuration directs discharged air forward during operation, while the 1/8" collet provides compatibility with appropriately sized mounted points and abrasive accessories rated for the tool's operating speed.

Type: Pencil Grinder | Motor Power: 0.10 HP | Free Speed: 60,000 RPM | Collet Size: 1/8" | Exhaust: Front Exhaust

Features:

• 0.10 HP pneumatic motor provides power for precision grinding and finishing applications.
• 60,000 RPM free speed supports detailed work requiring high rotational speed.
• 1/8" collet accepts compatible mounted abrasive accessories.
• Pencil-style design provides access to smaller work areas and detailed surface preparation points.
• Front exhaust directs discharged air forward during operation.
• Compact pneumatic configuration supports controlled handling for precision applications.
• Air-powered operation is suitable for industrial environments using properly conditioned compressed air.

Applications:

• Precision deburring — removing small burrs and sharp edges from compatible metal components.
• Die and mold finishing — performing detailed grinding and surface refinement in smaller work areas.
• Metal fabrication — completing fine finishing tasks after cutting, machining, or welding operations.
• Aerospace and manufacturing applications — supporting precision surface preparation where compact tool access is needed.
• General maintenance and finishing — handling detailed grinding, polishing, and cleanup work with compatible abrasive accessories.

FAQs:

• Q: What accessories can be used with the Ingersoll Rand 7978 Pencil Grinder?
  A: The tool is specified with a 1/8" collet. Use only compatible mounted abrasive accessories that match the collet size and are rated for the grinder's 60,000 RPM operating speed.
• Q: What is the advantage of a 60,000 RPM pencil grinder?
  A: The high rotational speed is suited for detailed grinding, deburring, and finishing applications requiring precise material removal with appropriately rated accessories.
• Q: What does the front exhaust design do?
  A: Front exhaust directs discharged air forward during operation. Exhaust direction can be a consideration when selecting a tool for a specific workstation or application setup.
• Q: How does a pencil grinder differ from a standard die grinder?
  A: Pencil grinders are typically designed for precision work in smaller areas and use smaller accessories, while standard die grinders are generally used for broader grinding and material removal tasks.
• Q: What should be checked before using this pencil grinder?
  A: Inspect the accessory, collet condition, air supply, and overall tool condition before operation. Always verify that accessories are compatible with the tool specifications and rated operating speed.
