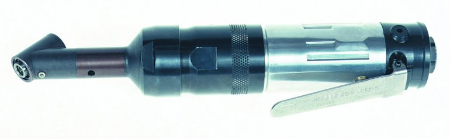

Designed for precision drilling in manufacturing, fabrication, and assembly environments, the Ingersoll Rand 5LL1 Inline Air Drill delivers 39.8 in-lb maximum torque with a 2,300 RPM free speed to provide an ideal balance of drilling speed and controlled power. Its inline configuration aligns the pneumatic motor directly behind the spindle, giving operators excellent balance and straight-line drilling control for improved accuracy during repetitive production operations.
The 5LL1 is engineered for continuous-duty industrial service where reliability, repeatability, and operator comfort are essential. Its moderate operating speed and dependable torque make it well suited for drilling a wide range of hole sizes in metal, composites, plastics, and similar materials. The lightweight inline design helps minimize operator fatigue during extended production shifts while delivering the consistent pneumatic performance expected from Ingersoll Rand industrial tools.
Type: Inline Air Drill | Model: 5LL1 | Configuration: Inline | Maximum Torque: 39.8 in-lb | Free Speed: 2,300 RPM | Power Source: Pneumatic
Features:
- 2,300 RPM free speed provides an effective balance of drilling speed and control for industrial applications.
- 39.8 in-lb maximum torque delivers dependable performance for precision drilling across a variety of materials.
- Inline configuration promotes excellent balance and improved straight-line drilling accuracy.
- Pneumatic motor provides reliable performance for continuous-duty manufacturing environments.
- Lightweight, streamlined construction helps reduce operator fatigue during repetitive drilling tasks.
- Designed for consistent drilling performance in production, fabrication, and assembly operations.
- Suitable for industrial manufacturing, machinery assembly, maintenance, and metalworking applications.
- Engineered for dependable operation in demanding production environments.

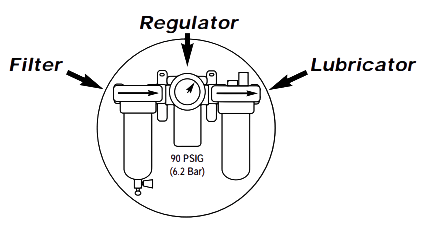

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Made in USA:
Applications:
- Production drilling in automotive and industrial manufacturing facilities.
- Metal fabrication and component assembly operations.
- Machinery, equipment, and enclosure manufacturing.
- Maintenance, repair, and overhaul (MRO) applications.
- General-purpose industrial drilling requiring dependable pneumatic performance.
FAQs:
- Q: What are the benefits of an inline air drill?
A: The inline design positions the motor directly behind the spindle, providing improved balance, better drilling control, and increased accuracy during repetitive industrial drilling operations. - Q: Why does the 5LL1 operate at 2,300 RPM?
A: The 2,300 RPM free speed provides a practical balance between drilling speed and available torque, making it suitable for a broad range of production drilling applications. - Q: What applications is the 5LL1 designed for?
A: It is intended for manufacturing, fabrication, machinery assembly, industrial maintenance, and production drilling where reliable pneumatic performance is required. - Q: Can this drill be used continuously in industrial environments?
A: Yes. When supplied with clean, dry, properly regulated compressed air, the pneumatic motor is designed to provide dependable continuous-duty operation.

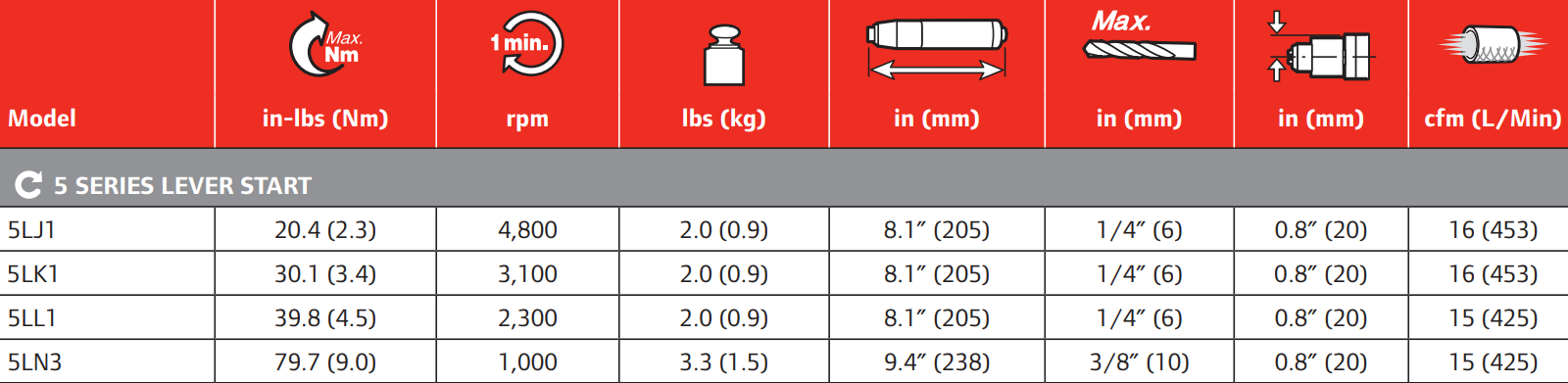

| SKU | Max Torque in-lbs (Nm) |
Free Speed rpm |
Weight lbs (kg) |
Length in (mm) |
Bit Holder Capacity in (mm) |
Side to Center in (mm) |
Air Consumption cfm (L/Min) |
|---|---|---|---|---|---|---|---|
| ⟳ 5 SERIES LEVER START | |||||||
| 5LJ1 | 20.4 (2.3) | 4,800 | 2.0 (0.9) | 8.1" (205) | 1/4" (6) | 0.8" (20) | 16 (453) |
| 5LK1 | 30.1 (3.4) | 3,100 | 2.0 (0.9) | 8.1" (205) | 1/4" (6) | 0.8" (20) | 16 (453) |
| 5LL1 | 39.8 (4.5) | 2,300 | 2.0 (0.9) | 8.1" (205) | 1/4" (6) | 0.8" (20) | 15 (425) |
| 5LN3 | 79.7 (9.0) | 1,000 | 3.3 (1.5) | 9.4" (238) | 3/8" (10) | 0.8" (20) | 15 (425) |
| ⟳ 6 SERIES LEVER START | |||||||
| 6LH1 | 23 (2.6) | 6,000 | 2.1 (1.0) | 7.9" (201) | 1/4" (6) | 0.8" (20) | 20 (560) |
| 6LJ1 | 27.4 (3.1) | 5,100 | 2.1 (1.0) | 7.9" (201) | 1/4" (6) | 0.8" (20) | 20 (560) |
| 6LK1 | 45.1 (5.1) | 3,100 | 2.1 (1.0) | 7.9" (201) | 1/4" (6) | 0.8" (20) | 20 (560) |
| 6LL1 | 64.6 (7.3) | 2,150 | 2.1 (1.0) | 7.9" (201) | 1/4" (6) | 0.8" (20) | 20 (560) |
| 6LR3 | 222.2 (25.1) | 500 | 2.9 (1.3) | 9.2" (233) | 3/8" (10) | 0.8" (20) | 20 (560) |
Looking for more information about the Ingersoll Rand Drill? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Drills for your assembly application, please email info@intlairtool.com or call (800) 608-5210
