Built for drilling in restricted work areas where conventional drills cannot reach, the Ingersoll Rand 5LK1B1 industrial angle drill delivers 0.40 HP, a fast 3,000 RPM free speed, and up to 31 in-lbs of maximum torque for efficient drilling in light to medium-duty industrial applications. Its 45° small angle head provides improved access around obstructions while maintaining a more direct drilling approach than a traditional 90-degree angle drill, and the lever-start throttle offers responsive speed control for accurate hole placement.
Designed for continuous industrial service, the 5LK1B1 combines a compact pneumatic motor with a low-profile angled head to improve maneuverability in confined spaces. The higher operating speed makes it well suited for production drilling where faster material penetration is desired, while the lightweight angle-head configuration helps technicians work comfortably in machinery, fabrication assemblies, and maintenance applications with limited clearance.
Type: Industrial Angle Drill | Power: 0.40 HP | Configuration: 45° Small Angle Head | Free Speed: 3,000 RPM | Maximum Torque: 31 in-lbs | Throttle: Lever-Start
Features:
- 45° small angle head provides improved access when drilling around machinery, fixtures, and structural components.
- 0.40 HP pneumatic motor delivers dependable performance for repetitive industrial drilling operations.
- 3,000 RPM free speed supports faster drilling in production and maintenance applications.
- Lever-start throttle offers responsive speed control for improved drilling accuracy and operator control.
- Compact angle-head configuration improves maneuverability in restricted work areas.
- Pneumatic operation is suitable for continuous-duty manufacturing and industrial maintenance environments.
- Balanced combination of speed and accessibility makes the tool well suited for repetitive assembly and fabrication work.

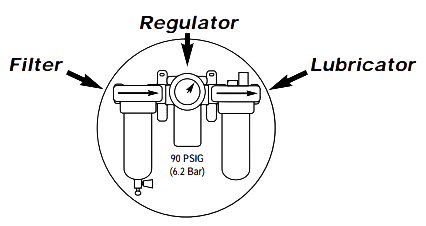

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Made in USA:
Applications:
- Drilling holes in confined machinery, equipment frames, and production fixtures.
- Maintenance and repair work where limited clearance prevents the use of straight drills.
- Production assembly operations requiring faster drilling speeds and improved accessibility.
- Metal fabrication involving brackets, structural members, and fabricated assemblies.
- Industrial manufacturing, plant maintenance, and MRO drilling applications.
FAQs:
- Q: What advantage does the 45° small angle head provide?
A: The 45° head offers improved access around obstructions while maintaining a drilling angle that is more direct than a 90° configuration, making it useful for applications with moderate clearance restrictions. - Q: Why does this drill operate at 3,000 RPM?
A: The higher free speed allows faster drilling in applications where quicker material penetration is preferred while maintaining controlled pneumatic performance. - Q: What is the benefit of the lever-start throttle?
A: The lever-start throttle provides responsive speed control, allowing operators to start holes accurately and maintain consistent drilling control. - Q: Is this drill suitable for continuous industrial operation?
A: Yes. The manufacturer's catalog identifies the 5LK1B1 as an industrial pneumatic angle drill intended for production and maintenance environments.
| SKU | Maximum Torque | Free Speed | Weight | Length | Chuck Capacity / Spindle Thread | Head Length | Side to Center | Air Consumption |
|---|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in (mm) | in (mm) | cfm (L/min) | |
| Lever Start (90° Chuck) | ||||||||
| 5LL2A41 | 60.2 (6.8) | 1,500 | 2.6 (1.2) | 9.4" (239) | 1/4" (6) | 3.0" (75) | 0.67" (15) | 15 (420) |
| 5LN2A43 | 120.4 (13.6) | 700 | 3.5 (1.6) | 10.2" (259) | 3/8" (10) | 3.6" (91) | 0.67" (15) | 15 (420) |
| Lever Start (90° Small Angle Head) | ||||||||
| 5LK1A1 | 31 (3.5) | 3,000 | 2.19 (1.0) | 9.8" (249) | 1/4"-28 * | 1.1" (28) | 0.3" (8) | 15 (420) |
| 5LL1A1 | 40 (4.5) | 2,200 | 2.19 (1.0) | 9.8" (249) | 1/4"-28 * | 1.1" (28) | 0.3" (8) | 15 (420) |
| Lever Start (45° Small Angle Head) | ||||||||
| 5LK1B1 | 31 (3.5) | 3,000 | 2.13 (1.0) | 9.75" (248) | 1/4"-28 * | – | 0.3" (8) | 15 (420) |
| Lever Start (90° Chuck) | ||||||||
| 6LK2A41 | 64.6 (7.3) | 2,000 | 2.8 (1.3) | 9.5" (241) | 1/4" (6) | 3.0" (75) | 0.5" (14) | 20 (560) |
| 6LL2A42 | 94.7 (10.7) | 1,400 | 2.8 (1.3) | 9.5" (242) | 3/8" (10) | 3.2" (81) | 0.5" (14) | 20 (560) |
| 6LP3A43 | 192.1 (21.7) | 600 | 3.7 (1.7) | 10.6" (270) | 3/8" (10) | 3.9" (99) | 0.7" (18) | 20 (560) |
| 6LR3A44 | 320.4 (36.2) | 400 | 4.0 (1.8) | 10.7" (272) | 1/2" (13) | 4.1" (105) | 0.7" (18) | 20 (560) |
| Lever Start (90° Small Angle Head) | ||||||||
| 6LL1A1 | 64 (7.3) | 2,150 | 2.13 (0.95) | 9.69" (246) | 1/4"-28 * | 1.1" (28) | 0.3" (8) | 20 (560) |
Looking for more information about the Ingersoll Rand Drill? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
