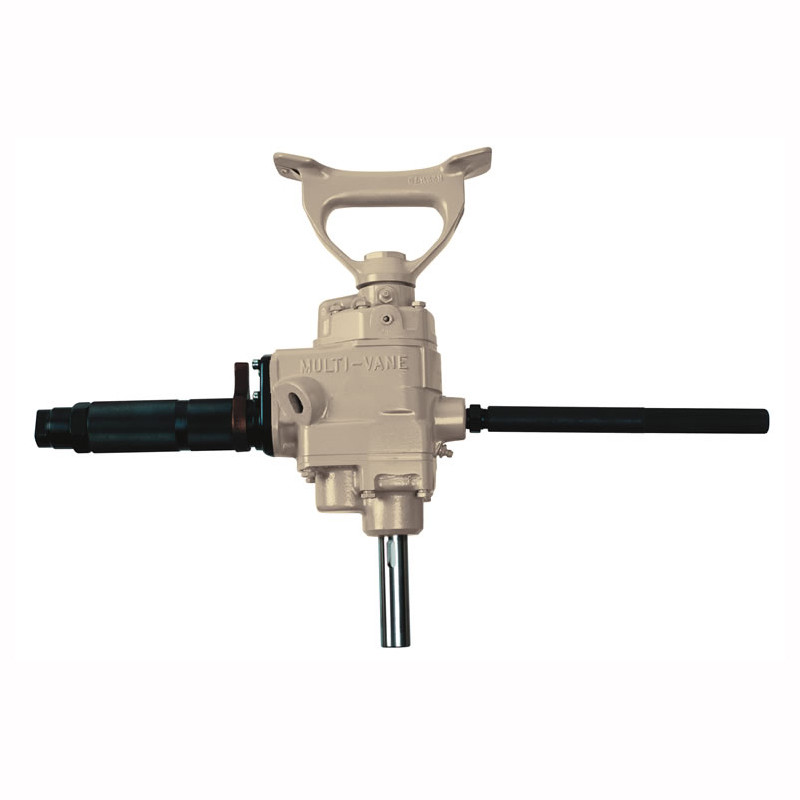

Ingersoll Rand 22JA1 Large Air Drill from the 22 Series is a powerful pneumatic drilling tool engineered for industrial, fabrication, and heavy-duty maintenance applications. Powered by a robust 1.75 max HP motor, it delivers a steady 1025 RPM to provide smooth, reliable drilling performance in metals, wood, composites, and other materials. Its durable construction and precision-built air motor ensure long service life and consistent operation in demanding work environments. The ergonomic design enhances operator comfort and control during extended use, while the high torque output makes it suitable for large-bore drilling tasks in construction, shipbuilding, and manufacturing settings. Ideal for professional mechanics, maintenance technicians, and industrial tradespeople, the 22JA1 offers strength, efficiency, and dependable performance for tough drilling jobs.

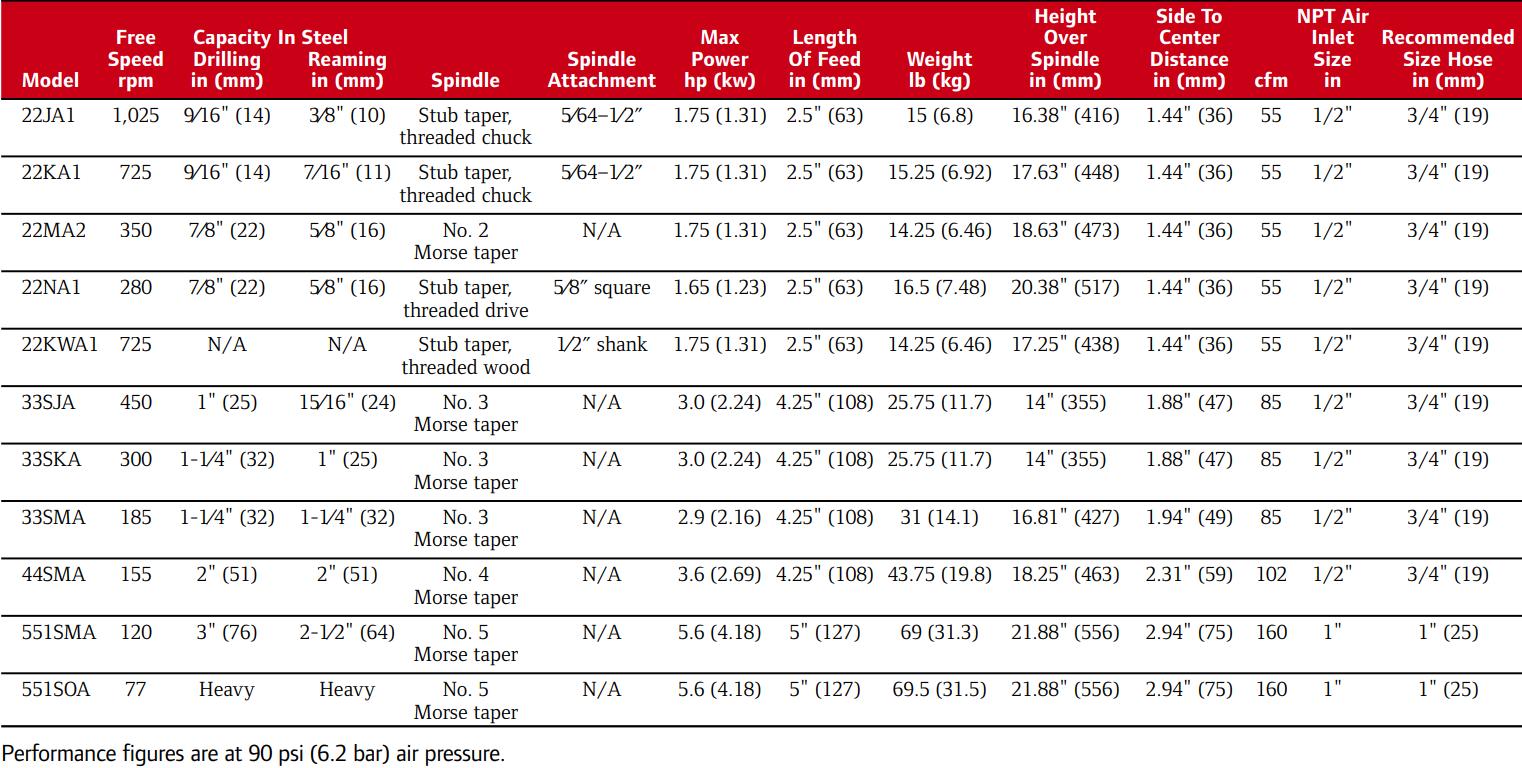

Type: Drill | Drilling Capacity (in.): 9/16 | Spindle: Stub Taper, Threaded Chuck | Spindle Attachment (in.): 5/64 - 1/2 | Max Power (hp): 1.75 | Length of Feed (in.): 2.5 | Height Over Spindle (in.): 16.38 | Side to Center (in.): 1.44 | Air Consumption (CFM): 55 | Air Inlet Size (in.): 1/2 NPT | Recom. Hose Size (in.): 3/4 | Free Speed (RPM): 1025
Features:
- Ball bearing support for long life and efficient operation
- Durable spur gearing
- Governed motor regulates the air to the motor to keep the drill working at the peak of the power curve
Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator (FRL)
