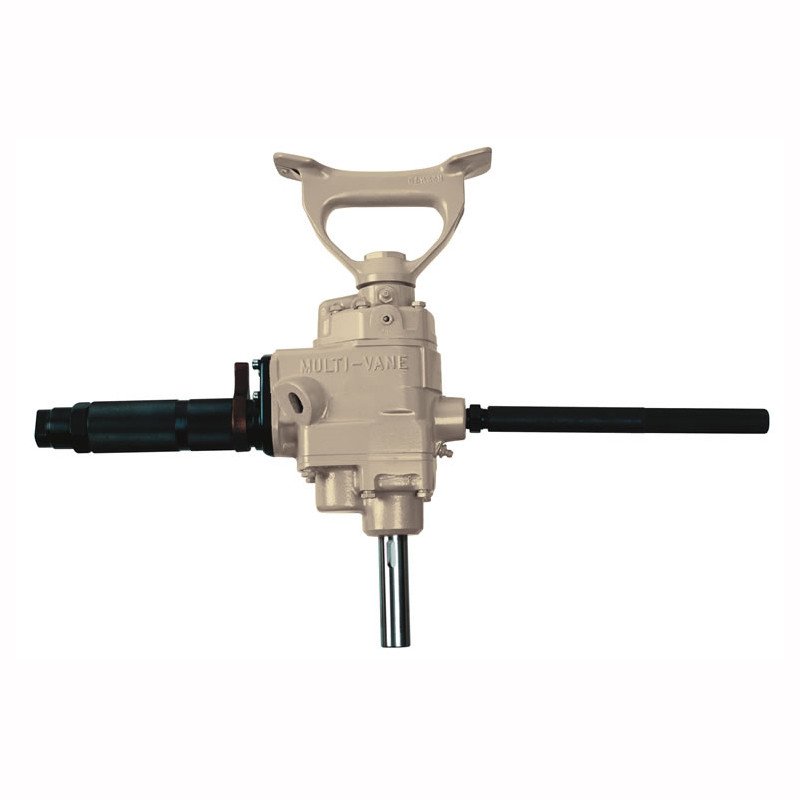

Ingersoll Rand 22MA2 Large Air Drill is designed for demanding industrial drilling applications that require maximum torque at lower operating speeds. As part of the 22 Series, this pneumatic drill delivers up to 1.75 HP with a 350 RPM free speed, making it well suited for drilling larger diameter holes in structural steel, heavy equipment, fabrication, shipbuilding, and industrial maintenance operations. Its durable construction is engineered to provide dependable performance in continuous-duty production environments.
22MA2 combines a powerful air motor with a low-speed operating range to maximize torque for demanding drilling tasks. Pneumatic operation makes it ideal for facilities with compressed air systems while eliminating the need for electric power at the point of use. Designed for professional industrial applications, this large air drill delivers reliable performance for repetitive heavy-duty drilling operations.
Type: Large Air Drill | Series: 22 Series | Model: 22MA2 | Maximum Power: 1.75 HP | Free Speed: 350 RPM
Features:
- 22 Series large pneumatic drill designed for demanding industrial drilling applications.
- 1.75 horsepower air motor provides dependable power for heavy-duty drilling operations.
- 350 RPM free speed delivers increased torque for larger drill bits and demanding drilling applications.
- Pneumatic operation is well suited for continuous production environments where compressed air is readily available.
- Designed for repetitive industrial drilling in fabrication, maintenance, manufacturing, and repair facilities.
- Heavy-duty construction supports reliable operation in challenging industrial work environments.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Applications:
- Structural steel fabrication and assembly.
- Heavy equipment manufacturing and repair.
- Industrial plant maintenance and shutdown work.
- Shipbuilding and marine fabrication.
- Heavy-duty metal drilling applications requiring higher torque at lower speeds.
FAQs:
- Q: What makes the 22MA2 suitable for demanding drilling applications?
A: The combination of a 1.75 HP air motor and a low 350 RPM free speed is intended to provide higher torque for heavy-duty industrial drilling tasks. - Q: What materials is this drill commonly used on?
A: It is commonly used for drilling metal components in structural steel fabrication, heavy equipment manufacturing, maintenance, and industrial production environments. - Q: Is this drill designed for continuous industrial use?
A: Yes. The 22 Series is intended for demanding industrial drilling applications where reliable pneumatic performance is required. - Q: What advantage does pneumatic operation provide?
A: Pneumatic operation allows dependable performance in facilities with compressed air while eliminating the need for electric power at the work location. - Q: Does the catalog confirm chuck capacity or spindle specifications?
A: No. Those specifications were not confirmed in the provided source and have therefore been omitted.
| SKU | Free Speed | Capacity In Steel Drilling | Capacity In Steel Reaming | Spindle | Spindle Attachment | Max Power | Length Of Feed | Weight | Height Over Spindle | Side To Center Distance | CFM | Inlet Size | NPT Air Recommended Size Hose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | IN (MM) | IN (MM) | HP (KW) | IN (MM) | LB (KG) | IN (MM) | IN (MM) | IN | IN (MM) | ||||
| 22JA1 | 1,025 | 9/16” (14) | 3/8” (10) | Stub taper, threaded chuck | 5/64–1/2” | 1.75 (1.31) | 2.5” (63) | 15 (6.8) | 16.38” (416) | 1.44” (36) | 55 | 1/2” | 3/4” (19) |
| 22KA1 | 725 | 9/16” (14) | 7/16” (11) | Stub taper, threaded chuck | 5/64–1/2” | 1.75 (1.31) | 2.5” (63) | 15.25 (6.92) | 17.63” (448) | 1.44” (36) | 55 | 1/2” | 3/4” (19) |
| 22MA2 | 350 | 7/8” (22) | 5/8” (16) | No. 2 Morse taper | N/A | 1.75 (1.31) | 2.5” (63) | 14.25 (6.46) | 18.63” (473) | 1.44” (36) | 55 | 1/2” | 3/4” (19) |
| 22NA1 | 280 | 7/8” (22) | 5/8” (16) | Stub taper, threaded drive | 5/8” square | 1.65 (1.23) | 2.5” (63) | 16.5 (7.48) | 20.38” (517) | 1.44” (36) | 55 | 1/2” | 3/4” (19) |
| 22KWA1 | 725 | N/A | N/A | Stub taper, threaded wood | 1/2” shank | 1.75 (1.31) | 2.5” (63) | 14.25 (6.46) | 17.25” (438) | 1.44” (36) | 55 | 1/2” | 3/4” (19) |
| 33SJA | 450 | 1” (25) | 15/16” (24) | No. 3 Morse taper | N/A | 3.0 (2.24) | 4.25” (108) | 25.75 (11.7) | 14” (355) | 1.88” (47) | 85 | 1/2” | 3/4” (19) |
| 33SKA | 300 | 1-1/4” (32) | 1” (25) | No. 3 Morse taper | N/A | 3.0 (2.24) | 4.25” (108) | 25.75 (11.7) | 14” (355) | 1.88” (47) | 85 | 1/2” | 3/4” (19) |
| 33SMA | 185 | 1-1/4” (32) | 1-1/4” (32) | No. 3 Morse taper | N/A | 2.9 (2.16) | 4.25” (108) | 31 (14.1) | 16.81” (427) | 1.94” (49) | 85 | 1/2” | 3/4” (19) |
| 44SMA | 155 | 2” (51) | 2” (51) | No. 4 Morse taper | N/A | 3.6 (2.69) | 4.25” (108) | 43.75 (19.8) | 18.25” (463) | 2.31” (59) | 102 | 1/2” | 3/4” (19) |
| 551SMA | 120 | 3” (76) | 2-1/2” (64) | No. 5 Morse taper | N/A | 5.6 (4.18) | 5” (127) | 69 (31.3) | 21.88” (556) | 2.94” (75) | 160 | 1” | 1” (25) |
| 551SOA | 77 | Heavy | Heavy | No. 5 Morse taper | N/A | 5.6 (4.18) | 5” (127) | 69.5 (31.5) | 21.88” (556) | 2.94” (75) | 160 | 1” | 1” (25) |
Looking for more information about Ingersoll Rand Drill? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Drills, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Drill
- RPM
- 350
- Drilling Capacity (in.)
- 7/8
- Spindle
- No. 2 Morse Taper
- Power (hp)
- 1.75
- Length of Feed (in.)
- 2.5
- Height Over Spindle (in.)
- 18.63
- Side to Center (in.)
- 1.44
- Air Consumption (CFM)
- 55
- Air Inlet
- 1/2" NPT
- Hose Size (in.)
- 3/4
