Chicago Pneumatic CP6135-D80 Impact Wrench | 1-1/2" Drive | Max torque 5900 Ft Lbs | 2800 RPM

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Chicago Pneumatic

Chicago Pneumatic CP6135-D80 Impact Wrench | 1-1/2" Drive | Max torque 5900 Ft Lbs | 2800 RPM

List Price: $9,401.39
$7,521.11
(You save $1,880.28 )
Availability:
Usually Ships Within 4 to 6 Weeks of Order | Contact Customer Service for Details
SKU:
6151590380
Shipping:
Calculated at Checkout
Weight:
44.12 LBS
Condition:
New
Adding to cart… The item has been added
Description


Chicago Pneumatic CP6135-D80 Impact Wrench delivers smooth operation and excellent durability. It offers monster power for the lightweight and compact size. It is of premium quality for the most demanding applications, all maintenance applications and general repairs. It features a durable Pinless Rocking Dog clutch for improved performance. It has robust aluminum body & Steel clutch housing. The reversible and teasing steel trigger ensures smooth operation. With 5900 ft.lbs - 8000 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 740 to 4055 ft./lbs. This product weighs 35.3 lbs, measures 16 inches long, and has a 1-1/2 output drive.

Type: Impact Wrench | Drive Size (in.): 1-1/2 | Impact Mecanism: Pinless rocking dog | Blows Per Minute (BPM): 750 | Free Speed (RPM): 2800 | Working Torque Range (ft-lbs): 740-4,055 | Working Torque Range (fwd) (Nm): 1000-5500 | Max Reverse Torque (ft-lbs): 5900 | Max Reverse Torque (Nm): 8000 | Length (in.): 16.06 | Length (mm): 408 | Air Consumption @ Load (CFM): 84.5 | Air Consumption @ Load (l/s): 40 | Vibration Level (a): 15.1 | Vibration Level (k): 2.2 | Sound Pressure (dbA): 101.5 | Sound Power (dbA): 112.5 | Air Inlet Size (in.): 1/2 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10

Features:

  • Durable Pinless Rocking Dog clutch
  • Robust aluminum body & Steel clutch housing
  • Reversible and teasing steel trigger

Benefits:

  • Monster Power for the light weight and compact size
  • Premium quality for the most demanding applications
  • Smooth operation thanks to the teasing trigger

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Wrench? Click here to view the Catalog.

For help choosing the correct Chicago Pneumatic Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com

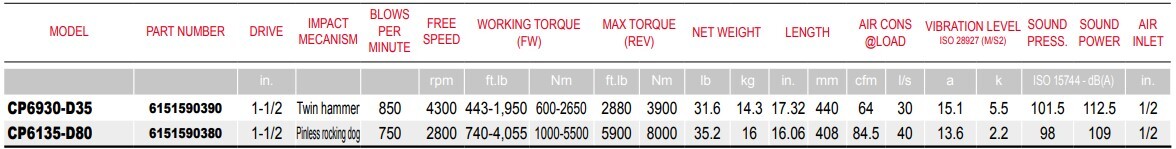

Specifications
Type:
Impact Wrench
Drive Size (in.):
1-1/2
Impact Mecanism:
Pinless rocking dog
Blows Per Minute (BPM):
750
Free Speed (RPM):
2800
Working Torque Range (ft-lbs):
740-4,055
Working Torque Range (fwd) (Nm):
1000-5500
Max Reverse Torque (ft-lbs):
5900
Max Reverse Torque (Nm):
8000
Length (in.):
16.06
Length (mm):
408
Air Consumption @ Load (CFM):
84.5
Air Consumption @ Load (l/s):
40
Vibration Level (a):
15.1
Vibration Level (k):
2.2
Sound Pressure (dbA):
101.5
Sound Power (dbA):
112.5
Air Inlet Size (in.):
1/2
Min Hose Size (in.):
3/8
Min Hose Size (mm):
10
Warranty Information
Chicago Pneumatic warrants its tools to be free from defects inherent in their manufacture for a period of twelve months.
California Proposition 65 Warning

warning WARNING: This or other products sold on this website may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov
