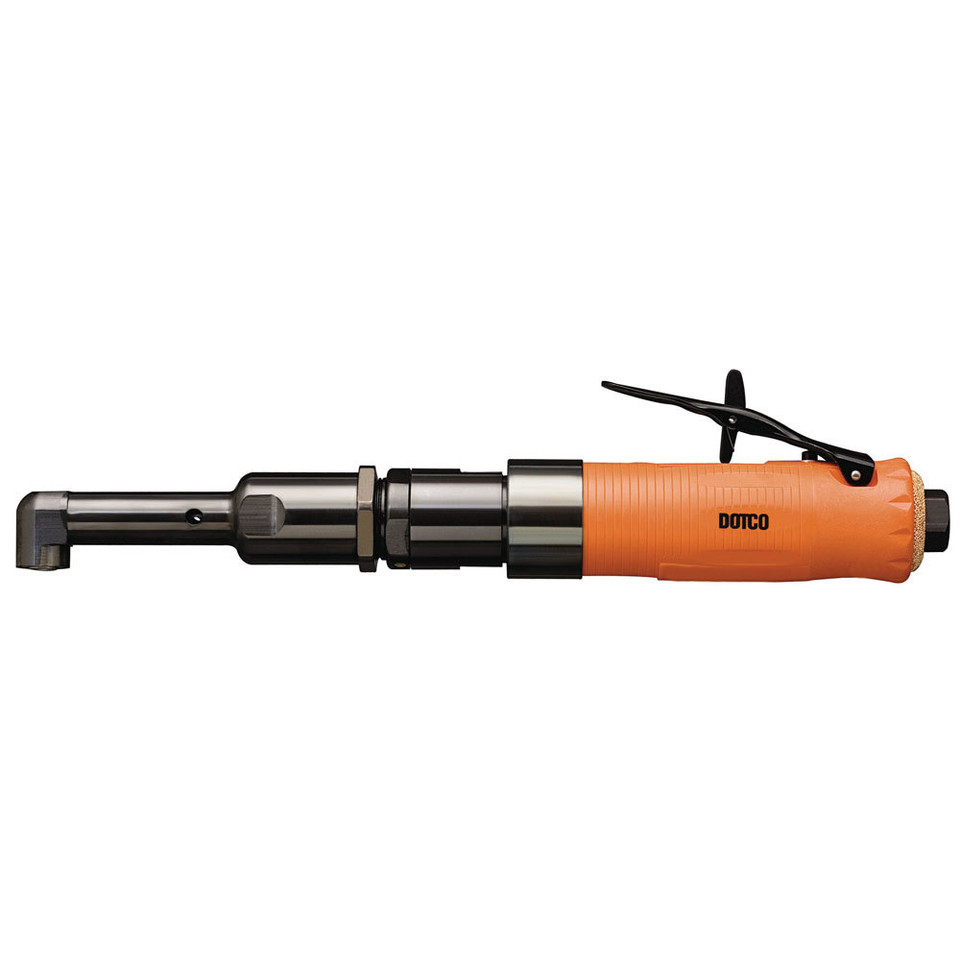

Dotco 15LF285-52 Heavy Duty Head Right Angle Pneumatic Drill | 15LF Series | 0.4 HP | 700 RPM | Composite Housing | Rear Exhaust

Built for controlled drilling in tight-access production areas, the Dotco 15LF285-52 heavy duty head right angle pneumatic drill pairs a compact 90-degree head with 0.4 HP output and a low 700 RPM free speed for applications where torque control and bit stability matter more than high-speed drilling. As part of the 15LF Series, this model is suited for aerospace assembly, industrial maintenance, fabrication, and manufacturing work where a straight drill cannot easily reach around fixtures, structures, or equipment.

The heavy duty right angle head helps the tool withstand repetitive drilling use in confined spaces, while the composite housing supports easier handling during longer work periods. Rear exhaust directs spent air away from the work surface, helping reduce chip disturbance near the drilling point. The 700 RPM speed is especially useful when drilling larger holes, working with tougher materials, or performing operations that require slower, more deliberate tool control.

Type: Right Angle Pneumatic Drill | Series: 15LF Series | Model: 15LF285-52 | Power: 0.4 HP | Free Speed: 700 RPM | Head Style: Heavy Duty Right Angle | Housing: Composite | Exhaust: Rear Exhaust

Features:

• Heavy duty right angle head improves drilling access in restricted work areas.
• 0.4 HP pneumatic motor provides steady power for controlled industrial drilling.
• 700 RPM free speed supports lower-speed drilling where control and bit stability are important.
• Composite housing helps reduce tool weight for easier handling during repetitive tasks.
• Rear exhaust routes discharged air away from the drilling point and work surface.
• Compact right angle configuration reaches around fixtures, panels, frames, and equipment.

Made in USA:

Applications:

• Aerospace assembly and repair work requiring low-speed drilling in confined areas.
• Industrial maintenance and MRO drilling around machinery, brackets, housings, and fixtures.
• Metal fabrication tasks where slower drill speed improves control on larger holes.
• Production assembly operations involving restricted-access drilling points.
• General manufacturing environments where a compact right angle drill is needed for controlled hole-making.

FAQs:

• Q: Why choose the 700 RPM version of the Dotco 15LF Series drill?
  A: The lower free speed provides greater control for larger drill bits, tougher materials, and applications where smooth, deliberate drilling is preferred over fast hole production.
• Q: What does the right angle head do?
  A: The 90-degree head positions the drilling axis perpendicular to the tool body, allowing the drill to reach tight spaces that straight or pistol-grip drills may not access.
• Q: What is the benefit of rear exhaust?
  A: Rear exhaust directs spent air away from the workpiece, helping reduce chip movement and keeping the drilling area clearer.
• Q: Is this drill appropriate for production environments?
  A: Yes, when the tool’s speed, power, and configuration match the material and drilling requirements, it is suitable for repetitive industrial assembly, maintenance, and fabrication work.
