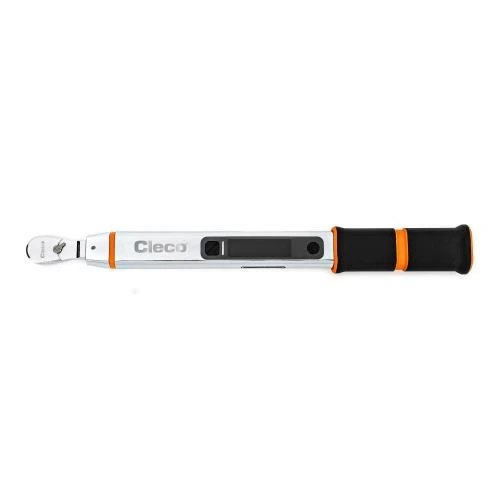

Built for controlled fastening in production, quality, service, and assembly environments, the Cleco ETWA25IC Advanced Electronic Torque Wrench gives technicians a compact electronic torque solution with a 4 - 18 ft-lbs torque range, equivalent to 5 - 25 Nm, for low-torque fastening where repeatability matters more than raw force. The interchangeable head configuration accepts the supplied fixed and flex heads, helping the wrench adapt to access angles, socket positions, and repeat fastening points on small assemblies.
The ETWA25IC combines digital torque and angle measurement with operator feedback, including a vibrating handle, buzzer, and tracking LED light to help signal when the target is reached. Its 1/4" output drive, 15" overall length, and 2.7 lb weight make it a practical choice for bench assembly, maintenance verification, and torque-controlled work where a standard click wrench does not provide enough process feedback.
Type: Advanced Electronic Torque Wrench | Model: ETWA25IC | Torque Range: 5 - 25 Nm / 4 - 18 ft-lbs | Head Type: Fixed and Flex std | Output Drive: 1/4" | Length: 381 mm / 15" | Weight: 1.22 kg / 2.7 lb | Configuration: Interchangeable Head
Features:
- Advanced electronic torque wrench platform for production fastening environments requiring durability, accuracy, precision, and repeatable feedback.
- Torque accuracy of +/-1.5% clockwise and +/-2.5% counterclockwise supports controlled tightening and audit work.
- Angle settings offer +/-1% reading of angle accuracy, helping support torque-plus-angle fastening strategies where rotation measurement is part of the process.
- Vibrating handle, buzzer, and tracking LED light indicate when the target torque is reached, giving the operator multiple feedback cues during use.
- USB connection with PC software interface supports data transfer and setup through Cleco e-spec software.
- Password protection helps reduce unauthorized changes to tool settings in controlled assembly operations.
- Up to 100K cycles between calibration helps reduce downtime for recurring production and quality-check work.
- Conforms with ISO 6789 and ASME B107.300-2022 standards and specifications.
Made in USA:
Applications:
- Production assembly — applying controlled torque to small fasteners where digital feedback helps confirm target achievement.
- Quality inspection and torque auditing — checking installed fasteners on finished assemblies, fixtures, and service parts.
- Electronics and light manufacturing — tightening lower-torque fasteners without stepping up to a larger wrench than the job requires.
- Maintenance and repair operations — verifying torque on guards, covers, brackets, panels, and small mechanical assemblies.
- Tool crib and calibration programs — supporting controlled fastening processes where cycle counts, feedback, and repeatability matter.
FAQs:
- Q: What torque range does the Cleco ETWA25IC cover?
A: The ETWA25IC covers 5 - 25 Nm, or 4 - 18 ft-lbs. This makes it a lower-torque electronic wrench for precision assembly, verification, and controlled fastening tasks. - Q: What does interchangeable head mean on this torque wrench?
A: Interchangeable head means the wrench can use compatible heads instead of being limited to one fixed ratchet style. This model is supplied with fixed and flex heads for different access needs. - Q: Does the ETWA25IC provide operator feedback when the target is reached?
A: Yes. Cleco lists a vibrating handle, buzzer, and tracking LED light to indicate when the target torque is reached. - Q: Is the USB power supply included?
A: No. The catalog notes that a USB-A 5V supply is required for charging and is not included. The USB-A to USB-C cable is included for charging and data transfer. - Q: What is the output drive size?
A: The ETWA25IC uses a 1/4" output drive, which matches the lower torque range and small-fastener applications this wrench is built to handle.

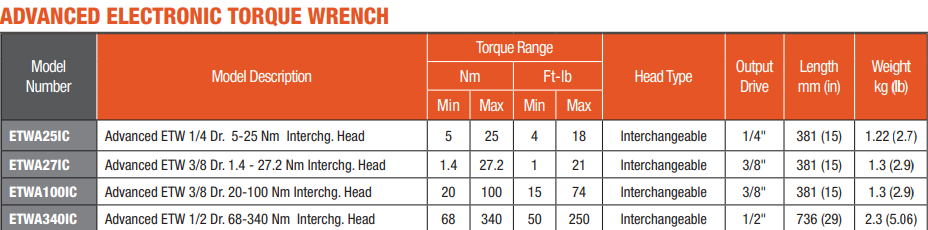

| SKU | Description | Torque Range Min (ft/lb) | Torque Range Min (Nm) | Torque Range Max | Weight | ||
|---|---|---|---|---|---|---|---|
| Ft Lb | Nm | Ft Lb | Nm | Lb | kg | ||
| ETWA100IC | 3/8“ 120XP™ Cleco E-Spec Electronic Interchangeable Head Torque Wrench 20-100Nm | 15 | 20 | 74 | 100 | 2.9 | 1.3 |
| ETWA25IC | 1/4“ 120XP™ Cleco E-Spec Cleco Electronic Interchangeable Head Torque Wrench 5-25Nm | 4 | 5 | 18 | 25 | 2.9 | 1.22 |
| ETWA27IC | 3/8“ 120XP™ Cleco E-Spec Cleco Electronic Interchangeable Head Torque Wrench 5.6-28Nm | 4.1 | 5.6 | 20.6 | 28 | 2.9 | 1.3 |
| ETWA340IC | 1/2“ 120XP™ Cleco E-Spec Electronic Interchangeable Head Torque Wrench 68-340Nm | 50 | 68 | 250 | 340 | 5.1 | 2.3 |
Looking for more information about Cleco Torque Wrench? Click here to view the Catalog
Need help selecting the correct Cleco Torque Wrenches for your application? Please call (800) 608-5210 or email info@intlairtool.com
