Cleco ETWA100IC Advanced Electronic Torque Wrench | Interchangeable Head | 15 - 74 (ft-lbs) Torque Range

When fastening work moves beyond small screws but still requires controlled, traceable torque feedback, the Cleco ETWA100IC Advanced Electronic Torque Wrench gives assembly and quality teams a mid-range electronic wrench with a 15 - 74 ft-lbs torque range, equivalent to 20 - 100 Nm. That range fits many bracket, housing, fixture, panel, and mechanical assembly fasteners where a basic click wrench may not provide enough operator guidance. The 3/8" output drive supports common socket sizes while keeping the wrench compact enough for bench, production, and service-area use.

This advanced ETW model uses an interchangeable head configuration, meaning compatible heads can be swapped to suit different access angles and fastening positions. Supplied fixed and flex heads help technicians work straight-on or around obstructions without changing to a different torque tool. With digital torque and angle measurement, a vibrating handle, buzzer, and tracking LED light, the ETWA100IC gives operators clear feedback as they approach the target torque value, helping reduce missed fasteners, under-tightening, and over-tightening in controlled fastening programs.

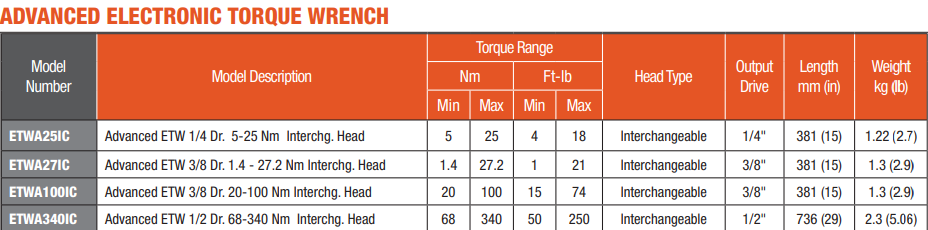

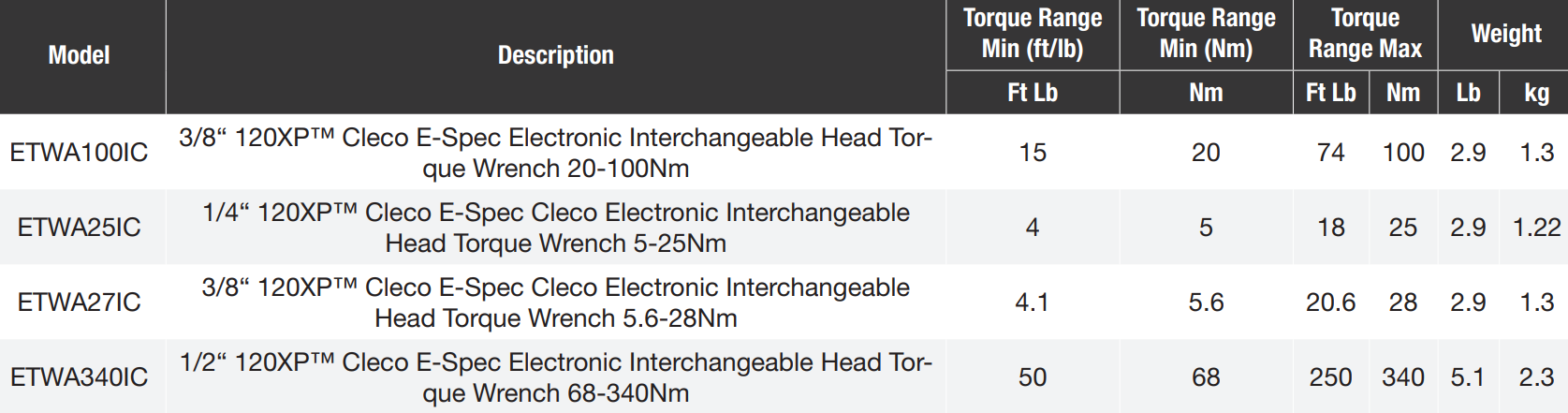

Type: Advanced Electronic Torque Wrench | Model: ETWA100IC | Torque Range: 20 - 100 Nm / 15 - 74 ft-lbs | Head Type: Fixed and Flex std | Output Drive: 3/8" | Length: 381 mm / 15" | Weight: 1.3 kg / 2.9 lb | Configuration: Interchangeable Head

Features:

• Advanced electronic torque wrench platform for controlled tightening, torque verification, and production fastening programs.
• Torque accuracy of +/-1.5% clockwise and +/-2.5% counterclockwise supports precise tightening and reverse-direction checking.
• Angle settings offer +/-1% reading of angle accuracy for fastening strategies that require both torque and rotation measurement.
• Vibrating handle, buzzer, and tracking LED light indicate when the target is reached, giving operators multiple feedback cues during use.
• Interchangeable head design accepts compatible head attachments for different socket positions, access angles, and assembly layouts.
• USB connection with PC software interface supports configuration and data transfer through Cleco e-spec software.
• Password protection helps prevent unauthorized setting changes in production, inspection, and tool crib environments.
• Up to 100K cycles between calibration helps support recurring fastening and quality-check programs with reduced calibration interruptions.
• Conforms with ISO 6789 and ASME B107.300-2022 standards and specifications.

Made in USA:

Applications:

• Production assembly — tightening mid-range fasteners where electronic feedback helps support consistent operator technique.
• Quality inspection and torque auditing — verifying installed fasteners on fixtures, subassemblies, equipment panels, and finished products.
• General manufacturing — applying controlled torque to brackets, frames, housings, guards, and mechanical assemblies.
• Automotive and fleet maintenance — checking smaller chassis, accessory, and component fasteners that fall within the 15 - 74 ft-lbs range.
• Tool crib and calibration programs — supporting shared torque tools where password protection, cycle capability, and repeatable setup matter.

FAQs:

• Q: What torque range does the Cleco ETWA100IC cover?
  A: The ETWA100IC covers 20 - 100 Nm, or 15 - 74 ft-lbs. This makes it a mid-range electronic torque wrench for assembly, inspection, and controlled service work.
• Q: What drive size does this wrench use?
  A: This model uses a 3/8" output drive. That drive size works well for many mid-range socket applications without stepping up to a larger 1/2" drive wrench.
• Q: What is the benefit of the interchangeable head design?
  A: Interchangeable heads let the user adapt the wrench to different access conditions. The ETWA100IC is supplied with fixed and flex standard heads for straight and offset fastening positions.
• Q: Does the ETWA100IC support torque-and-angle fastening?
  A: Yes. Cleco lists torque and angle functionality, with angle settings offering +/-1% reading of angle accuracy. This is useful when a fastening process requires rotation measurement in addition to torque.
• Q: Is this model suitable for high-torque bolting?
  A: No. The ETWA100IC tops out at 74 ft-lbs, so it is intended for controlled mid-range fastening. For larger bolts or higher torque requirements, select a higher-capacity Cleco electronic torque wrench.
