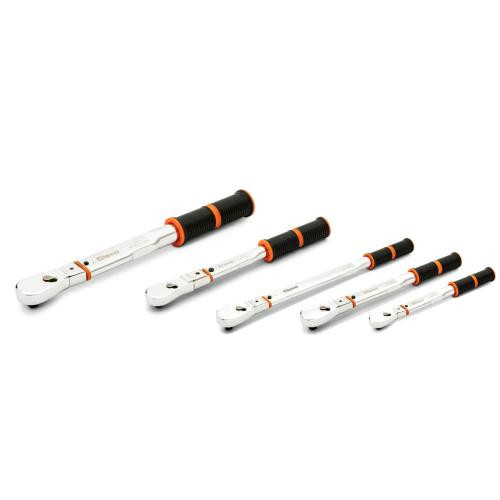

Cleco PTW200IC Preset Mechanical Torque Wrench | Interchangeable Head | 30 - 148 (ft-lbs) Torque Range

When repeated fastening needs a locked-in torque setting instead of a hand-adjusted scale, the Cleco PTW200IC Preset Mechanical Torque Wrench gives assemblers a controlled, tamper-resistant way to apply 30 to 148 ft-lbs / 40 to 200 Nm of torque. This model uses an interchangeable head connection, meaning compatible heads can be changed to suit different access needs while keeping the preset torque body in service. The 14 x 18 mm interchange size and supplied 120XP ratcheting head support production, repair, and quality-critical fastening work where repeatability matters more than on-the-fly adjustment.

The PTW200IC is built for right-hand clockwise tightening accuracy and includes a comfort grip with a line that indicates the correct operating position. Its 120XP ball lock ratchet head provides a minimal 3° swing arc, helping technicians work around brackets, frames, housings, and other tight clearances where a wider ratchet swing would slow the job down.

Type: Preset Mechanical Torque Wrench | Model: PTW200IC | Torque Range: 40 - 200 Nm / 30 - 148 ft-lbs | Head Type: Interchangeable | Interchange Size: 14 x 18 mm | Output Drive: 1/2" | Length Without Head: 422.5 mm / 16.6" | Weight Without Head: 1.07 kg / 2.35 lbs | Included Head: 120XP Ratcheting Head

Features:

• Torque accuracy of +/- 4% CW for controlled clockwise tightening in safety and quality-critical applications.
• Preset mechanical design helps prevent unwanted torque changes during repetitive assembly work.
• Tamper proof preset beneath a cover; PTW100IC/PTW200IC use standard Torx® wrench T40, not supplied.
• Designed and tested for 100K cycles before recertification, helping reduce calibration interruptions in production environments.
• Industry standard 14 x 18 mm interchange size integrates with compatible interchangeable head systems.
• Supplied with a 120XP ball lock ratchet head with a minimal 3° swing arc for access in tight spaces.
• Comfort grip with line indicating correct operating position supports consistent hand placement during torque application.
• Conforms with ASME B107.300-2022 standards and specifications.

Made in USA:

Applications:

• Production assembly: Applying the same preset torque across repeated fastening stations where adjustment access should be restricted.
• Automotive and heavy truck service: Controlled tightening of components that fall within the 30 - 148 ft-lbs operating range.
• Aerospace and transportation maintenance: Torque-controlled assembly tasks where repeatability, access, and documentation discipline are important.
• Industrial MRO: Reinstalling guards, housings, brackets, and mechanical assemblies with a fixed torque setting.
• Quality and calibration programs: Standardizing torque application with a preset wrench that is tested for extended cycles before recertification.

FAQs:

• Q: What does “preset” mean on the Cleco PTW200IC?
  A: Preset means the torque value is set beneath a cover rather than adjusted openly with a visible scale during use. This helps keep operators from changing the setting during repeated fastening work.
• Q: What does CW accuracy mean?
  A: CW means clockwise, which is the standard tightening direction for most right-hand threaded fasteners. Cleco lists the PTW preset mechanical torque wrenches with +/- 4% CW torque accuracy, with the accuracy stated in the upper 80% of wrench capacity.
• Q: Does the PTW200IC include a ratchet head?
  A: Yes. The PTW200IC includes a 120XP ratcheting head. The wrench body uses a 14 x 18 mm interchangeable head connection.
• Q: Is the Torx wrench for changing the preset included?
  A: No. Cleco notes that the PTW100IC/PTW200IC use a standard Torx T40 wrench for the tamper proof preset cover, and that wrench is not supplied.
• Q: Can this replace an adjustable click torque wrench?
  A: It can replace an adjustable wrench when the job calls for one repeated torque value. For applications that require frequent torque changes, an adjustable or electronic torque wrench may be a better fit.

Looking for more information about Cleco Torque Wrench? Click here to view the Catalog

Need help selecting the correct Cleco Torque Wrenches for your application? Please call (800) 608-5210 or email info@intlairtool.com
