Cleco MR70R122M is an extremely powerful MR70 Series Reversible Rotary Vane Air Motor, engineered for heavy-duty industrial applications demanding high horsepower and immense torque at moderate speeds. It delivers a substantial 7.5 horsepower, making it suitable for driving large machinery or overcoming significant resistance. Operating at a controlled 310 RPM, this motor balances rotational speed with an impressive 472 ft-lbs of stall torque, indicating an extraordinary ability to maintain powerful turning force even under extreme loads. The reversible functionality provides exceptional versatility, allowing for seamless operation in both clockwise and counter-clockwise directions, which is critical for many industrial processes. The side exhaust design efficiently directs spent air away from the immediate work area, contributing to a cleaner and potentially safer operational environment.

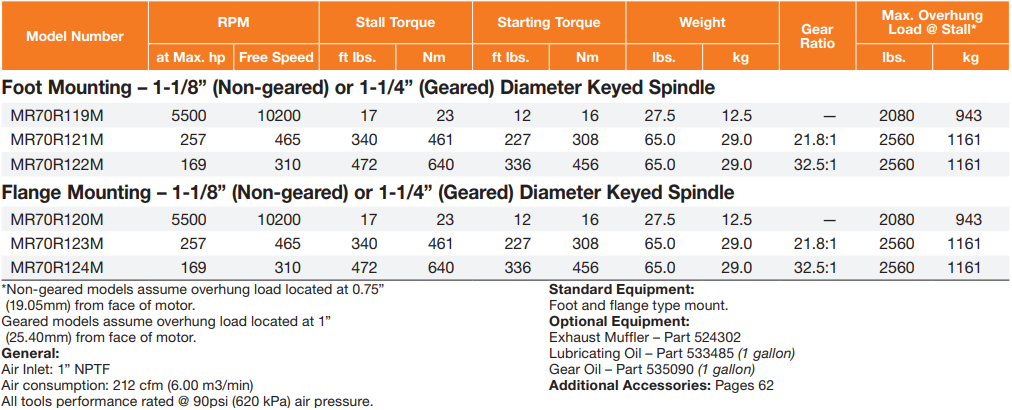

Type: Air Motor | Series: MR70 Series | Spindle Type: Non-geared / Geared Keyed Spindle | Spindle Size (in.): 1-1/8 or 1-1/4 | Power (HP): 7.5 | RPM at Max HP (1/min ): 169 | Free Speed (RPM): 310 | Torque Stall (ft-lbs): 472 | Starting Torque (ft-lbs): 336 | Gear Ratio: 32.5:1 | Air Consumption (CFM): 212 | Air Inlet Size (in.): 1 | Control: Reversible | Exhaust: Side | Motor Configuration: Rotary Vane | Mount: Foot Mounting | Max. Overhung Load @ Stall: 2560
Features:
- Reversible rotation for added versatility in various applications
- Reliable rotary vane design ensures efficient and consistent performance
- Side exhaust configuration directs airflow away from the operator and work surface
- Ideal for powering a broad range of pneumatic tools and machinery
- Engineered for high torque output, suitable for heavy-duty operations
Made in USA:
Looking for more information about Cleco Air Motors? Click here to view the Catalog.
Need help selecting the correct Cleco Air Motor for your application? Please call (800) 608-5210 or email info@intlairtool.com
