Cleco MMW423M MM Series Radial Piston Air Motor | 15 HP | 400 RPM | 715 (ft-lbs) Stall Torque | Rear Exhaust

Cleco MMW423M is an exceptionally powerful MM Series Radial Piston Air Motor, designed for the most demanding industrial applications that require a combination of very high horsepower and substantial torque. It delivers an outstanding 15 horsepower, making it suitable for extremely heavy-duty tasks where consistent, high-energy output is crucial. Operating at a high rotational speed of 400 RPM, this motor is capable of rapid action while still providing a formidable 715 ft-lbs of stall torque. This significant stall torque ensures it can maintain strong turning force even under considerable loads, preventing slowdowns. The radial piston design is renowned for its robust construction, reliability, and efficient power transfer. The rear exhaust system effectively directs spent air away from the immediate work area, contributing to a cleaner and potentially quieter operational environment, even in high-stress industrial settings.

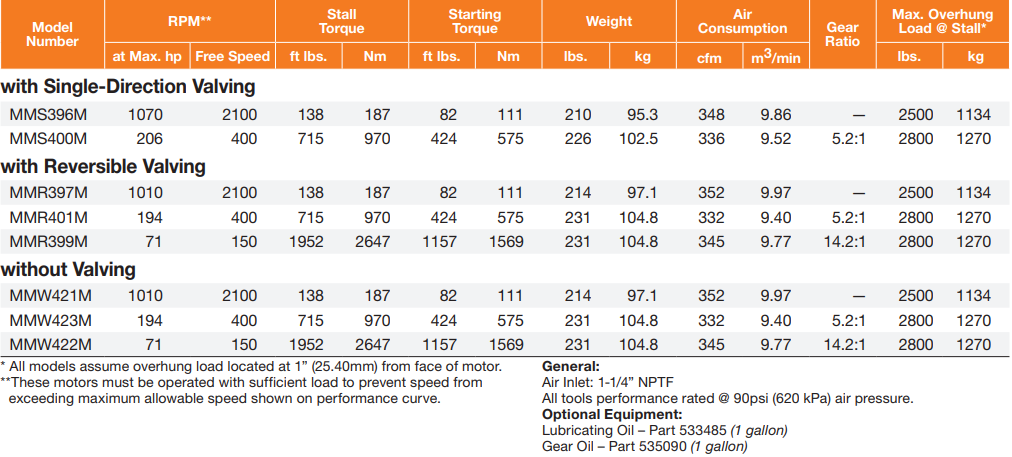

Type: Air Motor | Series: MM Series | Spindle Type: 1.75 OD Double Key with retaining nut | RPM at Max HP (1/min ): 194 | Free Speed (RPM): 400 | Torque Stall (ft-lbs): 715 | Gear Ratio: 5.2-1 | Air Consumption (SCFM): 332 | Control: No Valving | Exhaust: Rear | Power (HP): 15 | Motor Configuration: Radial Piston | Mount: Foot Mounting

Features:

• High-efficiency radial piston design delivers smooth, consistent performance
• Rear exhaust configuration enhances operator safety and maintains a cleaner work environment
• Strong torque output supports demanding applications with ease
• Versatile design integrates seamlessly with a wide range of pneumatic systems
• Compact yet powerful construction allows installation in space-constrained areas

Made in USA:

Looking for more information about Cleco Air Motors? Click here to view the Catalog.

Need help selecting the correct Cleco Air Motor for your application? Please call (800) 608-5210 or email info@intlairtool.com
