Cleco MKS392M MK Series Radial Piston Air Motor | 11 HP | 135 RPM | 2,243 (ft-lbs) Stall Torque | Rear Exhaust

Cleco MKS392M is an extraordinarily powerful MK Series Radial Piston Air Motor, engineered for the most extreme industrial applications where colossal torque at relatively low speeds is critical. It boasts an immense 11 horsepower, positioning it as a top-tier solution for exceptionally heavy-duty and strenuous tasks. Operating at a controlled 135 RPM, this motor is specifically designed for applications demanding incredible turning force rather than high rotational velocity. Its staggering 2243 ft-lbs of stall torque is a testament to its unparalleled power, enabling it to drive and overcome truly massive loads without faltering. The radial piston design ensures exceptional durability, reliability, and consistent power delivery even under the most gruelling conditions. The rear exhaust system efficiently expels spent air, contributing to a cleaner and potentially quieter operational environment, which is particularly beneficial when dealing with machinery of this scale and power.

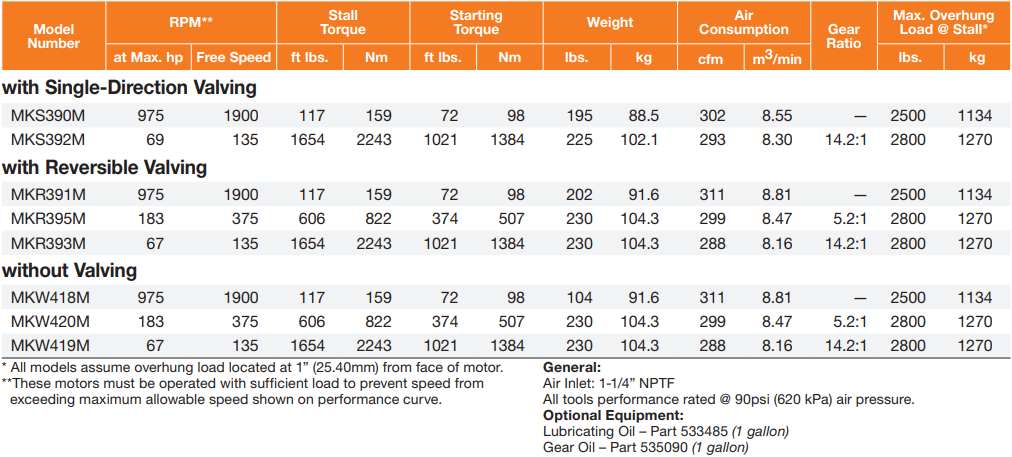

Type: Air Motor | Series: MK Series | RPM at Max HP (1/min ): 69 | Free Speed (RPM): 135 | Torque Stall (ft-lbs): 2243 | Gear Ratio: 14.2-1 | Air Consumption (SCFM): 8.3 | Control: Single Direction Valving | Exhaust: Rear | Power (HP): 11 | Motor Configuration: Radial Piston | Mount: Foot Mounting

Features:

• High-performance radial piston design for superior power and efficiency
• Rear exhaust system to safely direct airflow away from the operator
• Generates substantial torque for demanding low-speed, high-torque tasks
• Compatible with a broad range of pneumatic tools and equipment
• Built for demanding industrial applications with rugged durability

Made in USA:

Looking for more information about Cleco Air Motors? Click here to view the Catalog.

Need help selecting the correct Cleco Air Motor for your application? Please call (800) 608-5210 or email info@intlairtool.com
