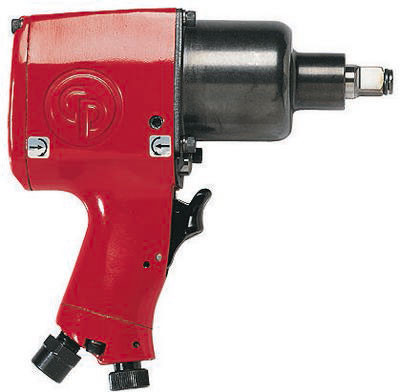

The Chicago Pneumatic CP9542 Impact Wrench delivers smooth operation and extended durability. It is a durable, lightweight, reliable and powerful 1/2" impact wrench with pin socket retainer, ideal for industrial maintenance and production applications. It is a tool which produces very low noise and very limited vibrations. It features fast and reliable Pin clutch with oil bath for improved performance. It also features a steel trigger with torque regulator at the handle. The CP9542 has a durable aluminum body and steel clutch housing. With 450 ft. lbs - 610 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 25.1 to 320 ft./lbs. This product weighs 6 lbs, measures 6.61 inches long, and has a 1/2-inch output drive.

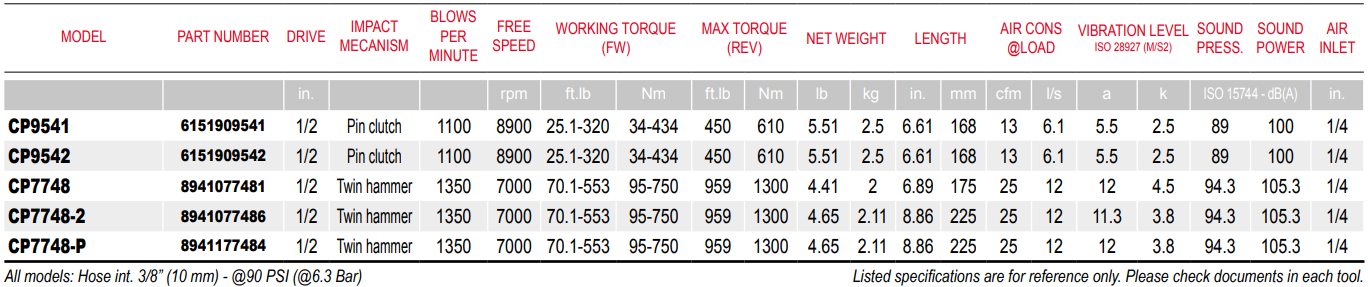

Type: Impact Wrench | Drive Size (in.): 1/2 | Impact Mecanism: Pin clutch | Blows Per Minute (BPM): 1100 | Free Speed (RPM): 8900 | Working Torque Range (ft-lbs): 25.1-320 | Working Torque Range (fwd) (Nm): 34-434 | Max Reverse Torque (ft-lbs): 450 | Max Reverse Torque (Nm): 610 | Length (in.): 6.61 | Length (mm): 168 | Air Consumption @ Load (CFM): 13 | Air Consumption @ Load (l/s): 6.1 | Vibration Level (a): 5.5 | Vibration Level (k): 2.5 | Sound Pressure (dbA): 89 | Sound Power (dbA): 100 | Air Inlet Size (in.): 1/4 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10
Features:
- 1/2" impact wrench with pin socket retainer
- Fast and reliable Pin clutch with oil bath
- Aluminum body and steel clutch housing
- Torque regulator at the handle
- Steel Trigger for harsh environment
Benefits:
- Industrial Maintenance and Production
- Low vibration and noise level increase operator comfort
- Reliable pin clutch in oil bath and durable clutch housing
Looking for more information about Chicago Pneumatic Grinder? Click here to view the Catalog.
For help selecting the correct Chicago Pneumatic Grinders for your assembly application, call (800) 608-5210 or email info@intlairtool.com
