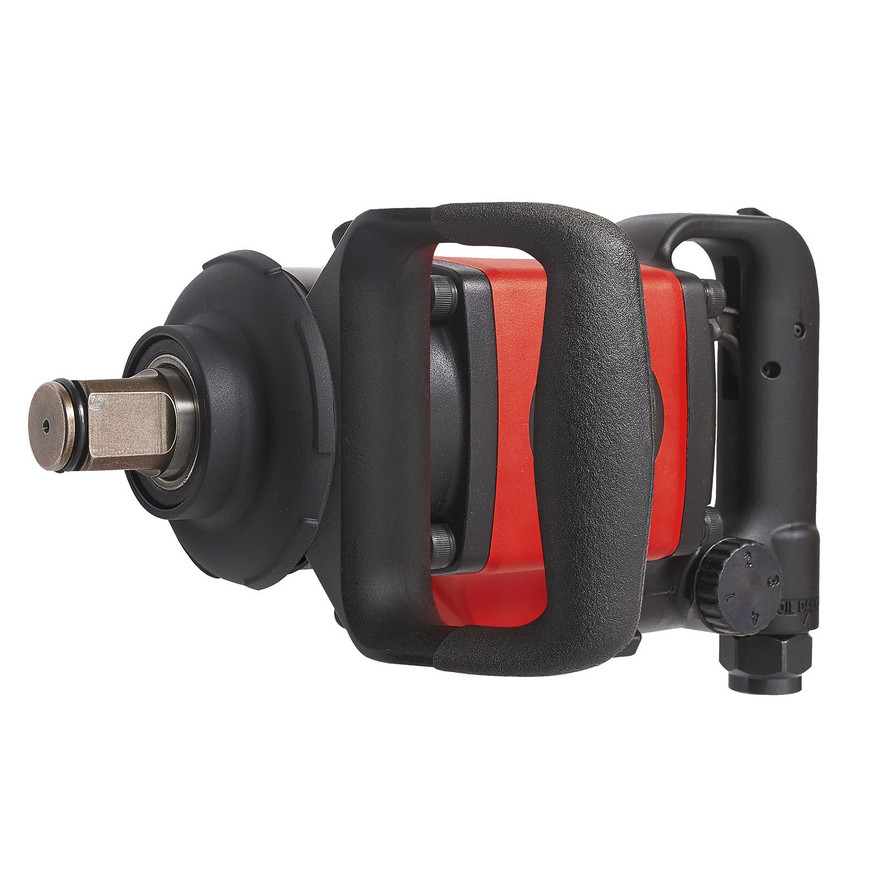

Chicago Pneumatic CP7773D Impact Wrench | 1" Drive | 1300 (ft-lbs.) Max Torque Reverse | 6,600 RPM

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Chicago Pneumatic

Chicago Pneumatic CP7773D Impact Wrench | 1" Drive | 1300 (ft-lbs.) Max Torque Reverse | 6,600 RPM

List Price: $1,098.20
$658.92
(You save $439.28 )
Availability:
Usually Ships Within 2 to 4 Business Days | Contact Customer Service for Details
SKU:
8941077731
Shipping:
Calculated at Checkout
Weight:
14.50 LBS
Condition:
New
Adding to cart… The item has been added
Description


Chicago Pneumatic CP7773D Impact Wrench delivers easy operation and extended durability. It is a versatile, compact, lightweight, and powerful tool ideal for all maintenance applications and general repairs. It features a composite motor housing and a twin hammer mechanism for improved performance and strength. The side handle with soft touch grip, the variable speed trigger with power regulator on both sides, and the socket retainer ring with the hole retainer give the operator convenient control of the intuitive forward/reverse lever. With 1300 ft. lbs - 1760 Nm of maximum torque in reverse, this impact wrench provides full power and a working torque range of 250 to 1070 ft./lbs. This product weighs 14.5 lbs, measures 11.4 inches long, and has a 1-inch output drive.

Type: Impact Wrench | Drive Size (in.): 1 | Impact Mechanism: Twin hammer | Free Speed (RPM): 6600 | Working Torque Range (fwd) (ft-lbs): 251-1,070 | Working Torque Range (fwd) (Nm): 340-1,450 | Max Reverse Torque (ft-lbs): 1300 | Max Reverse Torque (Nm): 1760 | Length (in.): 11.42 | Length (mm): 290 | Air Consumption @ Load (CFM): 4.1 | Air Consumption @ Load (l/s): 19.3 | Vibration Level (a): 12 | Vibration Level (k): 3.3 | Sound Pressure (dbA): 98 | Sound Power (dbA): 109 | Air Inlet Size (in.): 1/2 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10

Features:

  • Twin hammer mechanism
  • Steel motor
  • Intuitive Forward / Reverse lever & power regulator on both sides
  • 4 4-positionower settings on both sides
  • Side handle with soft touch grip
  • Down exhaust
  • Aluminum housing
  • Composite cover on the clutch housing
  • Socket retainer ring

Benefits:

  • Great Performance
  • Lightweight
  • Comfort
  • Easy to Use
  • Rugged and Robust
  • Easy Operation

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Wrench? Click here to view the Catalog.

For help choosing the correct Chicago Pneumatic Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com

Specifications
Type:
Impact Wrench
Drive Size (in.):
1
Impact Mechanism:
Twin hammer
Free Speed (RPM):
6,600
Working Torque Range (fwd) (ft-lbs):
251-1,070
Working Torque Range (fwd) (Nm):
340-1,450
Max Reverse Torque (ft-lbs):
1300
Max Reverse Torque (Nm):
1760
Length (in.):
11.42
Length (mm):
290
Air Consumption @ Load (CFM):
4.1
Air Consumption @ Load (l/s):
19.3
Vibration Level (a):
12
Vibration Level (k):
3.3
Sound Pressure (dbA):
98
Sound Power (dbA):
109
Air Inlet Size (in.):
1/2
Min Hose Size (in.):
3/8
Min Hose Size (mm):
10
Warranty Information
One year warranty against defects in materials and workmanship
