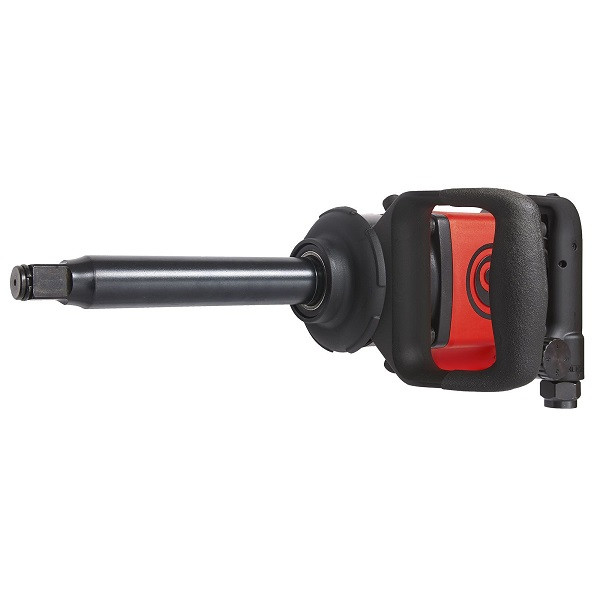

Chicago Pneumatic CP7763D-6 Impact Wrench delivers great performance and extended durability. It is a versatile, easy-to-use & lightweight tool ideal for all maintenance applications and general repairs. It features a twin-hammer mechanism with a steel motor and aluminum housing for improved performance and strength. It has a composite cover on the clutch housing. The impact wrench has 4-position power settings on both sides and comes with an Intuitive Forward / Reverse lever & power regulator on both sides. It comes with a 6-inch (152 mm) anvil. The side handle with soft touch grip offers a durable and comfortable grip. It also features a down exhaust and a socket retainer ring. With 1300 ft. lbs. / 1760 Nm of maximum torque in reverse, this impact wrench provides full power and a working torque range of 250 - 1070 ft. lbs. This product weighs 16.1 lbs, measures 17.5 inches long, and has a 3/4-inch output drive.
Type: Impact Wrench | Drive Size (in.): 3/4 | Impact Mechanism: Twin hammer | Free Speed (RPM): 6600 | Working Torque Range (fwd) (ft-lbs): 251-1,070 | Working Torque Range (fwd) (Nm): 340-1,450 | Max Reverse Torque (ft-lbs): 1300 | Max Reverse Torque (Nm): 1760 | Length (in.): 17.52 | Length (mm): 445 | Air Consumption @ Load (CFM): 41 | Air Consumption @ Load (l/s): 19.3 | Vibration Level (a): 12 | Vibration Level (k): 3.3 | Sound Pressure (dbA): 98 | Sound Power (dbA): 109 | Air Inlet Size (in.): 1/2 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10
Features:
- 16.1 lbs. – 7.3 kg
- 1300 ft.lbs. / 1760 Nm in reverse
- Twin hammer mechanism
- Steel motor
- Intuitive Forward / Reverse lever & power regulator on both sides
- 44-position power settings on both sides
- Side handle with soft touch grip
- Down exhaust
- Aluminum housing
- Composite cover on the clutch housing
- Socket retainer ring
Benefits:
- Great Performance
- Lightweight
- Comfort
- Easy to Use
- Rugged and Robust
- Easy Operation
Looking for more information about Chicago Pneumatic Wrench? Click here to view the Catalog.
For help choosing the correct Chicago Pneumatic Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com
