The Chicago Pneumatic CP734H impact wrench is a versatile, compact, lightweight and powerful 1/2" impact wrench for general maintenance with ring retainer, ideal for all maintenance applications and general repairs. It features a reliable DYNA-PACT pin clutch with oil bath for improved performance and strength. The One-handed reverse button with 4-positive power settings and the ergonomic handle with rubber grip offers superior operator comfort. The robust housing and oil bath clutch provide durability to this tool. With 425 ft.lbs - 576 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 25.1-310 ft./lbs. This product weighs 6 lbs, measures 7.52 inches long, and has a 1/2-inch output drive.

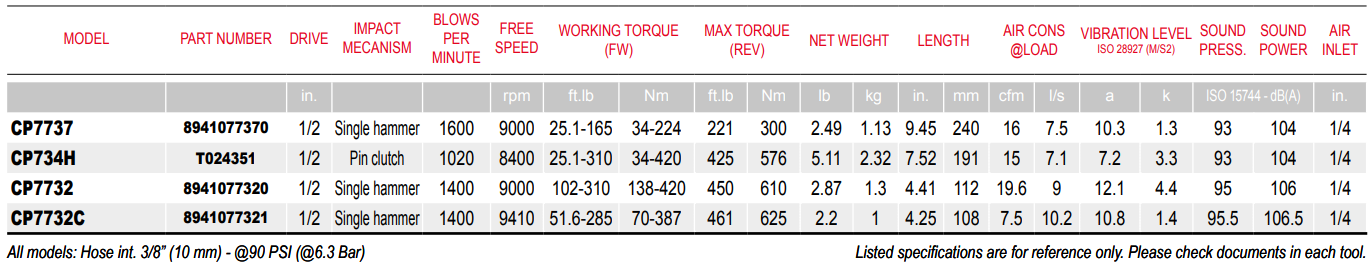

Type: Impact Wrench | Drive Size (in.): 1/2 | Impact Mecanism: Pin clutch | Blows Per Minute (BPM): 1020 | Free Speed (RPM): 8400 | Working Torque Range (ft-lbs): 25.1-310 | Working Torque Range (fwd) (Nm): 34-420 | Max Reverse Torque (ft-lbs): 425 | Max Reverse Torque (Nm): 576 | Length (in.): 7.52 | Length (mm): 191 | Air Consumption @ Load (CFM): 15 | Air Consumption @ Load (l/s): 7.1 | Vibration Level (a): 7.2 | Vibration Level (k): 3.3 | Sound Pressure (dbA): 93 | Sound Power (dbA): 104 | Air Inlet Size (in.): 1/4 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10
Features:
- 1/2" impact wrench for general maintenance with ring retainer
- DYNA-PACT (Pin clutch) with oil bath
- One-handed reverse button with 4 positive power settings
- Compact and ergonomic with rubber grip
- Through handle air exhaust and 360° air inlet swivel
Benefits:
- General Maintenance
- Clutch delivers smooth and comfortable operation
- Robust housing and oil bath clutch provide durability
- Versatile tool ideal for all general repairs and maintenance applications
Looking for more information about Chicago Pneumatic Grinder? Click here to view the Catalog.
For help selecting the correct Chicago Pneumatic Grinders for your assembly application, call (800) 608-5210 or email info@intlairtool.com
