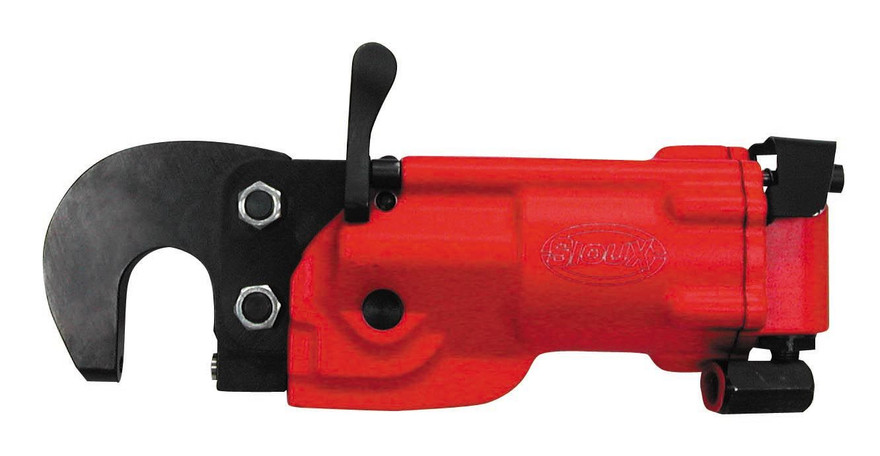

Name: Sioux Tools SZEA3015 Single Cylinder Compression Riveter | 3,000 lbs Max Force | 1/8" Riveting Capacity | Safety Throttle
Brand: Sioux Tools
SKU: SZEA3015
Price: 1947.45 USD
Availability: InStock

Sioux Tools SZEA3015 Single Cylinder Compression Riveter | 3,000 lbs Max Force | 1/8" Riveting Capacity | Safety Throttle

$1,947.45

Current Stock:

SKU:

SZEA3015

Shipping:

Calculated at Checkout

Weight:

4.50 LBS

Condition:

New

Description
Specifications
Warranty Information
California Proposition 65 Warning
Reviews

Description

Sioux Tools SZEA3015 Single Cylinder Compression Riveter delivers a squeezing action, which drives the rivet by “flowing” its metal with compressed forces. Squeeze riveting has the benefit of producing simple noises of air exhaust and forward piston movement. SZEA3015 Single Cylinder Compression Riveter is operated and powered by hand, resulting in a one-man operation that boosts productivity. It develops full squeezing force at 90 P.S.I. and provides compression force available from the tool. Sioux Tools SZEA3015 Compression Riveter is used to create high-strength joints in a variety of materials such as metals, polymers, wood, and leather. Applying consistent pressure to the tool improves the aesthetic of the finished product while also increasing structural efficiency. This C-Yoke rivet squeezer is excellent for many assembly operations.

Features:

One-man operation increases productivity
Rolling cam and wedge assembly greatly multiplies compression force of piston
"Squeeze" action permits easy control, exceptional accuracy and uniformity
Speed of squeeze riveter can be controlled by throttle
Develops full squeezing force with only 90 P.S.I. air pressure

Made in USA:

Looking for more information about Sioux Specialty Tools? Click here to view the Catalog

For help choosing the correct tool for your application, please call (800) 608-5210 or email info@intlairtool.com

Specifications

Type:

Compression Riveter

Riveting Capacity (in.):

1/8

Riveting Capacity (mm):

Rivet Set Shank Diameter (in.):

3/16

Rivet Set Shank Diameter (mm):

Cap Cold Rivet Diameter Steel (in.):

3/32

Cap Cold Rivet Diameter Steel (mm):

Cap Cold Rivet Diameter Alum. (in.):

1/8

Cap Cold Rivet Diameter Alum. (mm):

Standard "C" Yoke Dimension Reach (in.):

1-1/2

Standard "C" Yoke Dimension Reach (mm):

Standard "C" Yoke Dimension Gap (in.):

1-1/4

Standard "C" Yoke Dimension Gap (mm):

Closed Height (in.):

11/16

Closed Height (mm):

Max Travel (in.):

9/16

Max Travel (mm):

Max Force @ 90 PSI (lbs):

3,000

Max Force @ 90 PSI (kN):

13.4

Stroke @ Max Force (in.):

final 1/16

Stroke @ Max Force (mm):

Overall Length (in.):

10-1/4

Overall Length (mm):

262

Min Hose Size (in.):

3/8

Min Hose Size (mm):

Air Inlet Size (in.):

1/4

Warranty Information

One year warranty against defects in materials and workmanship

California Proposition 65 Warning

warning WARNING: This or other products sold on this website may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov
