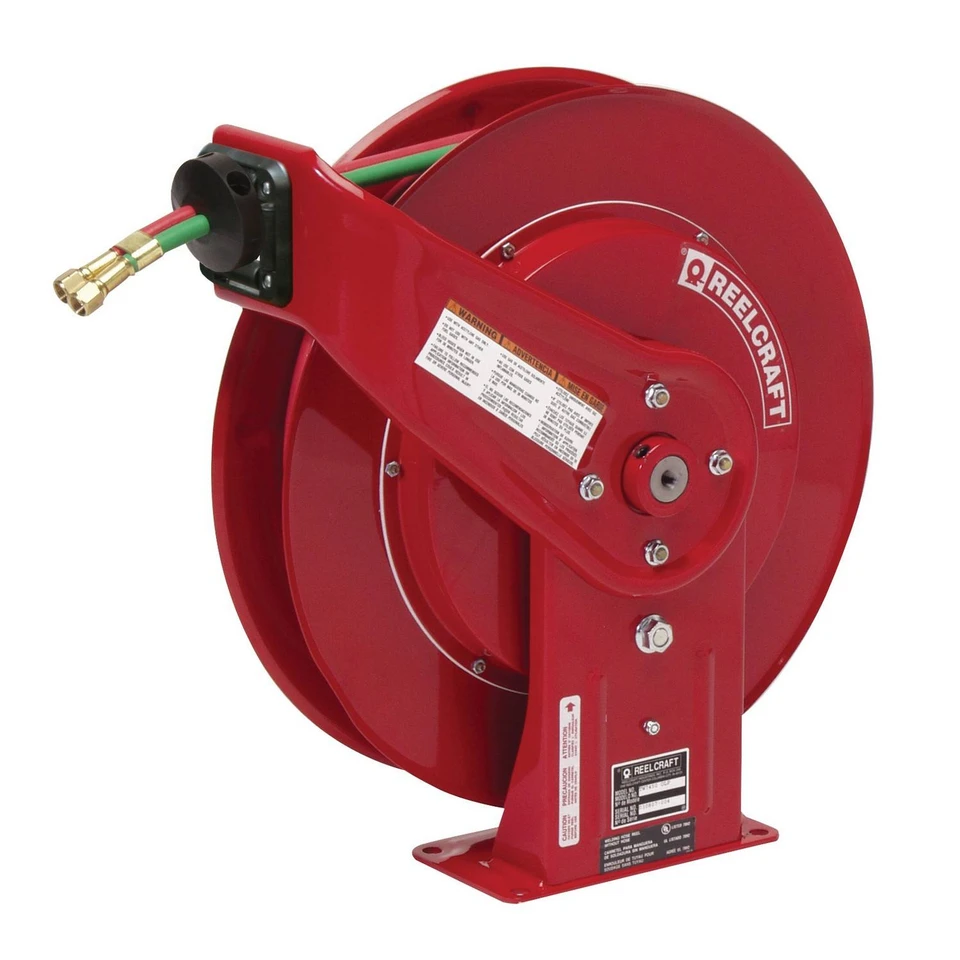

Reelcraft TW7460 OLPT Gas Welding Hose Reel | 1/4 in. Hose Diameter | 60 Ft. Hose Length | 200 Max PSI

Reelcraft’s Series TW spring retractable gas welding hose reels have an independent dual swivel body manufactured from aluminum and hard coated for wear resistance. This unique design assures positive separation of gases. Double-sealed, special molded O-rings prevent leakage. Swivel body and inlet are both permanently identified with machined grooves on the acetylene side to assure proper installation.

Features:

• Leak prevention – The double sealed, special molded o-rings prevent leakage. The swivel inlets are both permanently identified with machined grooves on the gas side to assure proper installation.
• Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
• Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality.
• Independent dual swivel body manufactured from aluminum and hard-coated for wear resistance assures positive separation of gases due to its unique design.

Specifications: Hose Internal Diameter: 1/4" Hose Length: 60 Ft. Max PSI: 200 Female NPT Reel Outlet: 9/16-18" Female NPT Reel Inlet: 1/4" Length: 19.75" Width: 7.375" Height: 20.25" Made in USA

Dimensions: A - 20.25" B - 19.75" C - 7.875" D - 3.875" E - 7.375"
