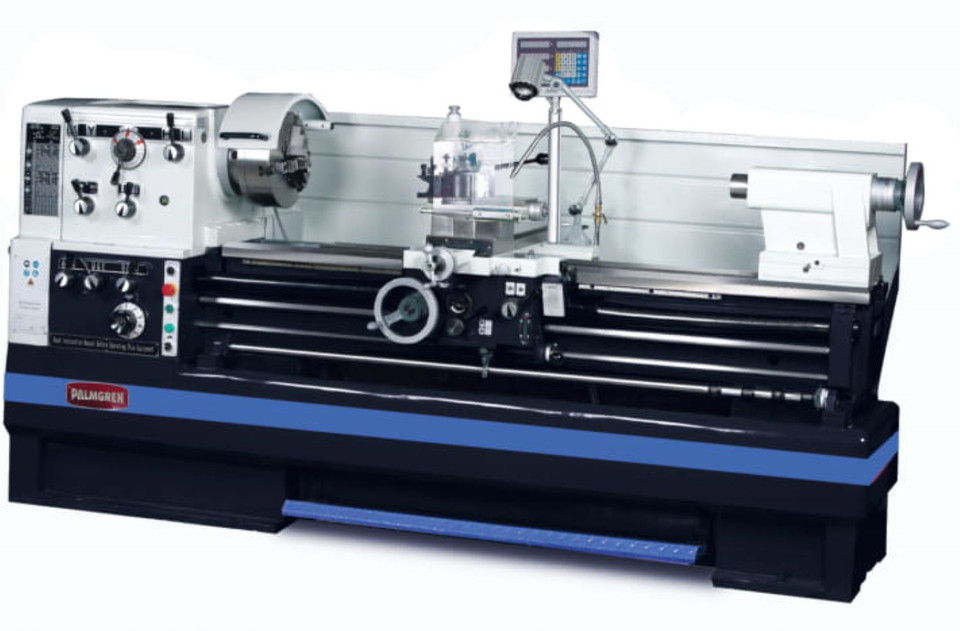

Palmgren 9684556 22" x 80" Bench Top Engine Lathe | 10 HP | 13-3/4" Bed Width

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Palmgren

Palmgren 9684556 22" x 80" Bench Top Engine Lathe | 10 HP | 13-3/4" Bed Width

List Price: $48,334.00
$48,333.75
(You save $0.25 )
SKU:
9684556
Shipping:
Calculated at Checkout
Weight:
5,643.00 LBS
Condition:
New
UPC:
726896845562
Adding to cart… The item has been added
Description


Palmgren 9684556 Bench Top Engine Lathe is a compact yet powerful machine designed for precision turning tasks in small shops, tool rooms, and hobbyist workspaces. Equipped with a reliable 10 HP motor, this lathe offers six spindle speeds ranging from 125 to 2,000 RPM, allowing versatile machining of various materials. Built to meet the DIN 8606 toolmakers' precision standards, the heavy cast iron construction ensures durability and minimal vibration, resulting in accurate, smooth cuts. With a 22" swing over the bed and 80" distance between centers, it accommodates a wide range of workpiece sizes. The 13-3/4"" bed width provides a solid foundation for stable operation. Upgrade your machining capabilities with the Palmgren 9684556 Bench Top Engine Lathe—delivering precision, power, and reliability in a compact footprint.

Type: Engine Lathe | Bed Width (in.): 13-3/4 | Compound Travel (in.): 5.1 | Cross Slide Travel (in.): 12.4 | Distance Between Centers (in.): 80 | Frequency (Hz): 60 | Includes: Digital Readout, 4 Jaw Chuck, Splash Guard, Chuck, face plate and Tool Post Safety Guard, 4 Way Tool Post, Splash Guard, (2) 5MT Dead Centers, reduce bushing MT7/MT5, Inch and Metric Gears for Threading, threading gauge, Steady Rest, Follower Rest, Work Light, spindle brake, coolant equipment, with DRO & stand | Lathes Type: Bench Top | Longitudinal Feed Rates (in.): 0.001 - 0.033 | Motor (HP): 10 | Number of Spindle Speeds: 12 | Overall Dimensions (in.): 132 x 45 x 58 | Phase: Three | Spindle Seat: Camlock D 1-8 | Spindle Taper: MT-7 | Swing Over Bed (in.): 22 | Swing Over Cross Slide (in.): 14 | Swing Over Gap (in.): 31 | Tailstock Taper: MT-5 | Tailstock Travel (in.): 7 | Thread Range (in.): 2 - 112 | Thread Range (mm): 0.2-14 | Voltage: 230/460

Features:

  • 3 Axis Sino DRO
  • 3 & 4 Jaw Chucks
  • Splash Guards
  • Chuck and 4- Way Toolpost Safety Guard
  • (2) MT5 Dead Centers
  • Inch and Metric Gears for Threading
  • Steady Rest
  • Follow Rest
  • Work Light

industrial-tools-parts-breakdown.pngLooking for more information about Palmgren Engine Lathes? Click here to view the Catalog.

Need help selecting the correct Palmgren Engine Lathe for your application? Please call (800) 608-5210 or email info@intlairtool.com

Specifications
Type:
Engine Lathe
Bed Width (in.):
13-3/4
Compound Travel (in.):
5.1
Cross Slide Travel (in.):
12.4
Distance Between Centers (in.):
80
Frequency (Hz):
60
Includes:
Digital Readout, 4 Jaw Chuck, Splash Guard, Chuck, face plate and Tool Post Safety Guard, 4 Way Tool Post, Splash Guard, (2) 5MT Dead Centers, reduce bushing MT7/MT5, Inch and Metric Gears for Threading, threading gauge, Steady Rest, Follower Rest, W
Lathes Type:
Bench Top
Longitudinal Feed Rates (in.):
0.001 - 0.033
Motor (HP):
10
Number of Spindle Speeds:
12
Overall Dimensions (in.):
132 x 45 x 58
Phase:
Three
Spindle Seat:
Camlock D 1-8
Spindle Taper:
MT-7
Swing Over Bed (in.):
22
Swing Over Cross Slide (in.):
14
Swing Over Gap (in.):
31
Tailstock Taper:
MT-5
Tailstock Travel (in.):
7
Thread Range (in.):
2 - 112
Thread Range (mm):
0.2-14
Voltage:
230/460
Warranty Information
3 Year warranty against defects in materials and workmanship.
