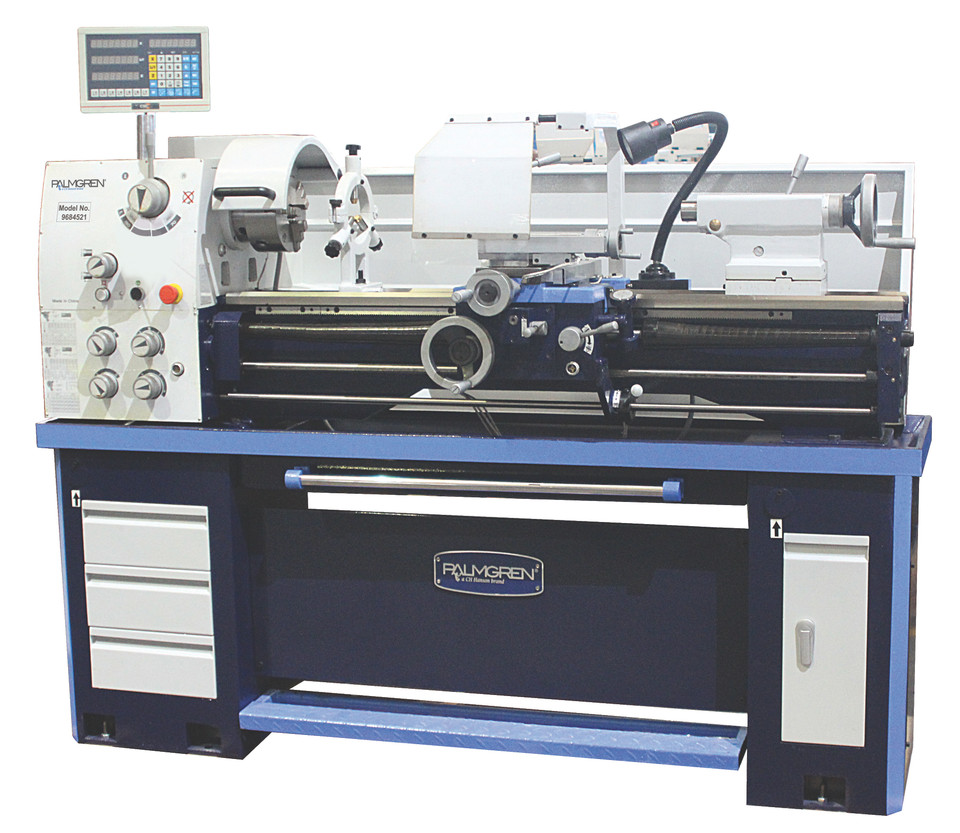

Palmgren 9684551 14" x 40" Engine Lathe With 2" Bore | 2 HP | 8" Bed Width

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Palmgren

Palmgren 9684551 14" x 40" Engine Lathe With 2" Bore | 2 HP | 8" Bed Width

$21,666.25
SKU:
9684551
Shipping:
Calculated at Checkout
Weight:
1,650.00 LBS
Condition:
New
UPC:
726896845517
Adding to cart… The item has been added
Description


Palmgren 9684551 is a high-performance Engine Lathe designed for precision metalworking in both small and large workshops. Equipped with a robust 2 HP motor and a 2" spindle bore, this lathe offers the power and accuracy required for heavy metal removal and fine tolerance turning operations. Its headstock is designed to provide maximum power for roughing cuts and smooth, quiet power for fine finishing. All the gears are helical precision cut, hardened, and ground, running in a continual bath of oil, ensuring durability and reduced maintenance. The wide bed ways are made of stabilized cast iron, ground and hardened for a lifetime of use. The universal gearbox delivers a broad range of feed and thread selections, and each machine can perform both inch and metric threads.

Type: Engine Lathe | Bed Width (in.): 8 | Coolant Tank Capacity (gal.): 2-39/64 | Cross Feed Rates (in.): 0.0005 - 0.0118 | Cross Slide Travel (in.): 7 | Distance Between Centers (in.): 40 | Frequency (Hz): 60 | Includes: Digital Readout, 4 Jaw Chuck, Splash Guard, Chuck and Tool Post Safety Guard, 4 Way Tool Post, Splash Guard, (2) 3MT Dead Centers, Inch and Metric Gears for Threading, Steady Rest, Follower Rest, Work Light,with DRO & stand | Lathes Type: Bench Top | Longitudinal Feed Rates (in.): 0.0012 - 0.022 | Motor (HP): 2 | Number of Spindle Speeds: 8 -16 | Overall Dimensions (in.): 76 x 30 x 52 | Phase: Three | Spindle Bore (in.): 2 | Spindle Seat: Camlock D1-4 | Spindle Taper: MT-5 | Swing Over Bed (in.): 14 | Swing Over Gap (in.): 20-1/4 | Tailstock Taper: MT-3 | Tailstock Travel (in.): 4-1/2 | Thread Range (in.): 4 - 112 | Thread Range (mm): 0.45 - 7 | Voltage: 230

Features:

  • 3 Axis Sino DRO
  • 3 & 4 Jaw Chucks
  • Splash Guards
  • Chuck and Toolpost Safety Guard
  • (2) MT3 Dead Centers
  • Inch and Metric Gears for Threading
  • Steady Rest
  • Follow Rest
  • Work Light

industrial-tools-parts-breakdown.pngLooking for more information about Palmgren Engine Lathes? Click here to view the Catalog.

Need help selecting the correct Palmgren Engine Lathe for your application? Please call (800) 608-5210 or email info@intlairtool.com

Specifications
Type:
Engine Lathe
Bed Width (in.):
8
Coolant Tank Capacity (gal.):
2-39/64
Cross Feed Rates (in.):
0.0005 - 0.0118
Cross Slide Travel (in.):
7
Distance Between Centers (in.):
40
Frequency (Hz):
60
Includes:
Digital Readout, 4 Jaw Chuck, Splash Guard, Chuck and Tool Post Safety Guard, 4 Way Tool Post, Splash Guard, (2) 3MT Dead Centers, Inch and Metric Gears for Threading, Steady Rest, Follower Rest, Work Light,with DRO & stand
Lathes Type:
Bench Top
Longitudinal Feed Rates (in.):
0.0012 - 0.022
Motor (HP):
2
Number of Spindle Speeds:
8 -16
Overall Dimensions (in.):
76 x 30 x 52
Phase:
Three
Spindle Bore (in.):
2
Spindle Seat:
Camlock D1-4
Spindle Taper:
MT-5
Swing Over Bed (in.):
14
Swing Over Gap (in.):
20-1/4
Tailstock Taper:
MT-3
Tailstock Travel (in.):
4-1/2
Thread Range (in.):
4 - 112
Thread Range (mm):
0.45 - 7
Voltage:
230
Warranty Information
3 Year warranty against defects in materials and workmanship.
