Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Palmgren

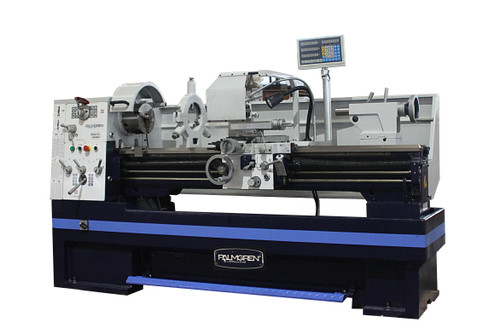

Palmgren 9684550 13" x 40" Gear Head Engine Lathe With 2" Bore | 2 HP | 7-3/8" Bed Width

List Price: $14,834.00
$14,833.75
(You save $0.25 )
SKU:
9684550
Shipping:
Calculated at Checkout
Weight:
1,450.00 LBS
Condition:
New
UPC:
726896845500
Adding to cart… The item has been added
Description


Palmgren 9684550 is a heavy-duty gear head engine lathe designed for precision machining and durability in professional workshops. Powered by a 2 HP motor and featuring a large 2" spindle bore, this lathe is ideal for heavy metal removal and fine tolerance turning jobs. It offers a 13" swing over the bed and a 40" distance between centers to handle sizable workpieces. The 7-3/8" wide bed ensures solid rigidity and stability during operation. With 8 spindle speeds ranging from 70 to 2,000 RPM and an MT6 spindle taper, this machine provides versatility for a wide range of turning applications. Constructed from heavy cast iron, it reduces vibration for improved accuracy and longevity.

Type: Engine Lathe | Bed Width (in.): 7-3/8 | Cross Feed Rates (in.): 0.0005 - 0.015 | Cross Slide Travel (in.): 6-1/3 | Distance Between Centers (in.): 40 | Frequency (Hz): 60 | Includes: Digital Readout, 4 Jaw Chuck, Splash Guard, Chuck and Tool Post Safety Guard, 4 Way Tool Post, Splash Guard, (2) 3MT Dead Centers, Inch and Metric Gears for Threading, Steady Rest, Follower Rest, Work Light,with DRO | Lathes Type: Gear Head | Length Of Gap (in.): 8 | Longitudinal Feed Rates (in.): 0.002 - 0. 055 | Motor (HP): 2 | Number of Spindle Speeds: 8 | Overall Dimensions (in.): 76 x 30 x 58 | Phase: Three | Spindle Bore (in.): 2 | Spindle Taper: MT-6 | Swing Over Bed (in.): 13 | Swing Over Gap (in.): 18-3/4 | Tailstock Taper: MT-3 | Tailstock Travel (in.): 3-15/16 | Thread Range (in.): 4 - 56 | Thread Range (mm): 0.4 - 7 | Voltage: 230/460

Features:

  • Main spindle: Running in an oil quench
  • Main spindle gearwheels: Smooth running, hardened and ground, Enclosed fast acting feed gear
  • Slide: Precisely machined, Top slide rotatable by 360°, Handwheels with adjustable precision scaling of 0 04 / 02mm / 0 002" / 0 0008", 4 position tool post holder, Chip protection at the top slide
  • Tailstock: Adjustable by +/- 10 mm / 0 393" for taper turning, Tailstock spindle sleeve and handwheel with adjustable precision scale of 0 025 mm / 0 010"

industrial-tools-parts-breakdown.pngLooking for more information about Palmgren Engine LathesClick here to view the Catalog.

Need help selecting the correct Palmgren Engine Lathe for your application? Please call (800) 608-5210 or email info@intlairtool.com

Specifications
Type:
Engine Lathe
Bed Width (in.):
7-3/8
Cross Feed Rates (in.):
0.0005 - 0.015
Cross Slide Travel (in.):
6-1/3
Distance Between Centers (in.):
40
Frequency (Hz):
60
Includes:
Digital Readout, 4 Jaw Chuck, Splash Guard, Chuck and Tool Post Safety Guard, 4 Way Tool Post, Splash Guard, (2) 3MT Dead Centers, Inch and Metric Gears for Threading, Steady Rest, Follower Rest, Work Light,with DRO
Lathes Type:
Gear Head
Length Of Gap (in.):
8
Longitudinal Feed Rates (in.):
0.002 - 0. 055
Motor (HP):
2
Number of Spindle Speeds:
8
Overall Dimensions (in.):
76 x 30 x 58
Phase:
Three
Spindle Bore (in.):
2
Spindle Taper:
MT-6
Swing Over Bed (in.):
13
Swing Over Gap (in.):
18-3/4
Tailstock Taper:
MT-3
Tailstock Travel (in.):
3-15/16
Thread Range (in.):
4 - 56
Thread Range (mm):
0.4 - 7
Voltage:
230/460
Warranty Information
3 Year warranty against defects in materials and workmanship.
