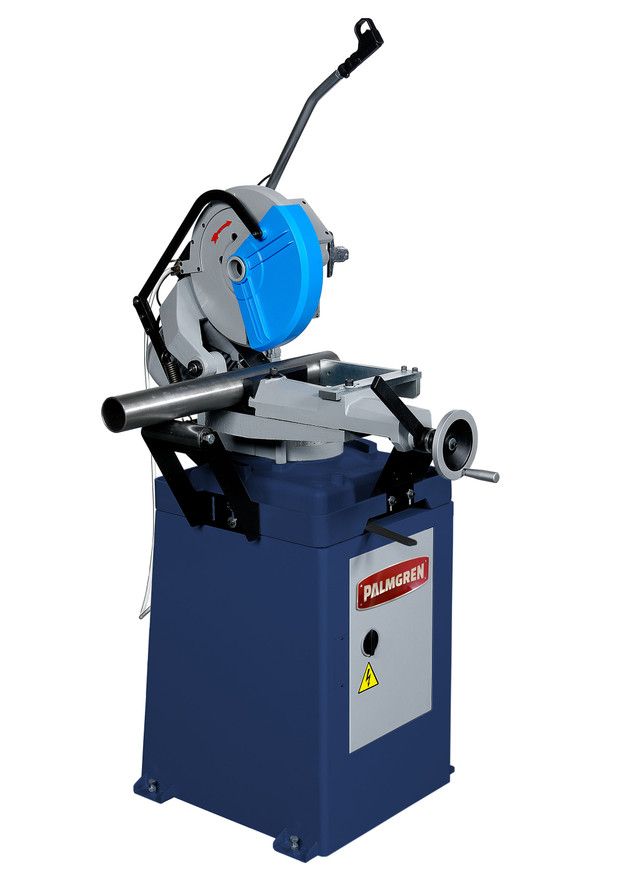

Palmgren 9683154 is a high-performance, single-phase cold saw designed for precise cutting of low and high carbon steels, medium gauge tubes, and profiles. With a 14" blade diameter and a robust 3 HP motor, this saw delivers smooth, burr-free straight or angle cuts consistently, making it ideal for both light and heavy-duty applications. Equipped with a variable speed range of 24–120 RPM, the saw allows for optimal cutting speeds tailored to different materials and thicknesses. The advanced gearbox design utilizes taper roller bearings and hardened, ground gears with a high-quality bronze worm gear in an oil bath, ensuring durability and smooth operation. The rapid-acting, adjustable anti-burr vise securely holds the workpiece, improving accuracy and finish. A flood coolant system is included to reduce heat buildup and extend blade life. The material feed support roller bracket and adjustable work stop enhance cutting efficiency and repeatability.
Type: Cold Saw | Coldand Band Saw Type: Manual | Cutting Angle: 0/45° | Cutting Angle Adjustment: Manual | Feed: Manual | Motor (HP): 3 | Overall Dimensions (in.): 49-1/2 x 40-1/2 x 71-3/4 | Phase: Single | Round Material Max. 45º (in.): 3 | Round Material Max. 0º (in.): 3-5/16 | Saw Blade Diameter (in.): 14 | Sawing Type: Vertical Band Saws | Speed Range (RPM): 24-120 | Square Max. 0º (in.): 4 x 4 | Square Max. 45º (in.): 3-5/16x3-5/16 | Vise Opening (in.): 6-3/4 | Voltage: 230
Features:
- Advanced gear box design utilizing taper roller bearings, hardened and ground gears with a high quality bronze worm gear in an oil bath
- Rapid acting vise, adjustable, anti-burr, allows for secure clamping of the workpiece, improving accuracy and finish
- Flood coolant system
- Material feed support roller bracket and adjustable work stop
- Safety electrical package includes overload & low voltage protection, safety spring loaded 24 volt trigger switch, emergency stop button and two speed motor switch
- Cast iron base mounted to a heavy duty solid steel floor stand
Looking for more information about Palmgren Cold Saws? Click here to view the Catalog.
Need help selecting the correct Palmgren Cold Saw for your application? Please call (800) 608-5210 or email info@intlairtool.com
