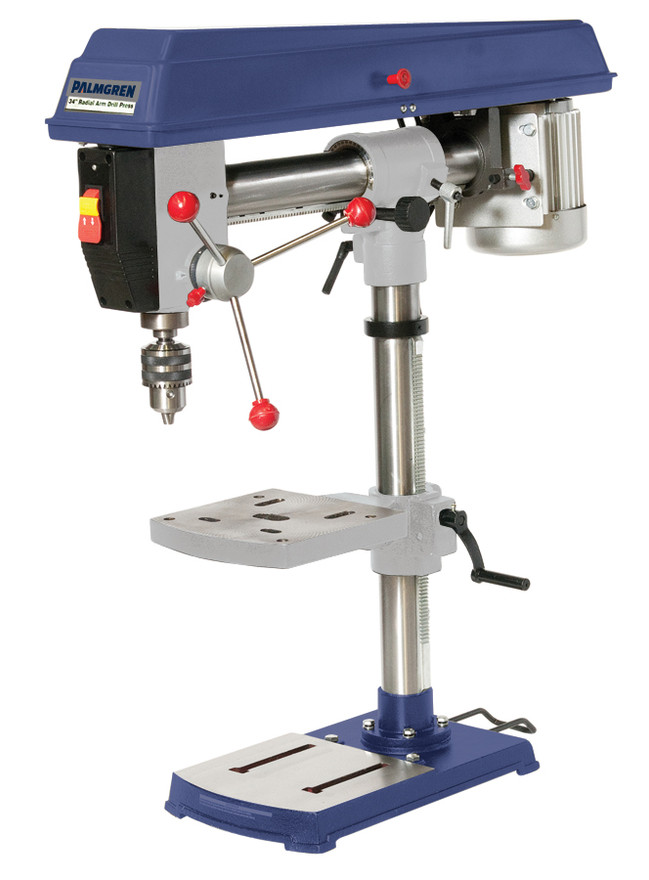

Palmgren 9680341 Benchtop Radial Arm Drill Press combines versatility and power in a compact, space-saving design. With an adjustable swing ranging from 9" to 33", it can easily handle a wide variety of workpiece sizes and drilling positions. Powered by a reliable 1/2 HP motor and equipped with a 5-speed step pulley system, this drill press offers speeds between 600 to 2592 RPM, letting you select the perfect speed for different materials and tasks. The radial arm allows smooth and precise movement of the drill head, providing excellent control for drilling at various angles and positions.
An extended reach, tilting drill head is ideal for large or odd-shaped work pieces. The table tilts 45° left or right allowing easy machining of holes at almost any angle.

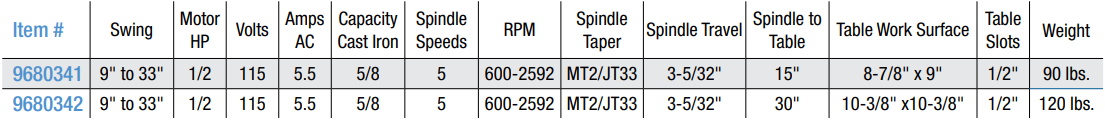

Type: Radial Arm Drill Press | AMPS: 5.5 | Capacity Cast Iron (in.): 5/8 | Drill Press Model: Bench Model | Maximum Spindle to Table (in.): 15 | Motor HP: 1/2 | RPM: 600-2592 | Spindle Taper: MT2/JT33 | Spindle Travel (in.): 3-5/32 | Swing (in.): 9 to 33 | Table Dimensions (in.): 8-7/8 x 9 | Table Slots (in.): 1/2 | Voltage: 115
Features:
- Durable cast iron head, table & base
- Spindle supported by high quality ball bearings
- Rack and pinion table raiser
- Table tilts 45° right & left and swivels 360° around the column
- 1/2" through table & base slots for easy mounting and clamping of workpiece
- Front mounted safety, paddle on/off switch
- Drill chuck & key
- The head tilts 90° left and 45° right
- The head of the drill press moves 12-1/2" forward or backward
Looking for more information about Palmgren Radial Arm Drill Presses? Need help selecting the correct Palmgren Radial Arm Drill Press for your application? Please call (800) 608-5210 or email info@intlairtool.com
