Palmgren

Palmgren 9680216 9-Speed Floor Step Pulley Drill Press | 22" Swing | 230 Voltage | 3 HP

$7,157.33
SKU:
9680216
Shipping:
Calculated at Checkout
Weight:
682.00 LBS
UPC:
726896802169
Adding to cart… The item has been added
Description


Palmgren 9680216 9-Speed Floor Step Pulley Drill Press is a versatile and powerful solution for drilling operations in wood, metal, and plastic. With a 22" swing and a durable 3 HP motor running on standard 230V power, this floor-standing drill press delivers the strength and precision needed for both home workshops and industrial environments. Its 9-speed step pulley system allows you to easily adjust spindle speeds to match different materials and bit sizes, giving you greater control over your work. The heavy-duty cast iron construction ensures vibration-free performance and long-lasting durability, while the adjustable worktable with rack and pinion height control adds flexibility and convenience during operation.

Type: Floor Step Pulley Drill Press | Column Diameter (in.): 4.528 | Max. Distance Spindle Base (in.): 50.197 | Max. Distance Spindle Table (in.): 31.102 | Drill Press Model: Floor Model | Drill Press Type: Step Pulley | Motor HP: 3 | Phase: Three | Spindle Taper: MT4/JT3 | Swing (in.): 22 | Table Dimensions (in.): 16.535 x 15.748 | Voltage: 230

Features:

  • Built in halogen work light
  • Forward & reverse switch
  • Drill depth stop
  • Digital depth gauge
  • Digital speed display
  • T-slotted table and base Interlocking spindle safety guard
  • Electric interlock on the pulley cover
  • Magnetic overload protection
  • Built in tool ejector
  • Chuck and arbor

industrial-tools-parts-breakdown.pngLooking for more information about Palmgren Floor Drill PressesClick here to view the Catalog.

Need help selecting the correct Palmgren Floor Drill Press for your application? Please call (800) 608-5210 or email info@intlairtool.com

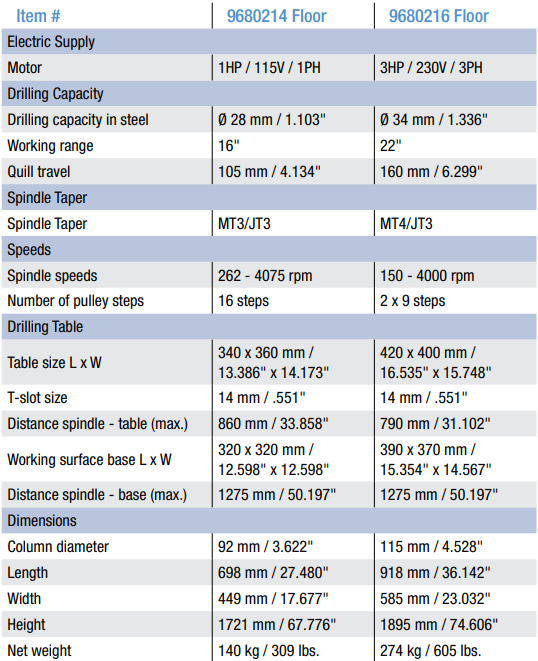

Specifications
Type:
Floor Step Pulley Drill Press
Column Diameter (in.):
4.528
Max. Distance Spindle Base (in.):
50.197
Max. Distance Spindle Table (in.):
31.102
Drill Press Model:
Floor Model
Drill Press Type:
Step Pulley
Motor HP:
3
Phase:
Three
Spindle Taper:
MT4/JT3
Swing (in.):
22
Table Dimensions (in.):
16.535 x 15.748
Voltage:
230
Warranty Information
3 Year warranty against defects in materials and workmanship.
