Palmgren's step pulley drill presses are substantially constructed to provide a solid base for all your drilling operations, and offer a greater range of spindle speeds than any others in their class. They have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications.
Palmgren 9680178 16-Speed Floor Drill Press is a powerful and versatile machine built for precision and performance. With a 17" swing and a 1 HP motor, it’s designed to handle a wide range of drilling tasks—from light-duty work to more demanding jobs in wood, metal, and plastics. This drill press features a 16-speed step pulley system, offering a wide RPM range from 138 to 3476. Whether you're working with soft materials or tougher metals, you can easily adjust the speed to match your project needs. The floor-standing design provides added stability and capacity for larger workpieces.

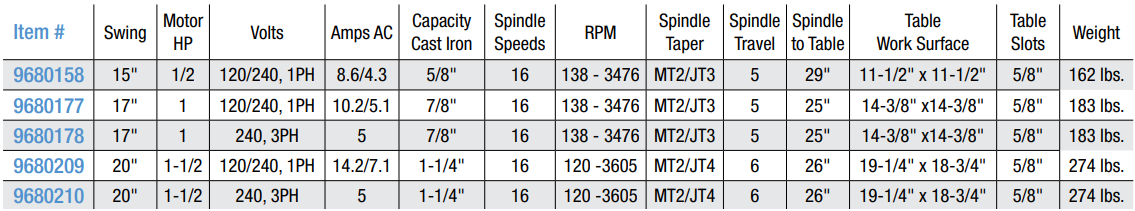

Type: Floor Step Pulley Drill Press | AMPS: 5 | Capacity Cast Iron (in.): 7/8 | Drill Press Model: Floor Model | Drill Press Type: Step Pulley | Maximum Spindle to Table (in.): 25 | Motor HP: 1 | Overall Dimensions (in.): 68 x 15-1/2 x 28 | Phase: Three | RPM: 138-3476 | Spindle Taper: MT2/JT3 | Spindle Travel (in.): 5 | Swing (in.): 17 | Table Dimensions (in.): 14-3/8 x14-3/8 | Table Slots (in.): 5/8 | Voltage: 240
Features:
- Fully enclosed spindle with spaced bearings for maximum spindle support and accurate drilling operations
- Maximum spindle run out of 0 0005"
- Extended quill/spindle travel ideal for deep hole applications
- LED readout for spindle speeds
- Quick change vertical depth stop for accurate, repeatable feed length
- Includes chuck with key and arbor
- Rack and pinion table raiser
- Table tilts 45 degrees right and left and rotates 360 degrees around the column
- Front mounted industrial paddle type power switch
Looking for more information about Palmgren Floor Drill Presses? Click here to view the Catalog.
Need help selecting the correct Palmgren Floor Drill Press for your application? Please call (800) 608-5210 or email info@intlairtool.com
